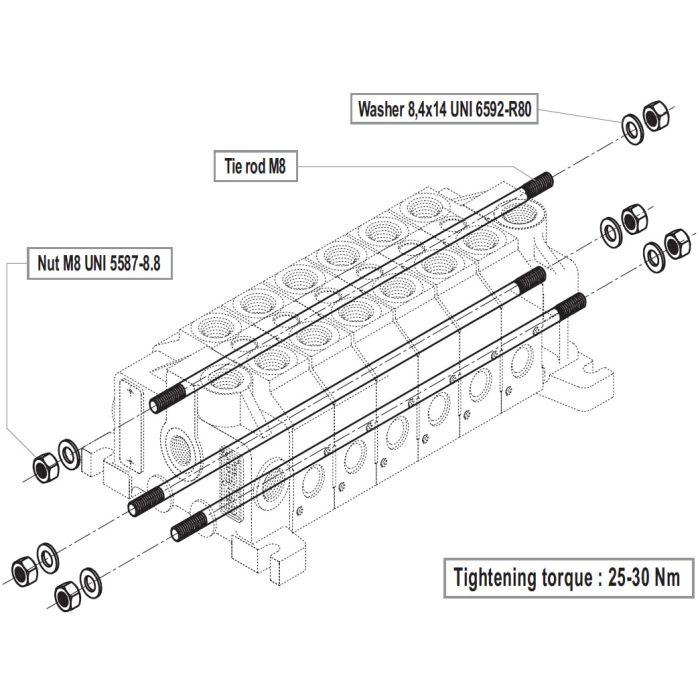

VD6A Series Kit for 6-section valve assembly

Designed for multi-function hydraulic control applications, the VD6A Series Kit for 6-section valve assembly from Salami Hydraulics supports up to eight work sections in parallel, series, or tandem circuit configurations. Each section includes load check valve protection, and the assembly accommodates open and closed center arrangements with Power Beyond options.

Cast-iron bodies provide durable construction, while hardened steel, nickel-plated spools deliver reliable performance across a wide spool selection, including double acting, single acting, motor, cylinder, and float configurations. Spools are interchangeable, and auxiliary valves are available for ports A and B. Control options span manual, cable, electric, electro-hydraulic, proportional hydraulic, pneumatic, proportional pneumatic, and electro-pneumatic. Rated to 5,100 PSI on ports P, A, and B with a 12 GPM flow rating, this kit operates across a fluid temperature range of -4°F to 185°F with standard NBR seals and suits fluid viscosities from 10 cSt minimum up to 400 cSt maximum.

SKU: R23400660

Supplier Part Number (MPN): R23400660

Alternate Part Numbers: C1MU27
