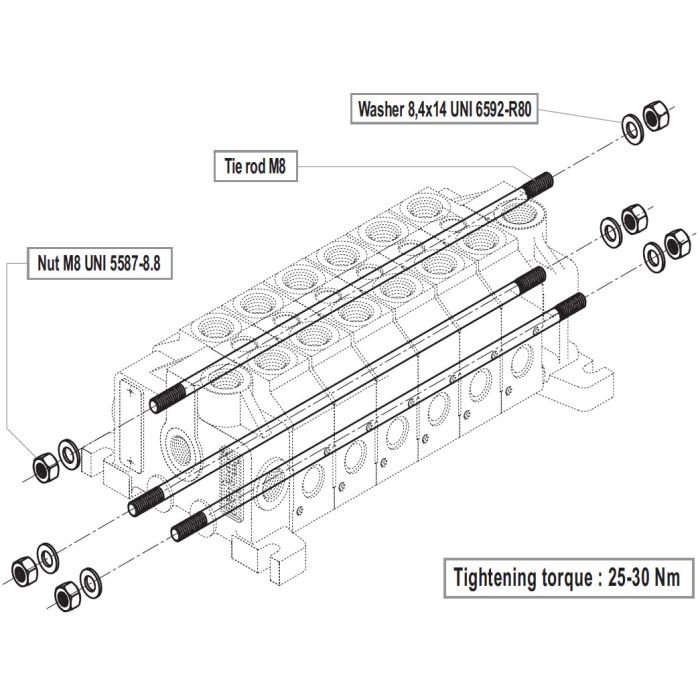

VD6A Series Kit for 9-section valve assembly

The VD6A Series Kit for 9-section valve assembly from Salami S.P.A features cast-iron bodies and handles flow up to 12 GPM. It is designed for use with up to 8 work sections and offers parallel, series, and tandem circuits with load check valve protection on each section.

This VD6A Series Assembly Kit offers open and closed center operation with power beyond options. The hardened steel spools are nickel-plated and interchangeable, with spool selections including double acting, single acting, motor, cylinder, and float. Auxiliary valves are available for ports A and B, along with several types of mid-inlet modules and a venting valve. Available controls include manual, cable, electric, electro-hydraulic, proportional hydraulic, pneumatic, and electro-pneumatic.

It is designed for optimal fluid viscosity between 12 cSt to 75 cSt, with a minimum of 10 cSt and a maximum of 400 cSt. The valve assembly tolerates fluid temperatures from -4°F to 185°F with standard NBR seals, and ambient temperatures ranging from -22°F to 140°F.

SKU: R23400690

Supplier Part Number (MPN): R23400690

Alternate Part Numbers: C1MU30
