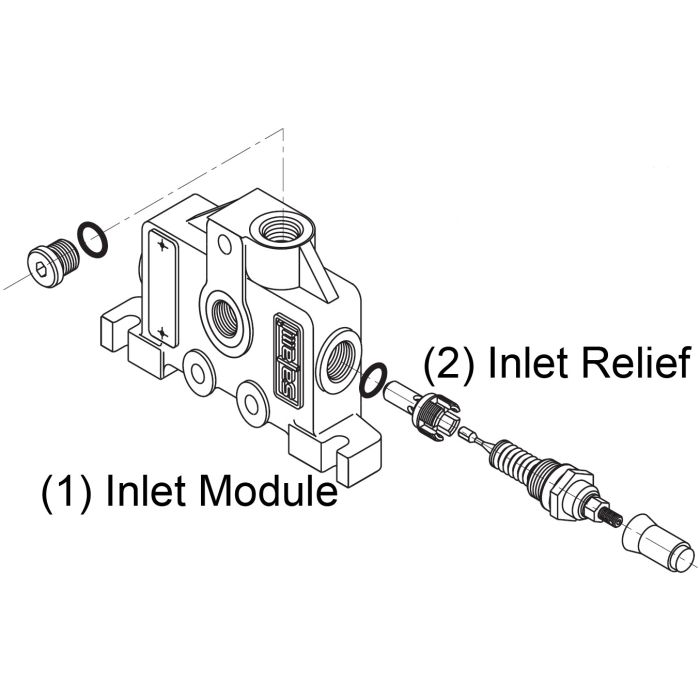

Inlet relief (3205 PSI - 4785 PSI)

Optimize hydraulic systems with the VD6A Series Inlet Module, designed to sustain pressures between 3205 PSI and 4785 PSI. This robust inlet relief valve features cast-iron bodies and supports up to eight work sections with parallel, series, and tandem circuits. Each section is equipped with a load check valve for enhanced safety and performance. The module operates efficiently across a fluid viscosity range of 12 cSt to 75 cSt, with a maximum back pressure of 363 PSI on the outlet port.

Engineered for durability, the VD6A Series includes interchangeable spools made from hardened steel, nickel-plated for extended lifespan. It offers versatile control options such as manual, cable, electric, electro-hydraulic, proportional hydraulic, pneumatic, and electro-pneumatic. Suitable for various applications, it operates effectively within ambient temperatures from -22°F to 140°F and fluid temperatures from -4°F to 185°F using standard NBR seals.

SKU: R20270460

Supplier Part Number (MPN): R20270460

Alternate Part Numbers: C1MT39
