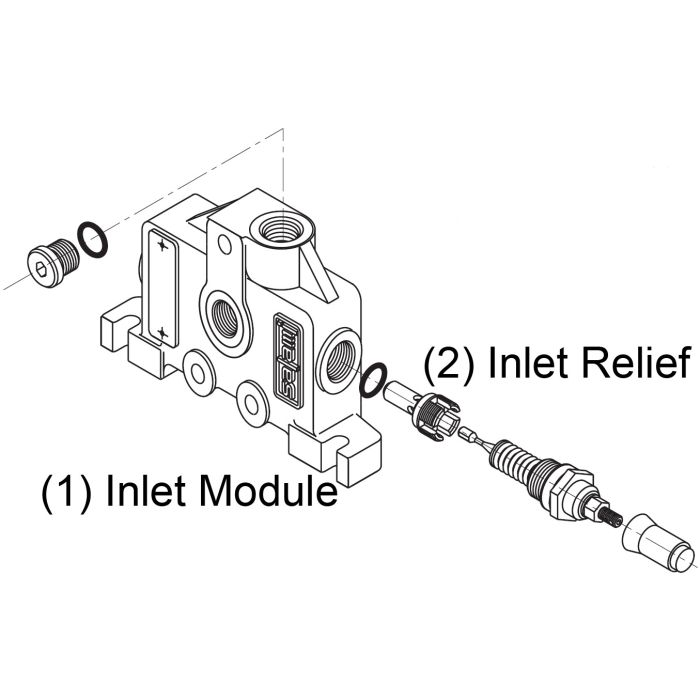

Inlet relief (4360 PSI - 5435 PSI)

Designed for use in the Salami VD6A Series directional control valve platform, this Inlet relief (4360 PSI - 5435 PSI) provides pressure relief protection at the inlet module with a rated operating range suited to demanding mobile and industrial hydraulic circuits. Maximum operating pressure reaches 5100 PSI on ports P, A, and B, with a maximum back pressure of 363 PSI on the outlet port.

The VD6A Series supports up to eight work sections and accommodates parallel, series, and tandem circuit configurations, with load check valve protection on each section. Cast-iron bodies and hardened, nickel-plated steel spools contribute to durability across a fluid temperature range of -4°F to 185°F with standard NBR seals. Flow rating is 12 GPM, and the system accepts fluid viscosity from 10 cSt minimum up to 400 cSt maximum. Control options include manual, cable, electric, electro-hydraulic, proportional hydraulic, pneumatic, and electro-pneumatic configurations. Recommended filtration is ISO 4406: 19/16.

SKU: R20270463

Supplier Part Number (MPN): R20270463

Alternate Part Numbers: C1MT40
