Salami VD6A-02D-175S/ Inlet SAE 10

Description & Features

Featuring a robust cast-iron body and a maximum operating pressure of 5100 PSI this hydraulic valve is designed for demanding industrial applications. The fluid temperature range is from -4deg;F to 185deg;F with standard NBR seals making it versatile in various conditions. The Salami VD6A-02D-175S/ Inlet SAE 10 offers multiple control options including manual electric and proportional pneumatic among others.

The valve supports a flow rating of up to 12 GPM and maintains low internal leakage between 1.1 and 1.52 insup3;/min at 2285 PSI. Interchangeable spools made of hardened steel and nickel-plated ensure durability and flexibility with selections for double acting single acting motor cylinder and float. It includes parallel series and tandem circuits with load check valve protection on each section.

Additionally auxiliary valves are available for ports A and B and several types of mid-inlet modules can be integrated. The ambient temperature range of operation extends from -22deg;F to 140deg;F. This product ensures efficient hydraulic performance with a recommended filtration level of ISO 4406: 19/16. Venting valves are also available enhancing its functionality.

MPN: R23470090

Supplier Part Number: R23470090

Specifications

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number R23470090	Alternate Part Numbers Alternate Part Number C1MU32	Product Weight 4.39 lbs

Similar Products

Model Number	Key	Product Description	Price	Action

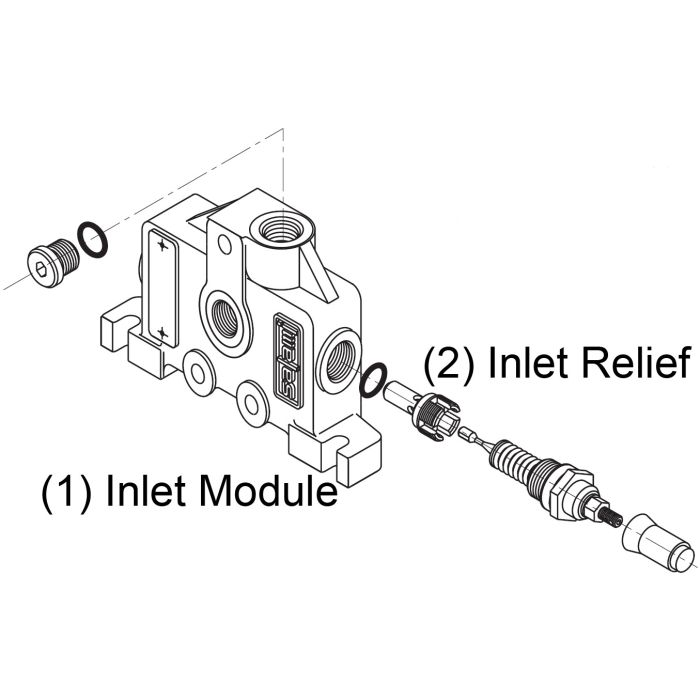

R23470090 VD6A Series Inlet Module	(1)	SALAMI VD6A-02D-175S/ INLET SAE 10.

Product Questions & Answers (2)

Question by: Wes F on Apr 20, 2025, 9:10 PM

got a system that’ll see around 4500 psi on the regular. is this inlet module ok with that kind of pressure?

Answer by: Customer Support on Apr 22, 2025, 6:20 AM

Pressure-wise you are in range since the maximum operating pressure is 5100 PSI on ports P, A, and B. Keep in mind the outlet port T has a maximum back pressure limit of 363 PSI, so the return side needs to stay under that.

Question by: Clint E on Dec 18, 2025, 8:01 PM

What kind of fluid works best in this valve?

Answer by: Customer Support on Dec 20, 2025, 10:01 AM

Optimal performance is achieved using a mineral oil with a viscosity between 12 cSt and 75 cSt, and a contamination level of 19/16 per ISO 4406. The valve can handle fluid viscosities from 10 cSt to 400 cSt.
