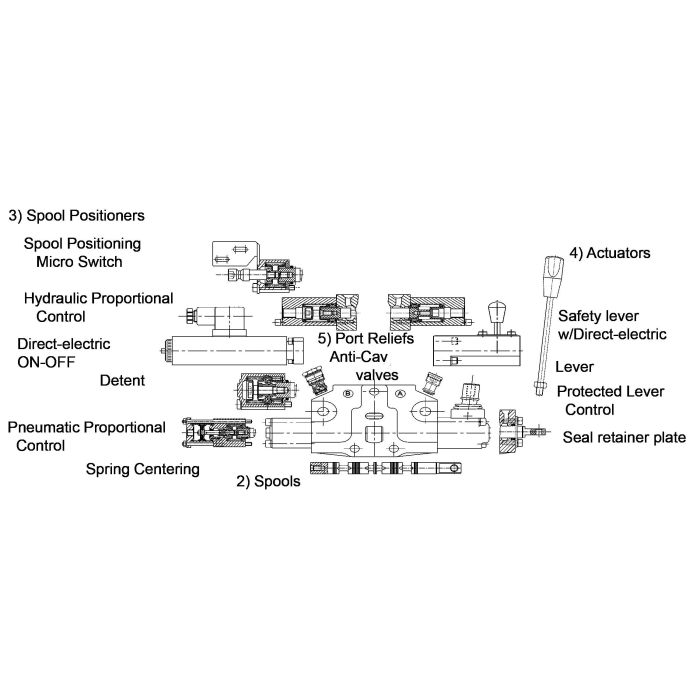

main product photo

Salami VDM6/VD6 E9 45W 12V

Ask A Question

Description & Features

Cast-iron construction and a hardened, nickel-plated steel spool design make this directional control valve well-suited for demanding mobile and industrial hydraulic circuits. The Salami VDM6/VD6 E9 45W 12V supports up to 8 work sections and accommodates parallel, series, and tandem circuit configurations, each with load check valve protection. Open and closed center options are available, along with power beyond capability. The 12V electric actuator is rated at 45W and operates across an ambient temperature range of -22°F to 140°F.

Rated for a maximum operating pressure of 5,100 PSI on ports P, A, and B, with a maximum back pressure of 363 PSI on outlet port T, and a flow rating of 12 GPM. Compatible fluid viscosity ranges from 10 cSt minimum to 400 cSt maximum, with an optimal range of 12–75 cSt. Standard NBR seals support fluid temperatures from -4°F to 185°F. Recommended filtration is ISO 4406: 19/16. Multiple spool types are available, including double acting, single acting, motor, float, and cylinder configurations.

SKU: 796332555

Supplier Part Number (MPN): 796332555

Alternate Part Numbers: 233833208 M00, C1MS19

Specifications

Brand
Salami
Key
B side actuator
Sg Fluid Viscosity
12 cSt to 75 cSt Optimal, 10 cSt Minimum, 400 cSt Maximum
Sg Internal Leakage
1.1 to 1.52 cu-in/min at 2285 psi
Sg Maximum Back Pressure
363 psi on Outlet Port T
Sg Recommended Filtration
19/16 um
Specifications
45 W Power Rating
Suitable For Use With
VD6A E9 Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 E9 Series Monoblock Directional Valves

Similar Products

Model Number Flow Rate Suitable For Use With Price Action
Spool positioning with microswitch, conversion from (CE) to (CM), IP65.

R20288881 VD6A Series Working Section

VD6A and VD8A Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 and VDM8 Series Monoblock Directional Valves

Salami LEVER STICK KNOB And KNOB Kit

420192000 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 Series Monoblock Directional Valves

Working section (P12A-PRA.PRB-NLA-F2), parallel circuit, 4-way 4-pos. A & B closed in neutral, spring centered to neutral, float detent (3), standard protected lever control (4), aux. valve plugs (5). SAE-8 work ports. Does NOT include M8 threaded handle.

S23480270 VD6A Series Working Section

Port relief (VA), adjustable 1900 PSI to 2970 PSI

R25000631 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves

Spool seal retainer plate (SL)

R23400050 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 Series Monoblock Directional Valves

Working section (T01A-PRA.PRB-NLA-C2), tandem circuit, 4-way 3-pos. A & B closed in neutral,spring centered to neutral (3), standard protected lever control (4), aux. valve plugs (5). SAE-8 work ports. Does NOT include M8 threaded handle.

S23480580 VD6A Series Working Section

Working section (P02A-PRA.PRB-ESA-E7B), parallel circuit, 4-way 3-pos. A&B to tank in neutral, spring centered direct-electric ON-OFF control 12VDC (3), safety lever (4), aux. valve plugs (5). SAE-8 work ports.

S23480761 VD6A Series Working Section

Electric kit with safety lever, 12 VDC direct acting, 3-position (02A-ESA-E7)

R23101053 VD6A Series Working Section

VDM6 Series 12 VDC Direct-Acting 3-Position Motor Spool Monoblock Directional Valves

Salami VDM6/VD6A R9 DETENT Kit

R23400321 VD6A Series Working Section

VD6A R9 Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 R9 Series Monoblock Directional Valves

Port relief (VA), adjustable 1030 PSI to 1885 PSI

R25000621 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves

Work section side seal kit.

R23400200 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves

Port relief (VA), adjustable 2980 PSI to 4785 PSI

R25000641 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves

SALAMI VD6A-P02A-PRA.PRB-NLA-C2/S PARALL

S23480550 VD6A Series Working Section

Spool positioning for micro switch (CE). Pre-arrangement for electrical device.

R23402000 VD6A Series Working Section

VDM6 Series Monoblock Directional Valves

Port valve plug (PRA-B).

R23400500 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves

Cable control actuator (TC)

R360T0600 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves

Salami LEVER STICK POSITIONING Kit. PR

R23400060 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 Series Monoblock Directional Valves

SALAMI R5 DETENT KIT

R23400250 VD6A Series Working Section

VD6A R5 Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 R5 Series Monoblock Directional Valves

Salami CO FRICTION Kit

R23400322 VD6A Series Working Section

VD6A C0 Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 C0 Series Monoblock Directional Valves

Cross lever for 2 spools

R23400033 VD6A Series Working Section

VD6A Series 2-Spool L1 to L2 Fulcrum on Up-Stream Spool Hydraulic Proportional (IP) Control Directional Valves

Electric kit safety lever, 12 VDC direct acting, 3-position cylinder spool (01A-ESA-E7)

R23101031 VD6A Series Working Section

VDM6 Series 12 VDC Direct-Acting 3-Position Cylinder Spool Monoblock Directional Valves

Cross lever for 2 spools

R23400036 VD6A Series Working Section

VD6A Series 2-Spool Double-Acting Spool and Float Spool Hydraulic Proportional (IP) Control Directional Valves

Detent (R4) on position 1, spring return in neutral.

R23400280 VD6A Series Working Section

VD6A R4 Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 R4 Series Monoblock Directional Valves

Working section (S01A-PRA.PRB-NLA-C2), series circuit, 4-way 3-pos. A & B closed in neutral,spring centered to neutral (3), standard protected lever control (4), aux. valve plugs (5). SAE-8 work ports. Does NOT include M8 threaded handle.

S23480480 VD6A Series Working Section

Hydraulic proportional control kit (IP).

R23100080 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 Series Monoblock Directional Valves

SALAMI VD6A-P01A-PRA.PRB-ESA-E7B/S ELECT

S23480542 VD6A Series Working Section

SALAMI VD6A-P01A-PRA.PRB-NLA-C2/S PARALL

S23480070 VD6A Series Working Section

Salami VDM6/VD6 02A M Spool

323411302 VD6A Series Working Section

VD6A 02A Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 02A Series Monoblock Directional Valves

Salami R2 DETENT Kit

R23400320 VD6A Series Working Section

VD6A R2 Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 R2 Series Monoblock Directional Valves

Pneumatic proportional control kit (PP).

R23400100 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves, VDM6 Series Monoblock Directional Valves

Anti-cavitation port valve (VR).

R23400550 VD6A Series Working Section

VD6A Series Hydraulic Proportional (IP) Control Directional Valves

9. Relief Valve Cartridge (725 PSI) for Internal By-Pass Relief Valve Option (2 ea.)

R25000611 Internal Relief Valve Cartridge

VD6A Series Hydraulic Proportional (IP) Control Directional Valves

Product Questions & Answers (1)

Question by: Keith K on Apr 26, 2025, 12:34 PM
Will this run okay in hot weather? Gotta make sure it can handle a summer's day.
Answer by: Customer Support on Apr 28, 2025, 7:11 AM
Ambient temperatures from -22°F to 140°F are fine for this Salami VDM6/VD6 E9. It can also handle fluid temps between -4°F and 185°F, using standard NBR seals.
