Electric kit safety lever, 12 VDC direct acting, 3-position cylinder spool (01A-ESA-E7)

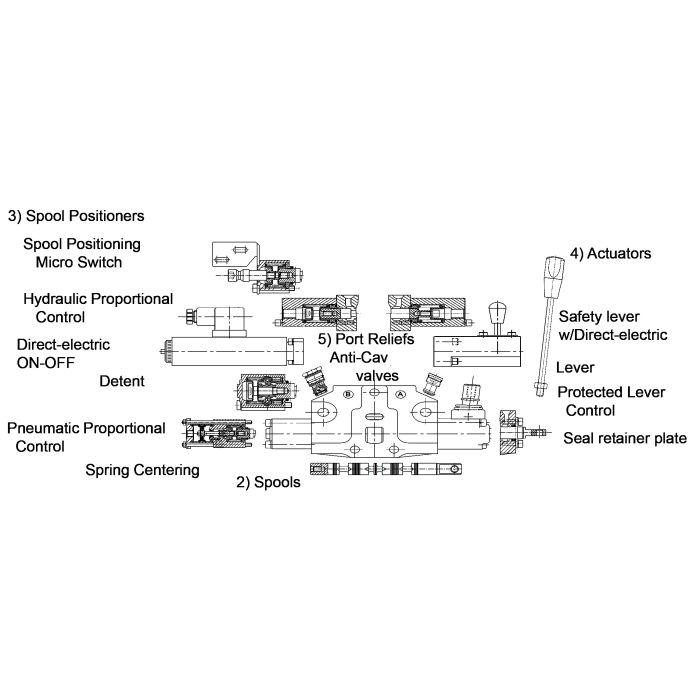

Designed for high-performance industrial applications, the Electric Kit Safety Lever offers a robust 12 VDC direct acting mechanism with a 3-position cylinder spool. Part of the Salami VD6A Series, this component is engineered for versatility and reliability, featuring cast-iron bodies and hardened steel, nickel-plated spools. It supports up to 8 work sections and provides multiple circuit configurations, including parallel, series, and tandem options with load check valve protection for enhanced safety.

The lever accommodates a wide fluid temperature range from -4°F to 185°F with standard NBR seals and maintains optimal fluid viscosity between 12 cSt to 75 cSt. With a maximum operating pressure of 5100 PSI on ports P, A, and B, and a maximum back pressure of 363 PSI, it ensures efficient performance under demanding conditions. Additional features include interchangeable spools and auxiliary valves for ports A and B, offering flexibility in various industrial settings.

SKU: R23101031

Supplier Part Number (MPN): R23101031

Alternate Part Numbers: C1MT88
