Pneumatic proportional control kit (PP).

This pneumatic proportional control kit (PP) is part of the Salami VD6A Series, designed for precise pneumatic control in hydraulic applications.

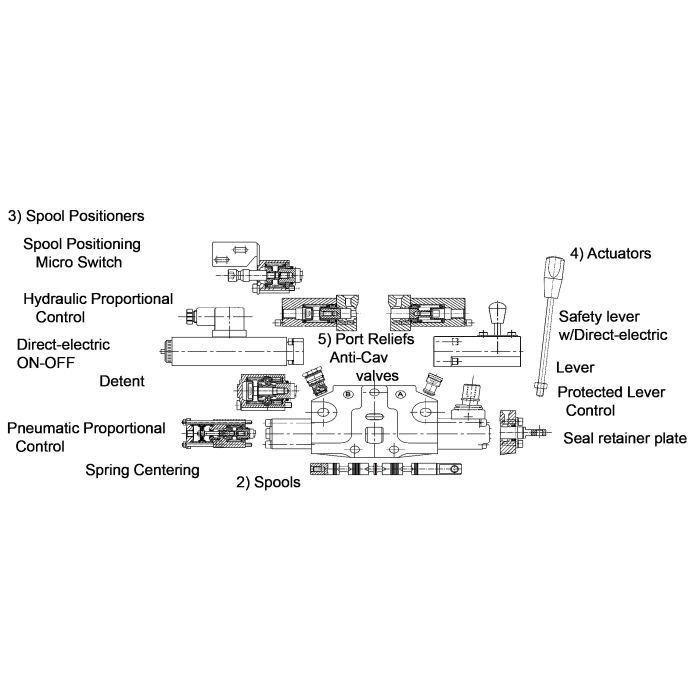

Features include cast-iron bodies, acceptance of up to 8 work sections, and parallel, series, and tandem circuits with load check valve protection on each section. It supports both open and closed center configurations, with power beyond options. The spools are constructed from hardened steel with nickel plating and are interchangeable, with options for double acting, single acting, motor, cylinder, and float applications. Auxiliary valves are available for ports A and B, and the kit includes several types of mid-inlet modules and a venting valve. Available controls include manual, cable, electric, electro-hydraulic, proportional hydraulic, pneumatic, proportional pneumatic, and electro-pneumatic.

This unit has a 12 GPM flow rating. It is designed to work within a fluid temperature range of -4°F to 185°F using standard NBR seals, and an ambient temperature range of -22°F to 140°F. It is optimized for fluid viscosity between 12 cSt to 75 cSt, with a minimum of 10 cSt and a maximum of 400 cSt. The maximum operating pressure is 5100 PSI on ports P, A, and B, with a maximum back pressure of 363 PSI on outlet port T.

SKU: R23400100

Supplier Part Number (MPN): R23400100

Alternate Part Numbers: C1MU13
