Salami VDM6/VD6 Spool Seal Kit

Description & Features

The Salami VDM6/VD6 Spool Seal Kit is designed for robust industrial applications. Crafted by Salami S.p.A this kit includes cast-iron bodies and hardened steel nickel-plated spools for durability. It supports up to 8 work sections and offers Parallel Series and Tandem circuits each with Load Check valve protection. Both Open and Closed center configurations with Power Beyond options are available.

Fluid temperature ranges from -4deg;F to 185deg;F and the maximum operating pressure reaches 5100 PSI on ports P A and B. The ambient temperature range is -22deg;F to 140deg;F optimized for various industrial environments.

Additional features include interchangeable spools several types of Mid-Inlet modules and auxiliary valves for ports A and B. Controls available range from manual to electro-pneumatic.

Internal leakage measures 1.1 - 1.52 insup3;/min. at 2285 PSI and the maximum back pressure is 363 PSI on outlet port T. Note that all technical data is determined using mineral oil with a viscosity of 16 cSt and contamination level 19/16 as per ISO 4406.

Fluid viscosity ranges from 12 cSt to 75 cSt with a minimum of 10 cSt and a maximum of 400 cSt. Recommended filtration is ISO 4406: 19/16.

MPN: C1MU15

Supplier Part Number: R23400210

Specifications

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Key Spool	Supplier Part Number R23400210	Alternate Part Numbers Alternate Part Number C1MU15	Product Weight 0.05 lbs

Similar Products

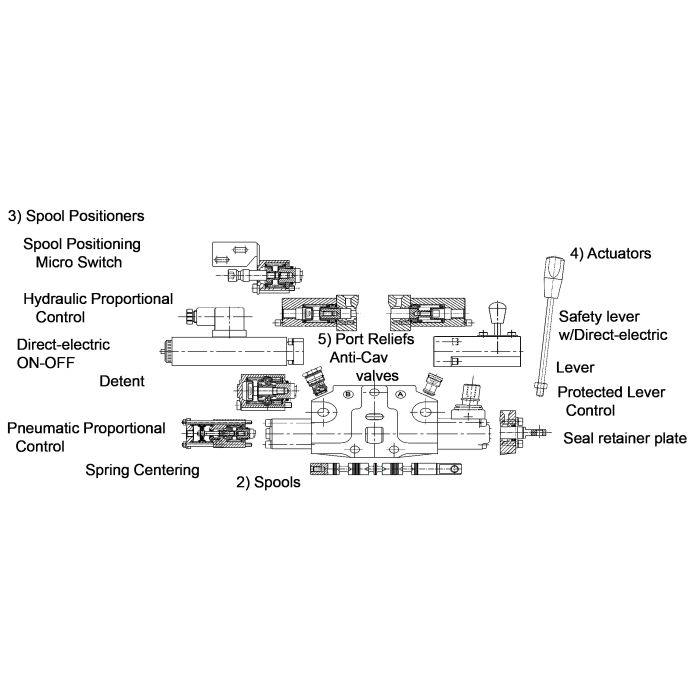

Model Number	Key	Product Description
323411302 VD6A Series Working Section	(2)	SALAMI VDM6/VD6 02A M SPOOL.
R23400322 VD6A Series Working Section	(3)	SALAMI CO FRICTION KIT.
420192000 VD6A Series Working Section	A side actuator	SALAMI LEVER STICK KNOB AND KNOB KIT.
796332555 VD6A Series Working Section	B side actuator	SALAMI VDM6/VD6 E9 45W 12V.
R23400060 VD6A Series Working Section	(4)	SALAMI LEVER STICK POSITIONING KIT. PR.
R23400210 VD6A Series Working Section	Spool	SALAMI VDM6/VD6 SPOOL SEAL KIT.
R23400320 VD6A Series Working Section	(3)	SALAMI R2 DETENT KIT.
R23400321 VD6A Series Working Section	B side actuator	SALAMI VDM6/VD6A R9 DETENT KIT.
S23480070 VD6A Series Working Section	(1)	SALAMI VD6A-P01A-PRA.PRB-NLA-C2/S PARALL.
S23480550 VD6A Series Working Section	(1)	SALAMI VD6A-P02A-PRA.PRB-NLA-C2/S PARALL.

Product Questions & Answers (3)

Question by: Brent R on Feb 16, 2026, 6:22 AM

Will this kit work for either the VDM6 or VD6 models?

Answer by: Customer Support on Feb 18, 2026, 6:27 AM

This Salami VDM6/VD6 Spool Seal Kit is indeed compatible with both the VDM6 and VD6 valve series. It's designed as a direct replacement part to restore sealing performance in either model.

Question by: Dean R on Jan 30, 2026, 6:51 PM

got a VD6A valve bank with a couple sections, is this seal kit the right one for the VDM6 or VD6 spools

Answer by: Customer Support on Feb 1, 2026, 12:37 PM

Fit wise, the kit is identified as a Salami VDM6/VD6 spool seal kit for the VD6A series working section, with catalog number C1MU15 and supplier part number R23400210.

Question by: Jerry P on Apr 11, 2025, 10:15 AM

these seal kits, do they hold up when the fluid temps swing pretty wide out in the field?

Answer by: Customer Support on Apr 13, 2025, 6:13 AM

Standard NBR seals in this kit are rated for fluid temperatures between -4°F and 185°F, so you've got a solid working range for most real-world conditions. Ambient temps are covered from -22°F up to 140°F as well. As long as you're running mineral oil and keeping viscosity between 10 cSt on the low end and 400 cSt on the high end, the seals are built to handle the variation without giving you trouble.
