Detent (R4) on position 1, spring return in neutral.

Part of the Salami Hydraulics VD6A Series, this working section is configured with a Detent (R4) on position 1, spring return in neutral, suitable for applications requiring a held position on one side with automatic return to center. The cast-iron body supports maximum operating pressures up to 5,100 PSI on ports P, A, and B, with a flow rating of 12 GPM and a maximum back pressure of 363 PSI on the outlet port T.

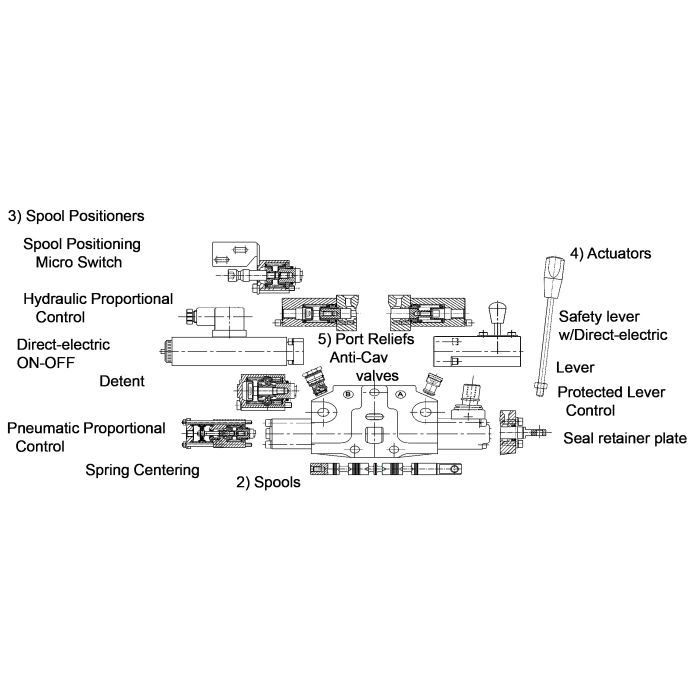

The VD6A Series accommodates up to eight work sections and supports parallel, series, and tandem circuit configurations, each with load check valve protection. Spools are hardened steel and nickel-plated, with interchangeable options including double acting, single acting, motor, cylinder, float, and more. The B-side actuator supports a broad range of control types, manual, cable, electric, electro-hydraulic, proportional hydraulic, pneumatic, proportional pneumatic, and electro-pneumatic. Fluid temperature range is -4°F to 185°F with standard NBR seals, and optimal viscosity runs 12 to 75 cSt.

SKU: R23400280

Supplier Part Number (MPN): R23400280

Alternate Part Numbers: C1MU17
