Port relief (VA), adjustable 2980 PSI to 4785 PSI

Designed for use as a working section component in the Salami VD6A Series directional control valve, this port relief (VA) provides field-adjustable pressure relief across a range of 2980 PSI to 4785 PSI, with a maximum operating pressure of 5100 PSI on ports P, A, and B. It is suited to hydraulic circuits handling flow up to 12 GPM and is compatible with fluid temperatures from -4°F to 185°F using standard NBR seals.

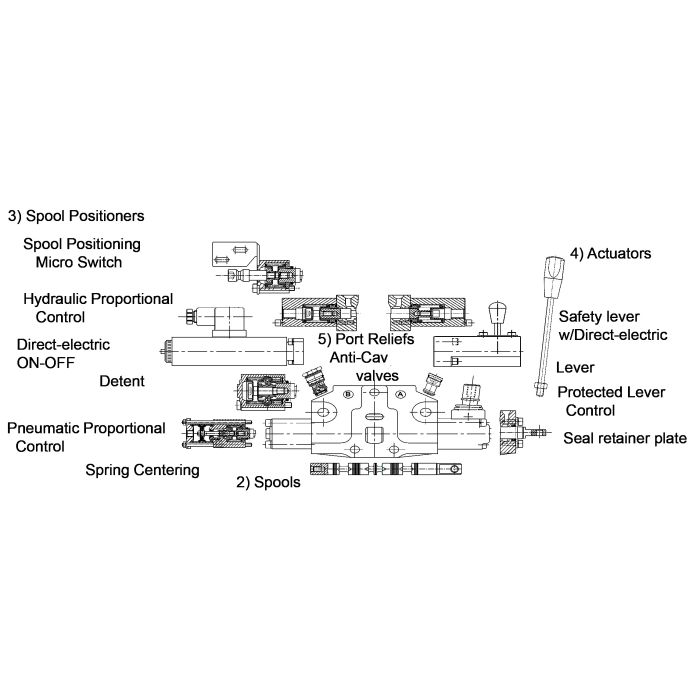

The VD6A Series platform supports up to eight work sections and accommodates parallel, series, and tandem circuit configurations, with load check valve protection on each section. Spools are hardened steel and nickel-plated, with interchangeable designs available in double acting, single acting, motor, cylinder, float, and other configurations. Control options span manual, cable, electric, electro-hydraulic, proportional hydraulic, pneumatic, and electro-pneumatic types. Cast-iron bodies and open or closed center configurations with power beyond options make this series adaptable across a wide range of industrial hydraulic applications. Recommended filtration is ISO 4406: 19/16, with an optimal fluid viscosity range of 12 cSt to 75 cSt.

SKU: R25000641

Supplier Part Number (MPN): R25000641

Alternate Part Numbers: C1MU86
