Cable control actuator (TC)

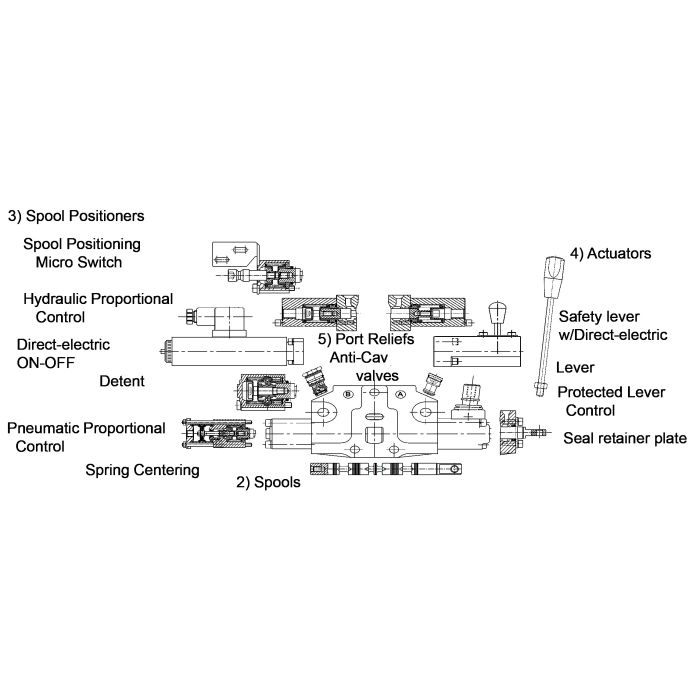

This Cable control actuator (TC) from Salami S.P.A features cast-iron bodies, and can include up to 8 work sections. The VD6A series working section features parallel, series, and tandem circuits with load check valve protection on each section. It features open and closed center with power beyond options, hardened steel and nickel-plated spools, and interchangeable spools.

Spool selections include double acting, single acting, motor, cylinder, and float. Auxiliary valves are available for ports A and B. Several types of mid-inlet modules are available, as well as a venting valve. This cable control actuator can be configured with manual, cable, electric, electro-hydraulic, proportional hydraulic, pneumatic, proportional pneumatic, and electro-pneumatic controls. The recommended filtration is ISO 4406: 19/16. It has a flow rating of 12 GPM, and operates in ambient temperatures from -22°F to 140°F. It is designed for fluid temperatures from -4°F to 185°F using standard NBR seals. It handles a maximum operating pressure of 5100 PSI on ports P, A, and B, and maximum back pressure of 363 PSI on outlet port T. Internal leakage is 1.1 - 1.52 in³/min. at 2285 PSI.

SKU: R360T0600

Supplier Part Number (MPN): R360T0600

Alternate Part Numbers: C1MU93
