SALAMI VD8A/VDM8 VA SETTING (20 TO 70 BA

Description & Features

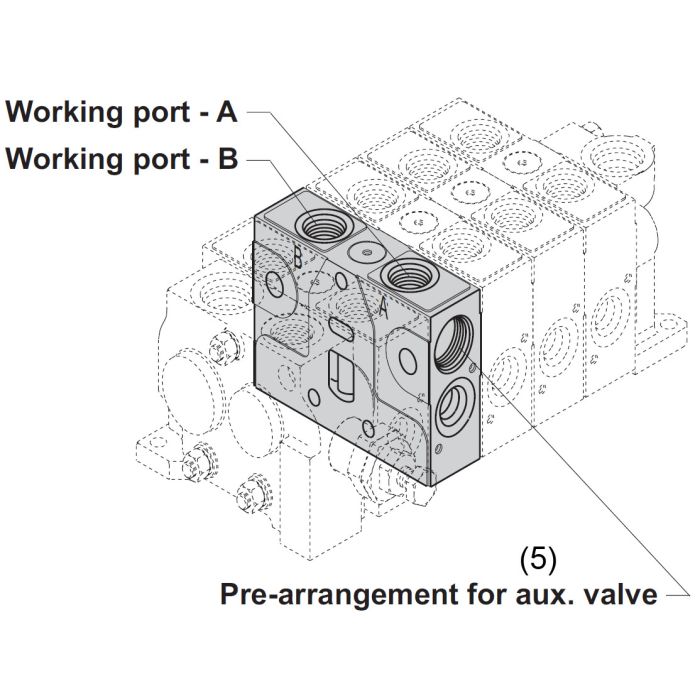

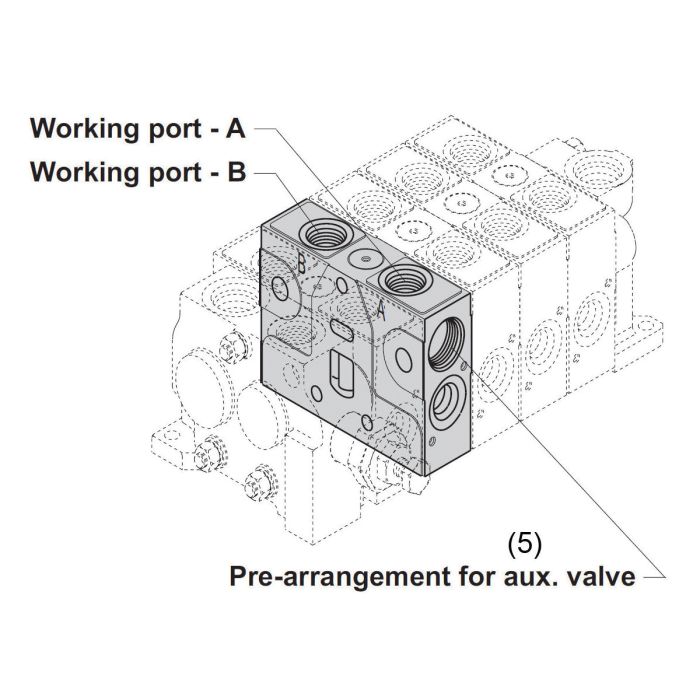

The Salami VD8A Series Working Section offers robust performance with its maximum operating pressure of 5100 PSI on ports "P" "A" and "B" making it suitable for demanding industrial applications. This high-quality product from Salami Hydraulics NA Inc is engineered for reliable operation within an ambient temperature range from 86deg;F to 140deg;F.

Designed with a flow rating of 20 GPM and an acceptable fluid temperature range of -4deg;F to 185deg;F when using standard NBR seals it ensures optimal functionality under various conditions. The fluid viscosity parameters span 12 cSt to 75 cSt for optimal operation with a minimum of 10 cSt and a maximum of 400 cSt.

Featuring an internal leakage rate of 1.52 - 2.13 insup3;/min. at 2285 PSI the Salami VD8A/VDM8 VA Setting is built to maintain efficiency. Additionally it supports a maximum back pressure of 363 PSI on the outlet port T.

Technical data has been tested using mineral oil with viscosity of 16 cSt and contamination level 19/16 as per ISO 4406. To maintain peak performance it is recommended to use filtration standards ISO 4406: 19/16.

Specifications

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Key Main relief	Supplier Part Number 796366200	Alternate Part Numbers Alternate Part Number C1MS22	Product Weight 0.32 lbs

Similar Products

Model Number	Key	Product Description
323511302 VD8A Series Working Section	Spool	SALAMI VDM8/VD8 02A M SPOOL.
420290180 VD8A Series Working Section	A side actuator	SALAMI HANDLEVER. VALVE HANDLE. SHAFT/KN.
796366200 VD8A Series Working Section	Main relief	SALAMI VD8A/VDM8 VA SETTING (20 TO 70 BA.
796366700 VD8A Series Working Section	Main relief	SALAMI VD8A/VDM8 PORT RELIEF AR (0-420 B.
R23500300 VD8A Series Working Section	B	SALAMI R2 DETENT KIT
R23573049 VD8A Series Working Section	Spool	SALAMI VDM8/VD8 02A ELECTRIC KIT ESA WIT.

Product Questions & Answers (2)

Question by: Melvin H on May 20, 2025, 6:02 AM

What kind of oil should I be using in this thing? Gotta keep it running smooth, you know.

Answer by: Customer Support on May 21, 2025, 2:21 PM

To keep this unit running its best, use mineral oil with a viscosity of 16 cSt and a contamination level of 19/16 per ISO 4406. Following the recommended filtration standards ISO 4406: 19/16 will help maintain peak performance.

Question by: Carl T on Sep 1, 2025, 12:28 PM

what's the max pressure this section can handle on the work ports?

Answer by: Customer Support on Sep 2, 2025, 3:49 PM

Ports P, A, and B are all rated to 5100 PSI. The outlet port T has a separate back pressure limit of 363 PSI, so keep that in mind when you're sizing up your return line setup.
