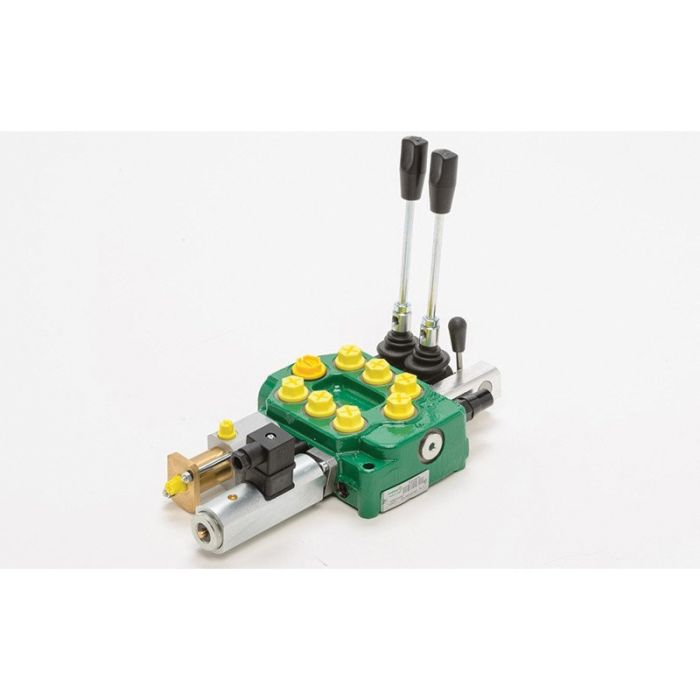

SALAMI VDM6/D/U4S

Description & Features

The Salami VDM6/D/U4S is a versatile monoblock valve featuring a rugged cast-iron construction, ideal for demanding industrial applications. Designed by Salami S.p.A, this valve offers parallel circuit operation with load check valve protection, ensuring reliable performance. With a flow rating of 12 GPM and the ability to handle a maximum operating pressure of 5100 PSI on ports "P", "A", and "B", it meets the needs of high-pressure environments.

Featuring hardened steel, nickel-plated spools, the valve is crafted for superior surface hardness and corrosion resistance. It also includes a variety of spool types and interchangeable spools to minimize internal leakage, ensuring efficient fluid control. The Salami VDM6/D/U4S operates effectively within an ambient temperature range of -22deg;F to 140deg;F and maintains optimal fluid viscosity between 12 to 75 cSt.

Additional features include a tandem circuit available on the first spool of the circuit, a venting valve, and power beyond capabilities. This monoblock valve is also compatible with various spool control and positioning devices. Recommended filtration for this model is ISO 4406: 19/16, maintaining system cleanliness and reliability.

MPN: 623100110

Supplier Part Number: 623100110

Specifications

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Key Valve	Supplier Part Number 623100110	Product Weight 6.24 lbs	Alternate Part Numbers Alternate Part Number C1MR75, Alternate Part Number MI-02206859, Alternate Part Number MINO-00770X30006, Alternate Part Number VDM6/D/U4S

Similar Products

Model Number	Key	Product Description
623100110 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/D/U4S.
623100120 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DD/U4S.
623100140 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDDD/U4S.
623100160 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDDDDD/U4S.
623100130 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDD/U4S VALVE.
623100150 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDDDD/U4S.
623105500 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDDDDDD/U4S.

Product Questions & Answers (4)

Question by: Shawn W on May 9, 2025, 2:30 PM

What kinda filtration this valve need?

Answer by: Customer Support on May 11, 2025, 6:22 AM

Recommended filtration is ISO 4406: 19/16 per the specs.

Question by: Dale C on Mar 26, 2025, 6:45 AM

What's the max pressure this valve can handle on the P, A, and B ports?

Answer by: Customer Support on Mar 28, 2025, 6:46 AM

This valve is rated for a maximum operating pressure of 5100 PSI on ports P, A, and B.

Question by: Neil W on Feb 21, 2026, 2:23 PM

what's the max pressure this valve can handle? running a system that spikes pretty hard and don't want to blow anything out

Answer by: Customer Support on Feb 22, 2026, 6:59 PM

Rated at 5100 PSI on the pressure port and both work ports, so it holds up well under high-demand conditions. That's a solid ceiling for most industrial hydraulic setups pushing hard cycles. Just keep in mind the back pressure limit sits at 363 PSI, so your return line needs to stay well below that threshold.

Question by: Warren M on Nov 23, 2025, 9:51 AM

got a high pressure setup, what’s the max pressure this valve will take on the work ports?

Answer by: Customer Support on Nov 25, 2025, 6:12 AM

Max operating pressure is rated at 5100 PSI on ports P, A, and B, so it is built for high pressure service on both supply and work lines.
