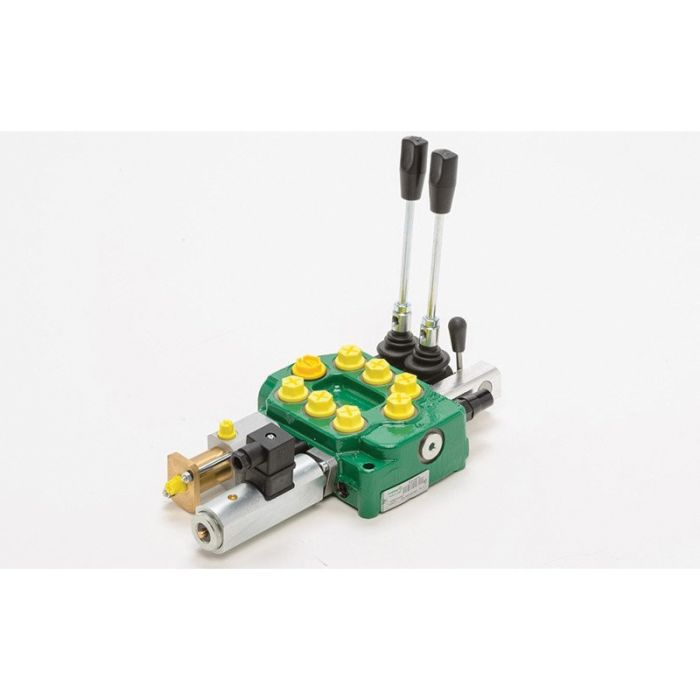

main product photo

SALAMI VDM6/DDDDD/U4S

Ask A Question

Description & Features

Featuring robust cast-iron monoblock construction this valve enables efficient performance in demanding environments. Designed for seamless integration it offers versatile spool types and a variety of spool control and positioning devices.

Equipped with parallel circuit and load check valve protection the valve ensures reliable fluid management. It provides power beyond and a venting valve enhancing its adaptability.

The hardened steel nickel-plated spools minimize internal leakage and resist corrosion ensuring durability. It operates efficiently within an ambient temperature range of -22F to 140F and a fluid viscosity range of 10 to 400 cSt.

Capable of handling a maximum operating pressure of 5100 PSI on ports "P" "A" & "B" the valve supports a flow rating of 12 GPM. Its internal leakage ranges from 1.1 to 1.52 in/min at 2285 PSI with a maximum back pressure of 363 PSI.

Recommended filtration level is ISO 4406: 19/16. Various spools are interchangeable to meet specific industry needs with minimum tolerance between spool and body components.

MPN: C1MR78

Supplier Part Number: 623100150

Specifications

Brand
Salami
Actuator Type
Manual Override
Body Material
Iron
Color
Silver
Connection Type
BSP
Enclosure Type
IP6K6
Finish
Nickel-Plated
grp Recommended Filtration
19/16 um
Media
Mineral Oil
Nominal Size
#06
Number of Positions
2
Opening Size
#06
Product Model
Mono-Block
Series
VDM Series
Softgoods Material
NBR

Similar Products

Model Number Flow Rate Temperature Rating Price Action
Spool kit (12A-NL-F5) includes 4-position float cylinder spool, A-side protected lever box, B-side 3-position spring center 4th-position detent.

R23480050 VDM6 Series Monoblock Valve

SALAMI VDM6/DDDDDD/U4S

623100160 VDM6 Series Monoblock Valve

SALAMI VDM6/DDDD/U4S

623100140 VDM6 Series Monoblock Valve

SALAMI VDM6/DDDDDDD/U4S

623105500 VDM6 Series Monoblock Valve

SALAMI VDM6/D/U4S

623100110 VDM6 Series Monoblock Valve

Cross lever for 2-spools, one 3-position and one 4-position float spool in. (L2) fulcrum on down-stream spool. Accepts M10 threaded handle (not included).

R23100036 VDM6 Series Monoblock Valve

SALAMI VDM6/DD/U4S

623100120 VDM6 Series Monoblock Valve

SALAMI VDM6/DDD/U4S VALVE

623100130 VDM6 Series Monoblock Valve

Cross lever for 2-spools, 3-position. (L1) fulcrum on upstream spool, (L2) fulcrum on down-stream spool. Accepts M10 threaded handle (not included).

R23100033 VDM6 Series Monoblock Valve

Product Questions & Answers (2)

Question by: Lee M on Nov 24, 2025, 6:10 AM
what's the max pressure this valve can handle on the work ports?
Answer by: Customer Support on Nov 26, 2025, 6:15 AM
Ports P, A, and B are all rated to 5100 PSI. Back pressure on the return side is capped at 363 PSI, so keep that in mind when sizing your circuit. Flow rating comes in at 12 GPM, and the spools are hardened steel with a nickel plating to hold up against wear and corrosion over time.
Question by: Lyle B on Jun 3, 2025, 5:12 PM
What kind of temperature range can this handle with the standard seals?
Answer by: Customer Support on Jun 5, 2025, 2:55 PM
This valve will work in temperatures from -4° to 185°F when it's using NBR seals.
