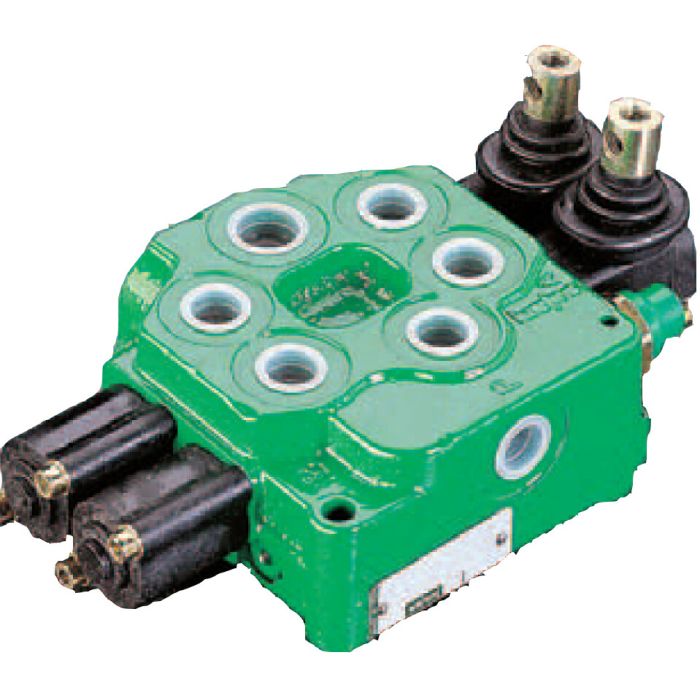

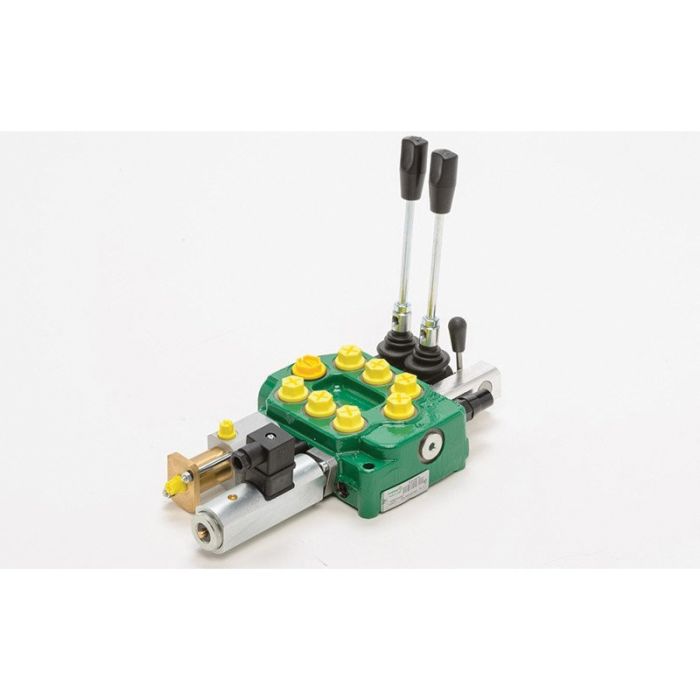

SALAMI VDM6/DDDDDD/U4S

Ask A Question

Description & Features

The SALAMI VDM6/DDDDDD/U4S monoblock valve offers a cast-iron construction with up to 7 spools. It features a parallel circuit with load check valve protection.

Designed with hardened steel, nickel-plated spools for enhanced surface hardness and corrosion resistance, this VDM6 Series Monoblock Valve has a 12 GPM flow rating and can handle a maximum operating pressure of 5100 PSI on ports "P", "A", & "B". It is designed to work with fluid viscosity from 10 to 400 cSt.

The valve provides a minimum tolerance between the spool and body to minimize internal leakage (1.1 to 1.52 in³/min at 2285 PSI), with all spools being interchangeable. It performs in ambient temperatures ranging from -22°F to 140°F and fluid temperatures from -4° to 185°F with NBR seals.

SKU: 623100160

Supplier Part Number (MPN): 623100160

Alternate Part Numbers: C1MW58, VDM6/DDDDDD/U4S

Specifications

Brand
Salami
Actuator Type
Manual Override
Body Material
Iron
Color
Silver
Connection Type
BSP
Enclosure Type
IP6K6
Finish
Nickel-Plated
grp Recommended Filtration
19/16 um
Media
Mineral Oil
Nominal Size
#06
Number of Positions
2
Opening Size
#06
Product Model
Mono-Block
Series
VDM Series
Softgoods Material
NBR

Similar Products

Model Number Key Product Description Price Action
SALAMI VDM6/D/U4S

623100110 VDM6 Series Monoblock Valve

Valve

SALAMI VDM6/D/U4S.

SALAMI VDM6/DD/U4S

623100120 VDM6 Series Monoblock Valve

Valve

SALAMI VDM6/DD/U4S.

SALAMI VDM6/DDDD/U4S

623100140 VDM6 Series Monoblock Valve

Valve

SALAMI VDM6/DDDD/U4S.

SALAMI VDM6/DDD/U4S VALVE

623100130 VDM6 Series Monoblock Valve

Valve

SALAMI VDM6/DDD/U4S VALVE.

SALAMI VDM6/DDDDD/U4S

623100150 VDM6 Series Monoblock Valve

Valve

SALAMI VDM6/DDDDD/U4S.

SALAMI VDM6/DDDDDDD/U4S

623105500 VDM6 Series Monoblock Valve

Valve

SALAMI VDM6/DDDDDDD/U4S.

Product Questions & Answers (3)

Question by: Stan A on Oct 5, 2025, 2:23 PM
got a hydraulic setup that runs right around 12 gpm. is this valve sized for that, or am i pushin it
Answer by: Customer Support on Oct 7, 2025, 1:55 PM
For flow, the VDM6 monoblock is rated at 12 GPM, so a system running around 12 GPM lines up with its published flow rating.
Question by: Ralph P on Dec 4, 2025, 7:06 AM
got a system that sees about 12 gpm, is this monoblock valve gonna be the choke point?
Answer by: Customer Support on Dec 6, 2025, 6:58 AM
For flow, it lines up well. The VDM6 series monoblock valve is rated at 12 GPM, so a 12 GPM circuit is within its stated capacity.
Question by: Larry F on Apr 7, 2025, 6:05 AM
what's the max pressure this valve handles on the work ports?
Answer by: Customer Support on Apr 8, 2025, 8:25 PM
On ports P, A, and B, the VDM6 series is rated up to 5100 PSI. Back pressure on the return side tops out at 363 PSI, so keep that in mind when hydraulic connections your return line. Flow rating comes in at 12 GPM, which fits a good range of small to mid-sized hydraulic circuits.
