Spool kit (12A-NL-F5) includes 4-position float cylinder spool, A-side protected lever box, B-side 3-position spring center 4th-position detent.

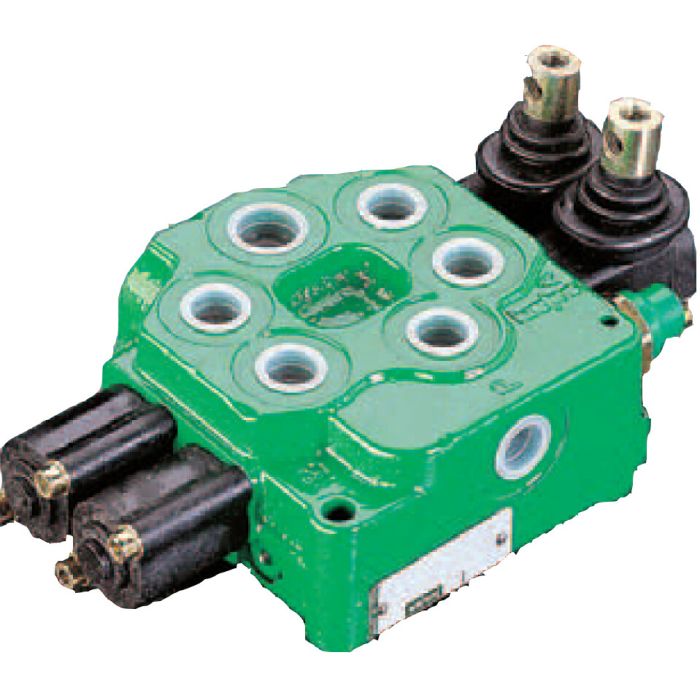

This spool kit (12A-NL-F5) is a component of the VDM6 Series Monoblock Valve, featuring a 4-position float cylinder spool.

The Salami Hydraulics monoblock valve spool kit features a cast-iron construction and is designed for a 12 GPM flow rating. It is suitable for use in ambient temperatures ranging from -22°F to 140°F and fluid temperatures ranging from -4°F to 185°F when using NBR seals. It is designed to work optimally with fluid viscosity between 12 and 75 cSt, though it can handle fluid viscosity from 10 to 400 cSt. This valve has a maximum operating pressure of 5100 PSI on ports "P", "A", & "B".

It features a parallel circuit, load check valve protection, and a venting valve. The hardened steel, nickel-plated spools provide higher surface hardness and corrosion resistance. The kit also includes an A-side protected lever box and a B-side 3-position spring center 4th-position detent.

SKU: R23480050

Supplier Part Number (MPN): R23480050

Alternate Part Numbers: C1MU33
