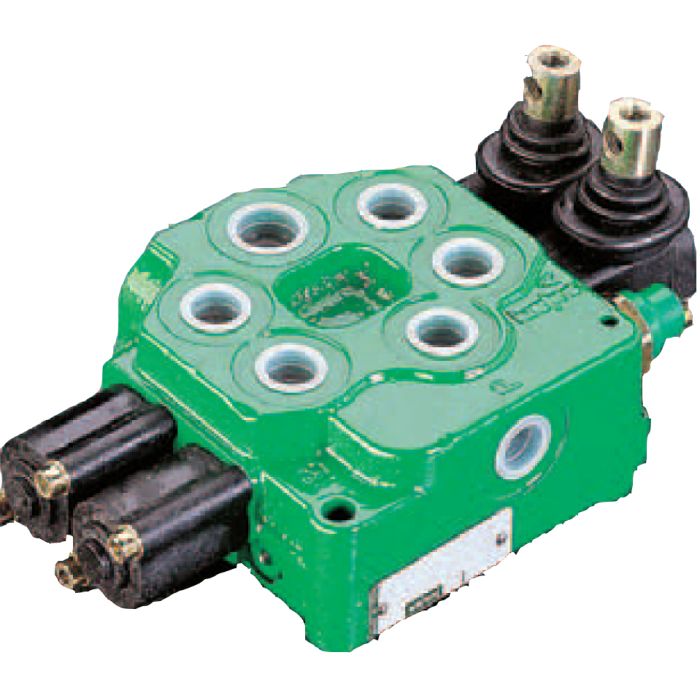

VDM6 Series Monoblock Valves, Up To 5100 PSI & 12 GPM

Description & Features

Ambient Temperature Range	-22°F to 140°F
Features	Cast-iron monoblock construction up to 7 spools • Parallel circuit, load check valve protection • Tandem circuit available on first spool of circuit • Venting valve • Power beyond • Hardened steel, nickel-plated spools for higher surface hardness and corrosion resistance • Variety of spool types • Minimum tolerance between the spool and body to obtain a minimum of internal leakage • All spools interchangeable • Variety of spool control and positioning devices
Flow Rating	12 GPM
Fluid Viscosity	10 to 400 cSt; Optimal range 12 to 75 cSt
Internal Leakage	1.1 to 1.52 in³/min at 2285 PSI
Maximum Back Pressure	363 PSI
Maximum Operating Pressure	5100 PSI on ports ''P'', ''A'', & ''B''
Note	All technical data carried out using mineral oil with viscosity of 16 cSt and contamination level of 19/16 per ISO 4406
Recommended Filtration	ISO 4406: 19/16
Temperature Range	-4° to 185°F with NBR seals

Model Number	Key	Product Description
623100110 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/D/U4S.
623100120 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DD/U4S.
623100140 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDDD/U4S.
623100160 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDDDDD/U4S.
623100130 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDD/U4S VALVE.
623100150 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDDDD/U4S.
623105500 VDM6 Series Monoblock Valve	Valve	SALAMI VDM6/DDDDDDD/U4S.
