SALAMI VDM8/D/U4S

Description & Features

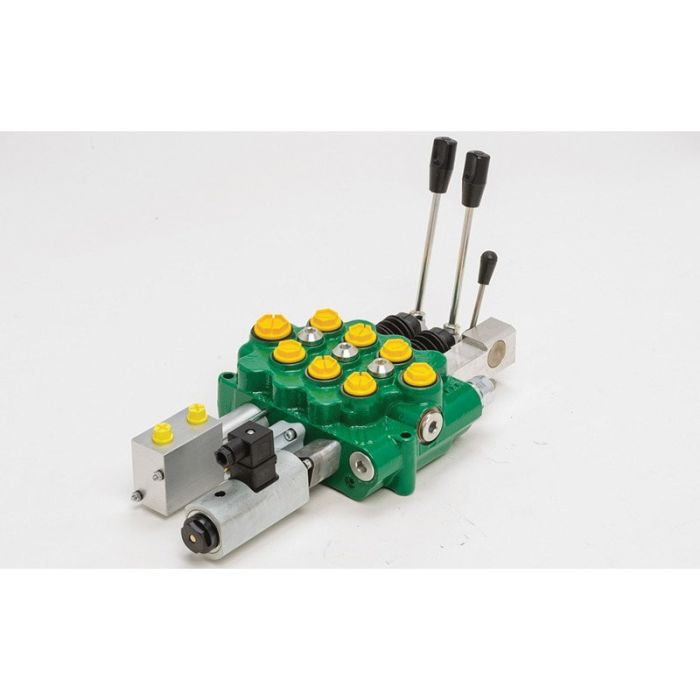

The Salami VDM8 Series Monoblock Valve offers a robust solution for industrial applications. Constructed from durable cast iron this valve is engineered for high performance with up to 5 spools. The internal components include hardened steel nickel-plated spools designed to resist corrosion ensuring longevity and reliability.

Features a parallel circuit with load check valve protection venting valve and power beyond capabilities. The valve operates efficiently across a fluid viscosity range of 10 to 400 cSt with an optimal range of 12 to 75 cSt. Minimal tolerance between spool and body reduces internal leakage to 1.52 to 2.13 in/min at 2285 PSI.

Engineered for flexibility it offers a variety of spool types and control positioning devices. Auxiliary valves on port A/B enhance its operational capabilities. Maximum operating pressure stands at 5100 PSI for ports "P " "A " & "B" with a maximum back pressure of 363 PSI.

Constructed to perform within an ambient temperature range from -22F to 140F the Salami VDM8/D/U4S meets ISO 4406: 19/16 filtration standards making it a reliable choice for demanding industrial environments.

MPN: 623200110

Supplier Part Number: 623200110

Specifications

Brand
Salami
Actuator Type
Manual Override
Body Material
Iron
Color
Silver
Connection Type
BSP
Enclosure Type
IP6K6
Finish
Chrome-Plated
grp Recommended Filtration
19/16 um
Media
Mineral Oil
Nominal Size
#08
Number of Positions
2
Opening Size
#08
Product Model
Mono-Block
Series
VDM Series
Softgoods Material
NBR

Similar Products

Model Number Pressure Rating Temperature Rating Suitable For Use With Price Action
Port relief and anti-cavitation valve (AR) kit, non-adjustable, 580 PSI. Includes plug, seal and fixed setting valve (794129303).

R23277520 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Salami Plug For Carry Over (From 2 TO 5)

795429300 VDM8 Series Monoblock Valve

VDM8 Series 2 to 5 Spool Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 2530 PSI. Includes plug, seal and fixed setting valve (794129311).

R23277600 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Salami Plug For CARRY OVER (For 1 SECTIO

795429400 VDM8 Series Monoblock Valve

VDM8 Series 1 Spool Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 910 PSI. Includes plug, seal and fixed setting valve (794129305).

R23277540 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 362 PSI. Includes plug, seal and fixed setting valve (794129301).

R23277500 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 2000 PSI. Includes plug, seal and fixed setting valve (794129309).

R23277580 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 1450 PSI. Includes plug, seal and fixed setting valve (794129307).

R23277560 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief valve cavity plug (VR)

R24177541 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

SALAMI VDM8/DDD/U4S

623200130 VDM8 Series Monoblock Valve

SALAMI VDM8/DDDD/U4S

623200140 VDM8 Series Monoblock Valve

SALAMI VDM8/DD/U4S

623200120 VDM8 Series Monoblock Valve

Port relief and anti-cavitation valve (AR), non-adjustable, 3625 PSI

R23277640 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 3000 PSI. Includes plug, seal and fixed setting valve (794129313).

R23277620 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

623200150

623200150

Product Questions & Answers (1)

Question by: Hubert D on Jan 9, 2026, 3:47 PM
Will this valve hold up okay in a place where the temperature swings from below freezing to pretty warm in the summer?
Answer by: Customer Support on Jan 11, 2026, 11:37 AM
This Salami VDM8 series valve is constructed to perform within an ambient temperature range from -22F to 140F making it suitable for environments with temperature variations.
