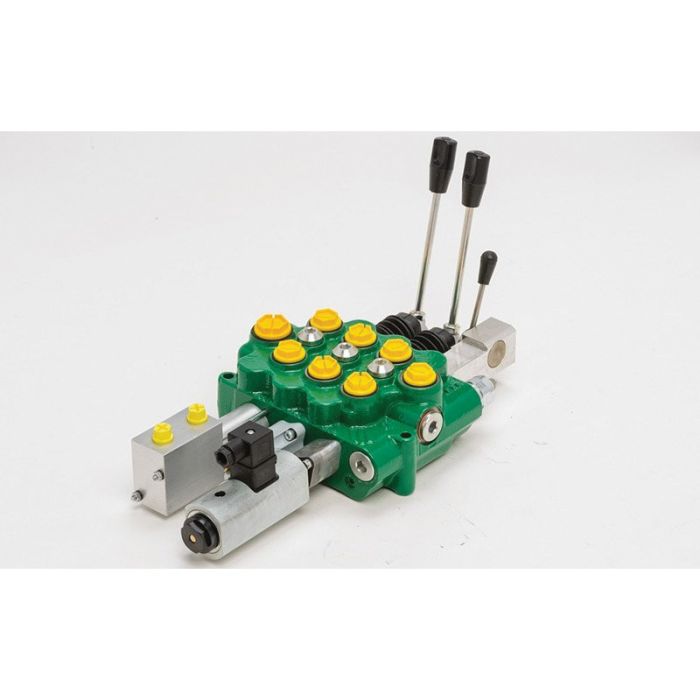

SALAMI VDM8/DD/U4S

Description & Features

Designed with cast-iron monoblock construction the SALAMI VDM8/DD/U4S offers up to five spools for versatile applications. Featuring a parallel circuit and load check valve protection this valve ensures optimal performance in demanding environments. The hardened steel nickel-plated spools provide high surface hardness and enhanced corrosion resistance.

With internal leakage ranging between 1.52 to 2.13 in/min at 2285 PSI the valve maintains efficiency under high pressure. The operation temperature ranges from -22F to 140F while the temperature range with NBR seals is -4 to 185F. This valve supports fluid viscosity between 10 to 400 cSt with an optimal range of 12 to 75 cSt.

Equipped with a venting valve and power beyond function the SALAMI VDM8/DD/U4S monoblock valve is reliable for various industrial applications. It comes with diverse spool types and positioning devices making it adaptable for multiple configurations. The minimum tolerance between the spool and body ensures minimal internal leakage and all spools are interchangeable.

The valve also includes auxiliary valves available on ports A and B and the recommended filtration is ISO 4406: 19/16. The maximum operating pressure is 5100 PSI on ports "P" "A" and "B" with a maximum back pressure of 363 PSI.

MPN: {{ecc_mpn}}

Supplier Part Number: 623200120

Specifications

Brand
Salami
Actuator Type
Manual Override
Body Material
Iron
Color
Silver
Connection Type
BSP
Enclosure Type
IP6K6
Finish
Chrome-Plated
grp Recommended Filtration
19/16 um
Media
Mineral Oil
Nominal Size
#08
Number of Positions
2
Opening Size
#08
Product Model
Mono-Block
Series
VDM Series
Softgoods Material
NBR
