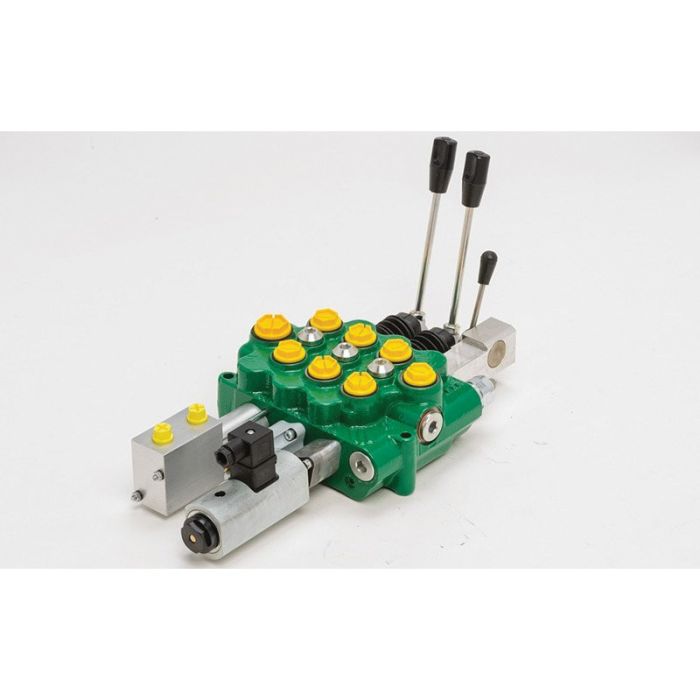

SALAMI VDM8/DDD/U4S

Description & Features

The SALAMI VDM8/DDD/U4S is designed for optimal performance with features such as cast-iron monoblock construction that supports up to five spools. The parallel circuit with load check valve protection ensures efficient operations.

It includes a venting valve and power beyond capabilities. The hardened steel nickel-plated spools offer superior surface hardness and resistance to corrosion. Interchangeable spools with minimal tolerance between spool and body reduce internal leakage.

Different spool types and auxiliary valves on port A/B are available along with a variety of control and positioning devices. With an ambient temperature range from -22F to 140F it is suitable for diverse environments.

Recommended fluid viscosity ranges from 10 to 400 cSt with an optimal range of 12 to 75 cSt. Internal leakage is maintained between 1.52 to 2.13 in/min at 2285 PSI. The valve supports a maximum back pressure of 363 PSI and operates at a maximum pressure of 5100 PSI on ports "P" "A" and "B".

**Supplier Part Number: 623200130**

Specifications

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Key Valve	Supplier Part Number 623200130	Product Weight 27.00 lbs	Alternate Part Numbers Alternate Part Number C1MR82, Alternate Part Number MI-02521527, Alternate Part Number MINO-00770X11310, Alternate Part Number VDM8/DDD/U4S

Similar Products

Model Number	Key	Product Description
795429300 VDM8 Series Monoblock Valve	Outlet option	SALAMI PLUG FOR CARRY OVER (FROM 2 TO 5.
623200110 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/D/U4S.
623200120 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/DD/U4S.
623200130 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/DDD/U4S.
623200140 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/DDDD/U4S.
795429400 VDM8 Series Monoblock Valve	Outlet option	SALAMI PLUG FOR CARRY OVER (FOR 1 SECTIO.

Product Questions & Answers (2)

Question by: Debbie R on Jun 1, 2025, 9:14 PM

got a system that sees some cold mornings and hot afternoons. what temp range will this VDM8 valve tolerate?

Answer by: Customer Support on Jun 3, 2025, 7:52 PM

For ambient conditions, it is rated from -22°F up to 140°F. For fluid and seal temperature, it is listed at -4°F to 185°F when using NBR seals.

Question by: Gene H on Apr 27, 2025, 7:57 AM

what's the max pressure this valve handles on the work ports?

Answer by: Customer Support on Apr 29, 2025, 6:52 AM

Ports P, A, and B are all rated to 5100 PSI, so you've got consistent pressure capacity across the main circuit. Back pressure on the return side is limited to 363 PSI, which is worth keeping in mind when you're sizing your return line. All that pressure data was validated using mineral oil at 16 cSt viscosity with a contamination level of 19/16 per ISO 4406.
