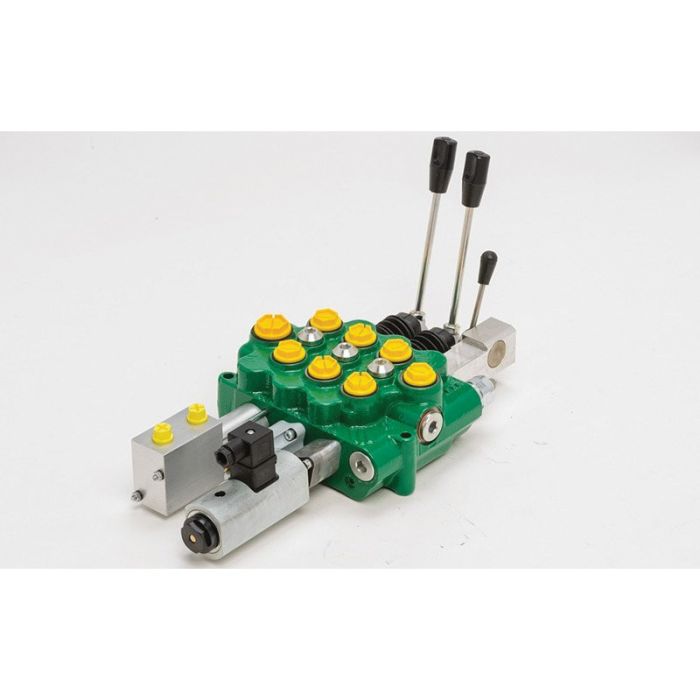

SALAMI VDM8/DDDD/U4S

Description & Features

The Salami VDM8/DDDD/U4S monoblock valve is engineered for superior performance with a cast-iron construction capable of accommodating up to five spools. Utilizing a parallel circuit and load check valve protection this component ensures optimal functionality under challenging conditions.

Built with hardened steel nickel-plated spools the valve attains higher surface hardness and offers corrosion resistance. A variety of spool types and control devices are available enhancing customization for specific applications.

The design incorporates venting valve and power-beyond features catering to diverse operational needs. With minimum tolerance between the spool and body the valve achieves minimal internal leakage ranging between 1.52 to 2.13 in/min at 2285 PSI.

Designed for an ambient temperature range of -22F to 140F and fluid viscosity between 10 to 400 cSt with optimal operation between 12 to 75 cSt. The valve supports a maximum back pressure of 363 PSI and operates effectively at up to 5100 PSI on ports "P" "A" and "B".

Auxiliary valves are available for ports A and B providing additional versatility. Recommended filtration follows ISO 4406: 19/16 standards ensuring optimal fluid purity.

Specifications

Brand
Salami
Actuator Type
Manual Override
Body Material
Iron
Color
Silver
Connection Type
BSP
Enclosure Type
IP6K6
Finish
Chrome-Plated
grp Recommended Filtration
19/16 um
Media
Mineral Oil
Nominal Size
#08
Number of Positions
2
Opening Size
#08
Product Model
Mono-Block
Series
VDM Series
Softgoods Material
NBR

Similar Products

Model Number Pressure Rating Temperature Rating Suitable For Use With Price Action
Port relief and anti-cavitation valve (AR) kit, non-adjustable, 580 PSI. Includes plug, seal and fixed setting valve (794129303).

R23277520 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Salami Plug For Carry Over (From 2 TO 5)

795429300 VDM8 Series Monoblock Valve

VDM8 Series 2 to 5 Spool Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 2530 PSI. Includes plug, seal and fixed setting valve (794129311).

R23277600 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Salami Plug For CARRY OVER (For 1 SECTIO

795429400 VDM8 Series Monoblock Valve

VDM8 Series 1 Spool Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 910 PSI. Includes plug, seal and fixed setting valve (794129305).

R23277540 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 362 PSI. Includes plug, seal and fixed setting valve (794129301).

R23277500 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 2000 PSI. Includes plug, seal and fixed setting valve (794129309).

R23277580 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 1450 PSI. Includes plug, seal and fixed setting valve (794129307).

R23277560 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief valve cavity plug (VR)

R24177541 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

SALAMI VDM8/DDD/U4S

623200130 VDM8 Series Monoblock Valve

SALAMI VDM8/D/U4S

623200110 VDM8 Series Monoblock Valve

SALAMI VDM8/DD/U4S

623200120 VDM8 Series Monoblock Valve

Port relief and anti-cavitation valve (AR), non-adjustable, 3625 PSI

R23277640 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

Port relief and anti-cavitation valve (AR) kit, non-adjustable, 3000 PSI. Includes plug, seal and fixed setting valve (794129313).

R23277620 VDM8 Series Monoblock Valve

VDM8 Series Monoblock Directional Valves

623200150

623200150

Product Questions & Answers (2)

Question by: Brett H on Oct 18, 2025, 12:25 PM
what's the internal leakage like on this valve? running a pretty tight system and can't afford much slop
Answer by: Customer Support on Oct 20, 2025, 12:16 PM
At 2285 PSI, internal leakage runs between 1.52 and 2.13 cubic inches per minute. That's a result of the minimum tolerance machined between the spool and body, which Salami holds pretty close on this series. The hardened, nickel-plated spools also help maintain that fit over time compared to softer materials that can wear and open up clearances faster.
Question by: Bonnie P on Sep 29, 2025, 3:40 PM
What kind of temperatures can this valve handle, operating and storage wise?
Answer by: Customer Support on Sep 30, 2025, 9:46 PM
This valve is designed to work in ambient temperatures from -22°F to 140°F. For optimal performance with NBR seals, keep the temperature between -4° and 185°F.
