Salami Plug For Carry Over (From 2 TO 5)

Description & Features

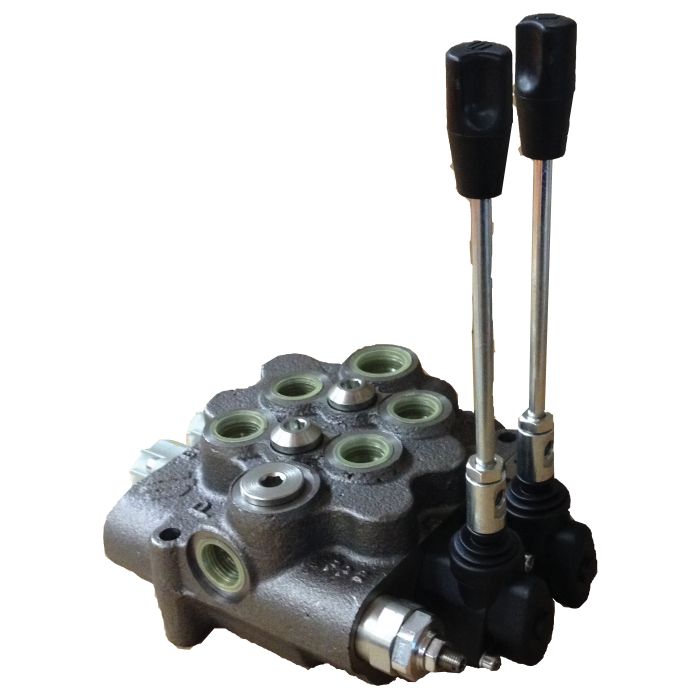

The Monoblock product by Salami Hydraulics NA Inc, known for its robust performance, offers cast-iron construction up to 5 spools, ensuring longevity and reliability in demanding environments.

This Salami Plug For Carry Over (From 2 TO 5) features hardened steel, nickel-plated spools that provide superior surface hardness and resistance to corrosion, contributing to its durability.

With an ambient temperature range of -22deg;F to 140deg;F and an operational temperature range of -4deg; to 185deg;F with NBR seals, it is designed for versatility and adaptability across varied temperature settings.

The product supports a maximum operating pressure of 5100 PSI on ports "P", "A", & "B", and a maximum back pressure of 363 PSI.

Its fluid viscosity ranges from 10 to 400 cSt, with an optimal range of 12 to 75 cSt, and an internal leakage rate of 1.52 to 2.13 insup3;/min at 2285 PSI, ensuring efficient performance.

Notable features include a parallel circuit, load check valve protection, venting valve, power beyond, and a variety of spool types and control devices. The minimum tolerance between the spool and body reduces internal leakage significantly.

**Supplier Part Number:** 795429300

Specifications

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Key Outlet option	Supplier Part Number 795429300	Product Weight 0.02 lbs	Alternate Part Numbers Alternate Part Number C1MS14, Alternate Part Number MI-02665634, Alternate Part Number MINO-00770X11394

Similar Products

Model Number	Key	Product Description
795429300 VDM8 Series Monoblock Valve	Outlet option	SALAMI PLUG FOR CARRY OVER (FROM 2 TO 5.
623200110 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/D/U4S.
623200120 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/DD/U4S.
623200130 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/DDD/U4S.
623200140 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/DDDD/U4S.
795429400 VDM8 Series Monoblock Valve	Outlet option	SALAMI PLUG FOR CARRY OVER (FOR 1 SECTIO.

Product Questions & Answers (5)

Question by: Roger S on Oct 24, 2025, 8:06 PM

plug's rated up to 5100 PSI on the work ports -- does that hold for carry over configurations too, or is there a different pressure limit when this is installed between sections?

Answer by: Customer Support on Oct 26, 2025, 6:17 AM

Port pressure ratings on the A and B ports stay at 5100 PSI regardless of where this plug sits in the stack. Back pressure is where the number changes -- the system limit there is 363 PSI, so that's worth keeping in mind on your return line side when you're running this in a carry over setup between sections 2 and 5.

Question by: Bonnie W on Aug 3, 2025, 1:09 PM

Will this plug work with other brands of monoblock valves, or is it just for Salami brand stuff?

Answer by: Customer Support on Aug 4, 2025, 9:42 PM

This plug is specifically for Salami Hydraulics monoblock valves. It is designed to fit their C1MS14 catalog number.

Question by: Bobby R on Jul 1, 2025, 3:42 PM

got a 5 spool monoblock valve and need to run carry over, is this the right plug for that 2 to 5 setup?

Answer by: Customer Support on Jul 3, 2025, 6:42 AM

For carry over on a Salami monoblock built in the 2 to 5 spool range, this part is the outlet option plug intended for that carry over function.

Question by: Kent B on Jun 21, 2025, 5:58 PM

got a VDM8 monoblock that’s set up for 2 spools right now. what’s this “carry over plug from 2 to 5” actually do?

Answer by: Customer Support on Jun 23, 2025, 5:14 PM

It’s an outlet option used when you’re setting up power beyond on a VDM8 series monoblock so flow can be carried on to another valve section or downstream circuit as you move from a 2 spool configuration up through 5 spools.

Question by: Marvin D on Aug 3, 2025, 5:21 PM

Will this plug work with any of the VDM8 series valves?

Answer by: Customer Support on Aug 5, 2025, 11:39 AM

This plug is designed for Salami VDM8 series monoblock valves, specifically for carry-over functions from 2 to 5 spools.
