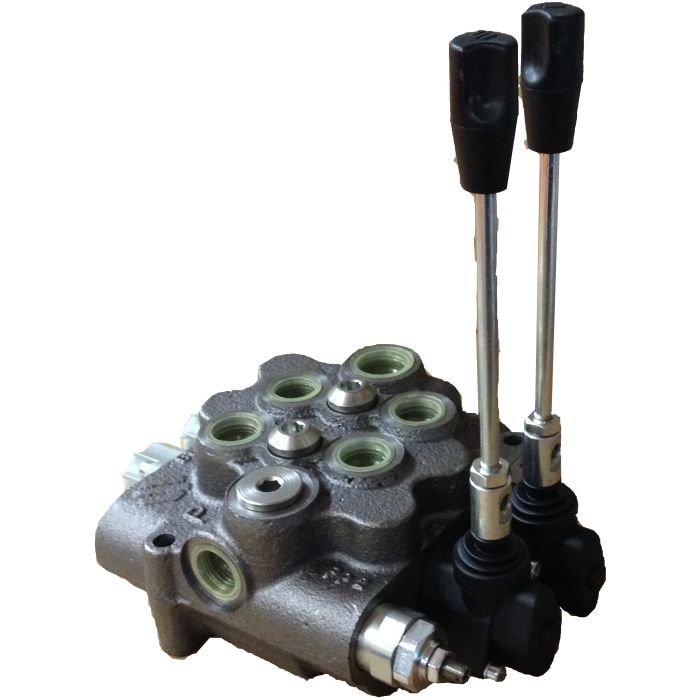

Port relief and anti-cavitation valve (AR), non-adjustable, 3625 PSI

Designed for demanding hydraulic systems, this port relief and anti-cavitation valve (AR) operates at a non-adjustable pressure of 3625 PSI, making it ideal for high-pressure applications. Constructed from durable cast iron, this monoblock valve features up to five spools, each crafted from hardened steel with a nickel-plated finish for enhanced surface hardness and corrosion resistance. The valve supports a parallel circuit and includes a load check valve for added protection.

With a fluid viscosity range of 10 to 400 cSt and optimal performance between 12 to 75 cSt, this valve ensures efficient fluid handling. It operates effectively within a temperature range of -22°F to 140°F, and its internal leakage is minimal, between 1.52 to 2.13 in³/min at 2285 PSI. The valve can handle a maximum back pressure of 363 PSI and a maximum operating pressure of 5100 PSI on ports "P", "A", & "B". Recommended filtration complies with ISO 4406: 19/16, ensuring system cleanliness and longevity.

SKU: R23277640

Supplier Part Number (MPN): R23277640

Alternate Part Numbers: C1MT97
