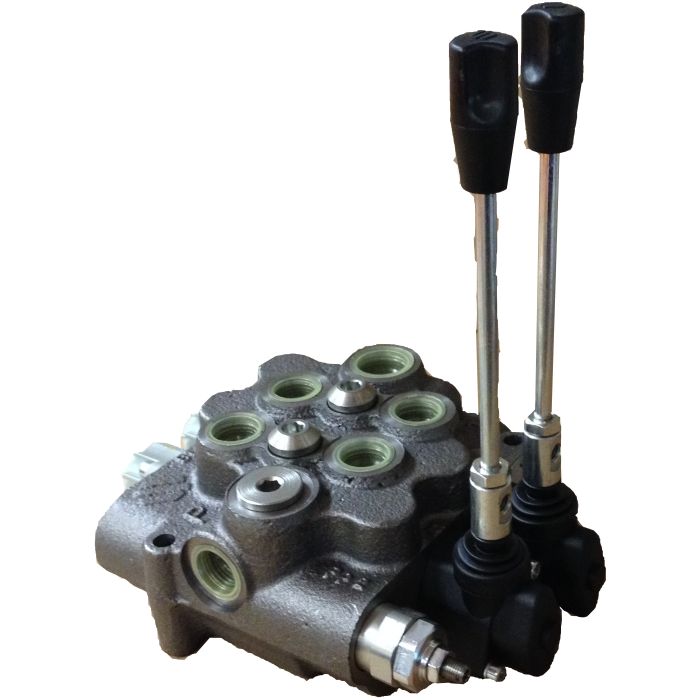

VDM8 Series Monoblock Valves, Up To 5100 PSI & 20 GPM

Description & Features

Ambient Temperature Range	-22°F to 140°F
Features	Cast-iron monoblock construction up to 5 spools • Parallel circuit, load check valve protection • Venting valve • Power beyond • Hardened steel, nickel-plated spools for higher surface hardness and corrosion resistance • Variety of spool types • Minimum tolerance between the spool and body to obtain a minimum of internal leakage • All spools interchangeable • Variety of spool control and positioning devices • Auxiliary valves available on port A/B
Fluid Viscosity	10 to 400 cSt; Optimal range 12 to 75 cSt
Internal Leakage	1.52 to 2.13 in³/min at 2285 PSI
Maximum Back Pressure	363 PSI
Maximum Operating Pressure	5100 PSI on ports ''P'', ''A'', & ''B''
Note	All technical data carried out using mineral oil with viscosity of 16 cSt and contamination level of 19/16 per ISO 4406
Recommended Filtration	ISO 4406: 19/16
Temperature Range	-4° to 185°F with NBR seals

Model Number	Key	Product Description
795429300 VDM8 Series Monoblock Valve	Outlet option	SALAMI PLUG FOR CARRY OVER (FROM 2 TO 5.
623200110 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/D/U4S.
623200120 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/DD/U4S.
623200130 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/DDD/U4S.
623200140 VDM8 Series Monoblock Valve	Valve	SALAMI VDM8/DDDD/U4S.
795429400 VDM8 Series Monoblock Valve	Outlet option	SALAMI PLUG FOR CARRY OVER (FOR 1 SECTIO.
