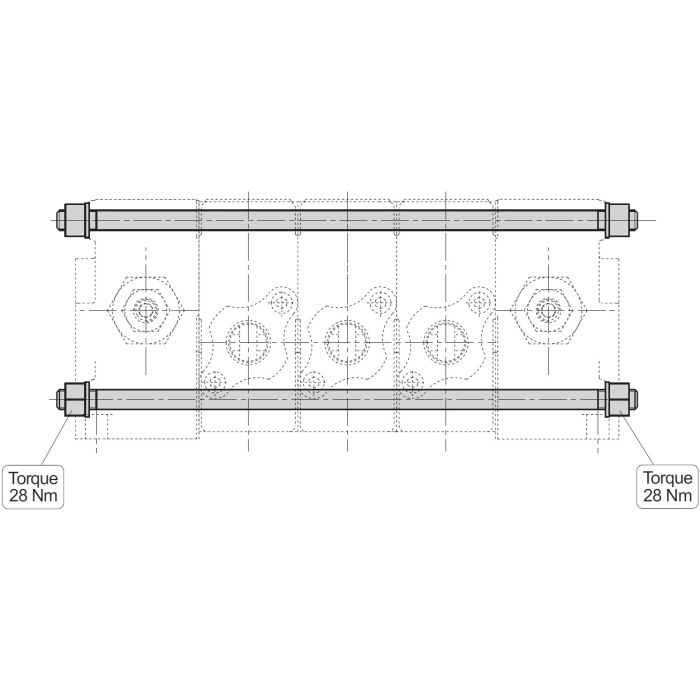

VDP08 Series Tie rod and nut kit for 1 section assembly with inlet and outlet

This VDP08 Series Tie rod and nut kit is designed for single-section assembly with both inlet and outlet ports. It's manufactured by Salami S.P.A and is part of their load-sensing directional control valve family, offering load-independent flow control. Each section's flow rate is dictated by the spool position, ensuring consistent performance regardless of the load.

This kit operates effectively with mineral oil within a viscosity range of 12 cSt to 75 cSt, with broader compatibility from 10 cSt to 460 cSt. It is designed to function within a fluid temperature range of -4°F to 185°F when using standard NBR seals, and an ambient temperature range of 86°F to 140°F. The maximum operating pressure is 4560 PSI on ports "P" and 5000 PSI on ports "A" and "B", with a maximum back pressure of 145 PSI on the outlet port "T". The recommended filtration level is ISO 4406: 19/16.

SKU: R24185010

Supplier Part Number (MPN): R24185010

Alternate Part Numbers: C1MU75
