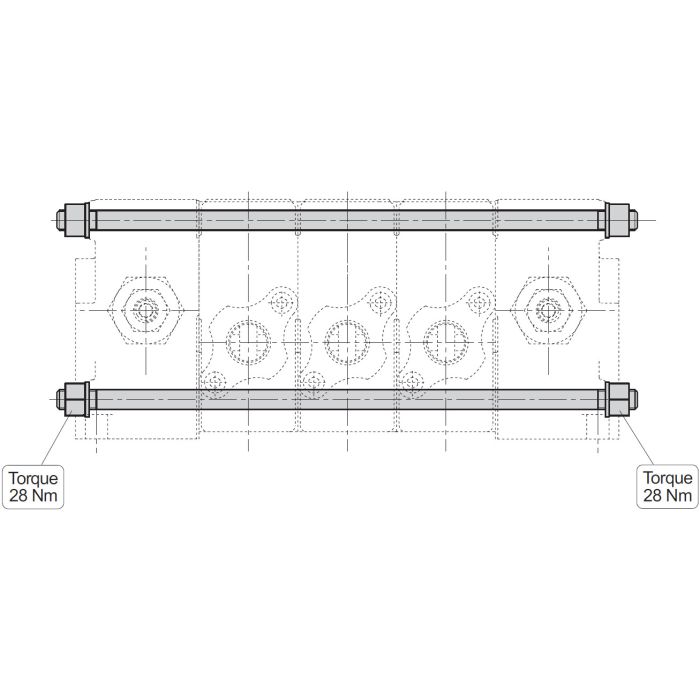

VDP08 Series Tie rod and nut kit for 2 section assembly with inlet and outlet

Designed for use with Salami's load-sensing directional control valve platform, the VDP08 Series Tie Rod and Nut Kit for 2 Section Assembly with Inlet and Outlet provides the hardware needed to assemble a two-section VDP08 valve stack. Load-sensing design delivers load-independent flow control, meaning flow through each section responds to spool position rather than load variation across functions, supporting consistent metering and potential energy savings in multi-actuator circuits.

The VDP08 series is rated to 4560 PSI on the pressure port and up to 5000 PSI on working ports A and B, with a maximum back pressure of 145 PSI on the outlet port. Compatible fluid viscosity ranges from 10 cSt minimum to 460 cSt maximum, with an optimal band of 12–75 cSt. Fluid temperature tolerance spans -4°F to 185°F with standard NBR seals. Recommended filtration is ISO 4406: 19/16, consistent with the contamination level used for all published performance data.

SKU: R24185020

Supplier Part Number (MPN): R24185020

Alternate Part Numbers: C1MU76
