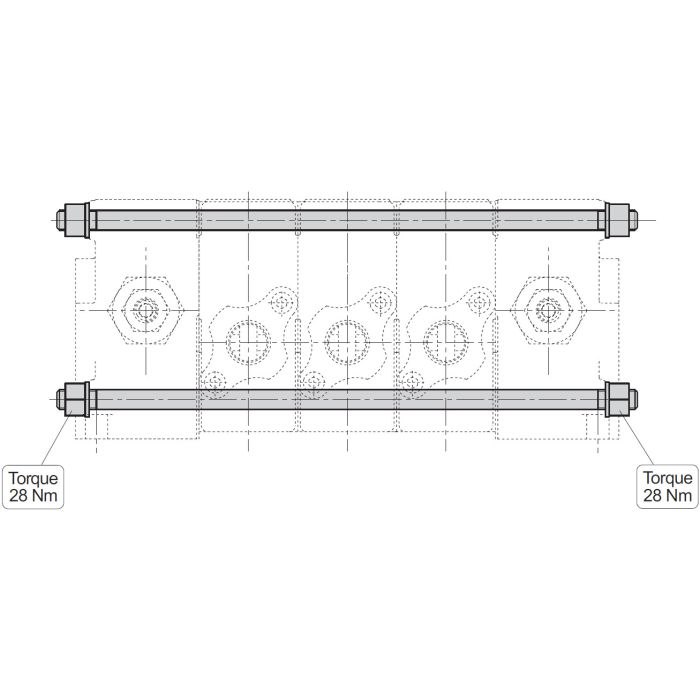

VDP08 Series Tie rod and nut kit for 4 section assembly with inlet and outlet

Description & Features

This tie rod and nut kit is part of the Salami VDP08 Series, designed for 4 section assembly with inlet and outlet. The VDP08 Series Tie rod and nut kit is engineered to function within a fluid temperature range of -4°F to 185°F when using standard NBR seals, and an ambient temperature range of 86°F to 140°F.

The valve sections offer a 25 GPM flow rating, with maximum operating pressure of 4560 PSI on ports "P" and 5000 PSI on ports "A" and "B". It is suitable for use with a fluid viscosity between 12 cSt and 75 cSt, though it can tolerate a minimum of 10 cSt and a maximum of 460 cSt. Internal leakage is rated at 1.8 - 2.1 in³/min at 2285 PSI, with a maximum back pressure of 145 PSI on outlet port "T". The recommended filtration follows ISO 4406: 19/16 standards.

SKU: R24185040

Supplier Part Number (MPN): R24185040

Alternate Part Numbers: C1MU78

Specifications

Brand Salami S.P.A	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Supplier Part Number R24185040	Alternate Part Numbers Alternate Part Number C1MU78	Product Weight 0.81 lbs

Product Questions & Answers (1)

Question by: Freddie F on Mar 28, 2026, 1:17 PM

What kinda fluid should I be runnin' in this thing?

Answer by: Customer Support on Mar 29, 2026, 6:28 PM

Optimal fluid viscosity is between 12 cSt and 75 cSt. It can handle a minimum of 10 cSt and a maximum of 460 cSt, though. All the tech data was collected using mineral oil with a viscosity of 16 cSt and a contamination level of 19/16 as per ISO 4406.
