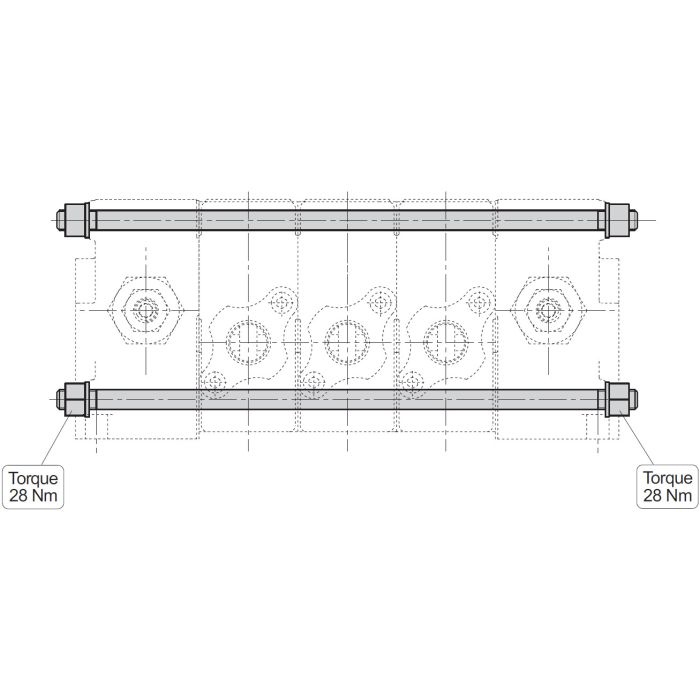

VDP08 Series Tie rod and nut kit for 6 section assembly with inlet and outlet

The VDP08 Series Tie Rod and Nut Kit is essential for assembling a 6-section hydraulic valve, complete with inlet and outlet. This kit is designed for the Salami VDP08 Series, known for its load-sensing directional control valve capabilities. It ensures load-independent flow control, with flow rates determined solely by spool position, not load pressure. This kit supports optimal fluid temperature ranges from -4°F to 185°F, maintaining efficiency under varying conditions.

With a maximum operating pressure of 4560 PSI on ports "P" and 5000 PSI on ports "A" and "B," this kit is built for robust performance. The internal leakage rate is between 1.8 - 2.1 in³/min at 2285 PSI, ensuring minimal fluid loss. It operates best with fluid viscosities ranging from 12 cSt to 75 cSt, with a recommended filtration of ISO 4406: 19/16. The maximum back pressure on the outlet port "T" is 145 PSI, making it suitable for demanding industrial applications.

SKU: R24185060

Supplier Part Number (MPN): R24185060

Alternate Part Numbers: C1MU80
