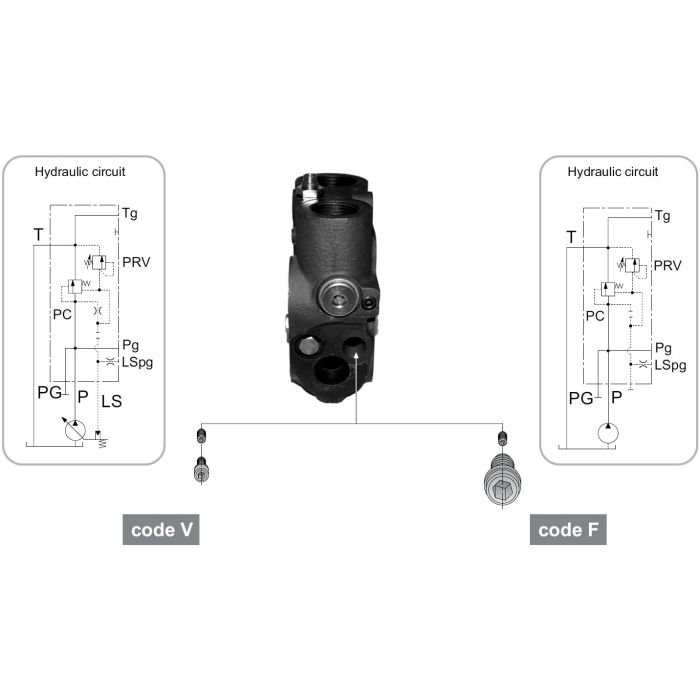

VDP08 Series Inlet module kit (F) parts to convert for fixed displacment pump

Designed for use with the Salami VDP08 Series load-sensing directional control valve, this inlet module kit (F) supplies the components needed to convert a variable displacement valve configuration to fixed displacement. The VDP08 platform delivers load-independent flow control, meaning flow in each section responds to spool position rather than load conditions, a characteristic that supports predictable metering and consistent actuator response across functions.

The kit is rated for flows up to 25 GPM and handles operating pressures up to 4,560 PSI on the pressure port and up to 5,000 PSI on work ports A and B, with a maximum back pressure of 145 PSI at the outlet. Compatible with mineral oil and standard NBR seals, the assembly operates across a fluid temperature range of -4°F to 185°F and suits fluid viscosities from 10 cSt minimum to 460 cSt maximum. Recommended filtration is ISO 4406: 19/16.

SKU: R24170130

Supplier Part Number (MPN): R24170130

Alternate Part Numbers: C1MU69
