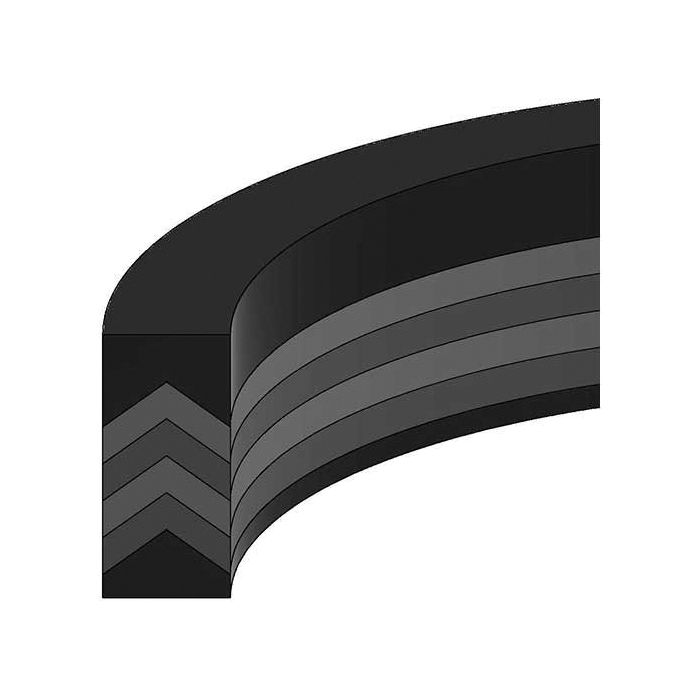

Vee Packing Set, 1.50 Inch OD, 1.00 Inch ID, 1.00 Inch Height

Ask A Question

Description & Features

Rated for pressure ranges up to 10,000 PSI depending on configuration, this Vee Packing Set from Hercules Sealing Products is designed for hydraulic cylinder sealing in demanding industrial environments. With a 1.00 inch ID, 1.50 inch OD, and 1.00 inch height, it fits a defined bore and rod specification with no trimming or modification required.

The set combines fabric-reinforced rubber and urethane vee rings with nylon top and bottom adaptors. The "How to Order" code structure identifies the quantity of each component: the first number indicates top nylon adaptors, the second urethane vee rings, the third fabric vee rings, and the fourth bottom nylon adaptors. This modular construction allows the stack to be configured for different pressure requirements, four vees handle up to 3,000 PSI, five vees up to 5,000 PSI, and six vees up to 10,000 PSI. The operating temperature range spans -65°F to 220°F, covering a broad range of hydraulic service conditions.

SKU: VS10004X100

Supplier Part Number (MPN): VS10004X100

Alternate Part Numbers: C1DR70, MI-01231459, MINO-00407X70044

Specifications

Code TUFB
1051
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Height
1
I.D.
1 in
O.D.
1.5 in
Supplier Part Number
VS10004X100
Alternate Part Numbers
Alternate Part Number C1DR70, Alternate Part Number MI-01231459, Alternate Part Number MINO-00407X70044
Product Weight
0.04 lbs

Similar Products

Model Number Code TUFB I.D. O.D. Height Price Action
Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.00 Inch Height

VS20004X100 Vee Packing Set

1231

2 in

2.5 in

1

Vee Packing Set, 1.13 Inch OD, 0.63 Inch ID, 1.00 Inch Height

VS06204X100 Vee Packing Set

1051

0.625 in

1.125 in

1

Vee Packing Set, 1.25 Inch OD, 0.75 Inch ID, 1.00 Inch Height

VS07504X100 Vee Packing Set

1051

0.75 in

1.25 in

1

Vee Packing Set, 1.31 Inch OD, 0.81 Inch ID, 0.88 Inch Height

VS08104X087 Vee Packing Set

1041

0.8125 in

1.313 in

0.875

Vee Packing Set, 1.38 Inch OD, 0.88 Inch ID, 1.00 Inch Height

VS08704X100 Vee Packing Set

1041

0.875 in

1.375 in

1

Vee Packing Set, 1.38 Inch OD, 1.00 Inch ID, 0.95 Inch Height

VS10003X095 Vee Packing Set

1231

1 in

1.375 in

0.953

Vee Packing Set, 1.63 Inch OD, 1.00 Inch ID, 0.03 Inch Height

VS10005X103 Vee Packing Set

1041

1 in

1.625 in

0.031

Vee Packing Set, 1.63 Inch OD, 1.13 Inch ID, 0.88 Inch Height

VS11204X087 Vee Packing Set

1041

1.125 in

1.625 in

0.875

Vee Packing Set, 1.75 Inch OD, 1.25 Inch ID, 0.81 Inch Height

VS12504X082 Vee Packing Set

1221

1.25 in

1.75 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 0.81 Inch Height

VS15004X082 Vee Packing Set

1041

1.5 in

2 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.00 Inch Height

VS15004X100 Vee Packing Set

1231

1.5 in

2 in

1

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.13 Inch Height

VS15004X112 Vee Packing Set

1241

1.5 in

2 in

1.125

Vee Packing Set, 2.25 Inch OD, 1.63 Inch ID, 0.03 Inch Height

VS16205X103 Vee Packing Set

1041

1.625 in

2.25 in

0.031

Vee Packing Set, 2.25 Inch OD, 1.75 Inch ID, 1.00 Inch Height

VS17504X100 Vee Packing Set

1051

1.75 in

2.25 in

1

Vee Packing Set, 2.38 Inch OD, 1.75 Inch ID, 0.03 Inch Height

VS17505X103 Vee Packing Set

1221

1.75 in

2.375 in

0.031

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 0.88 Inch Height

VS20004X087 Vee Packing Set

1221

2 in

2.5 in

0.875

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.13 Inch Height

VS20004X112 Vee Packing Set

1331

2 in

2.5 in

1.125

Vee Packing Set, 2.63 Inch OD, 2.00 Inch ID, 0.03 Inch Height

VS20005X103 Vee Packing Set

1041

2 in

2.625 in

0.031

Vee Packing Set, 2.75 Inch OD, 2.00 Inch ID, 0.19 Inch Height

VS20006X118 Vee Packing Set

1221

2 in

2.75 in

0.188

Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 0.81 Inch Height

VS22504X082 Vee Packing Set

1131

2.25 in

2.75 in

0.8125

Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 1.00 Inch Height

VS22504X100 Vee Packing Set

1231

2.25 in

2.75 in

1

Vee Packing Set, 2.88 Inch OD, 2.25 Inch ID, 0.03 Inch Height

VS22505X103 Vee Packing Set

1041

2.25 in

2.875 in

0.031

Vee Packing Set, 3.00 Inch OD, 2.25 Inch ID, 1.00 Inch Height

VS22506X100 Vee Packing Set

1031

2.25 in

3 in

1

Vee Packing Set, 3.00 Inch OD, 2.50 Inch ID, 0.81 Inch Height

VS25004X082 Vee Packing Set

1041

2.5 in

3 in

0.8125

Vee Packing Set, 3.50 Inch OD, 2.75 Inch ID, 0.19 Inch Height

VS27506X118 Vee Packing Set

1221

2.75 in

3.5 in

0.188

Vee Packing Set, 3.50 Inch OD, 3.00 Inch ID, 0.88 Inch Height

VS30004X087 Vee Packing Set

1041

3 in

3.5 in

0.875

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 0.19 Inch Height

VS32506X118 Vee Packing Set

1041

3.25 in

4 in

0.188

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 1.38 Inch Height

VS32506X137 Vee Packing Set

1051

3.25 in

4 in

1.375

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 0.75 Inch Height

VS35004X075 Vee Packing Set

1121

3.5 in

4 in

0.75

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 1.00 Inch Height

VS35004X100 Vee Packing Set

1231

3.5 in

4 in

1

Vee Packing Set, 4.25 Inch OD, 3.75 Inch ID, 1.00 Inch Height

VS37504X100 Vee Packing Set

1231

3.75 in

4.25 in

1

Vee Packing Set, 4.50 Inch OD, 3.75 Inch ID, 0.19 Inch Height

VS37506X118 Vee Packing Set

1221

3.75 in

4.5 in

0.188

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.00 Inch Height

VS40004X100 Vee Packing Set

1231

4 in

4.5 in

1

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.13 Inch Height

VS40004X112 Vee Packing Set

1241

4 in

4.5 in

1.125

Vee Packing Set, 5.00 Inch OD, 4.50 Inch ID, 1.00 Inch Height

VS45004X100 Vee Packing Set

1051

4.5 in

5 in

1

Vee Packing Set, 5.50 Inch OD, 4.75 Inch ID, 0.19 Inch Height

VS47506X118 Vee Packing Set

1221

4.75 in

5.5 in

0.188

Vee Packing Set, 5.50 Inch OD, 5.00 Inch ID, 1.13 Inch Height

VS50004X112 Vee Packing Set

1241

5 in

5.5 in

1.125

Vee Packing Set, 6.50 Inch OD, 6.00 Inch ID, 1.00 Inch Height

VS60004X100 Vee Packing Set

1231

6 in

6.5 in

1

Vee Packing Set, 7.50 Inch OD, 7.00 Inch ID, 1.00 Inch Height

VS70004X100 Vee Packing Set

1231

7 in

7.5 in

1

Product Questions & Answers (3)

Question by: Denise G on Jul 27, 2025, 8:52 AM
got a cylinder gland set up for a 1.00" rod and 1.50" bore. is this packing gonna drop in or am i trimming it down
Answer by: Customer Support on Jul 29, 2025, 6:29 AM
With a 1.00 inch ID, 1.50 inch OD, and 1.00 inch height, it’s meant to fit those dimensions as-is, with no trimming or modification required.
Question by: Merle C on Nov 26, 2025, 2:29 PM
how do i know how many vee rings i need for my cylinder setup, is there a rule for that
Answer by: Customer Support on Nov 27, 2025, 3:06 PM
Pressure requirements drive the count. Four vees in the stack handles up to 3,000 PSI, five vees gets you up to 5,000 PSI, and six vees covers up to 10,000 PSI. The set uses a combination of urethane and fabric-reinforced rubber vee rings along with nylon adaptors on top and bottom, so the number of vee rings you include is what scales the pressure rating up or down. Once you know your working pressure, you can configure the stack accordingly without needing to modify any of the components.
Question by: Lyle P on Apr 9, 2025, 2:28 PM
What's the deal with the different number of vees in this packing set? Like, what's that all about?
Answer by: Customer Support on Apr 11, 2025, 12:09 PM
Those vee rings let you adjust the pressure rating. Four vees will handle up to 3,000 PSI, five vees go up to 5,000 PSI, and six vees can manage up to 10,000 PSI.
