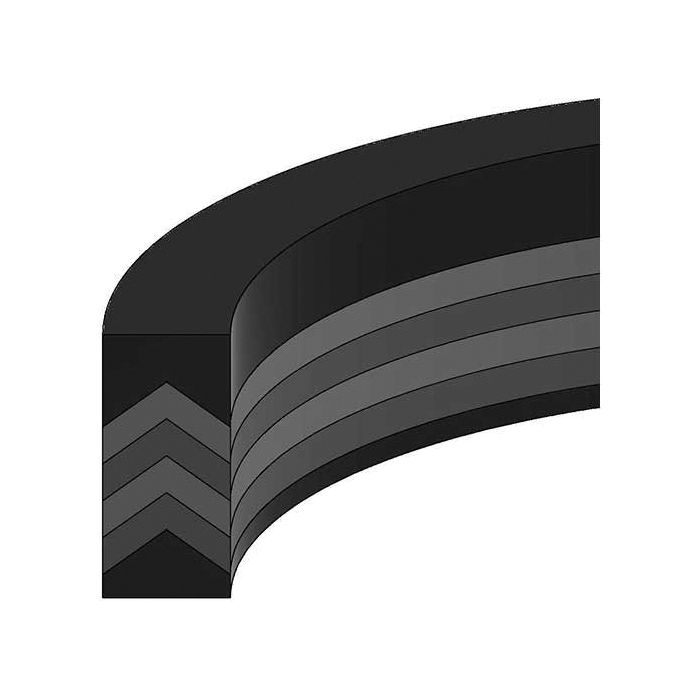

Vee Packing Set, 2.25 Inch OD, 1.63 Inch ID, 0.03 Inch Height

Ask A Question

Description & Features

Designed for demanding hydraulic applications, the Hercules Vee Packing Set offers reliable sealing with a 2.25-inch outer diameter and a 1.63-inch inner diameter. Crafted from fabric-reinforced rubber and urethane, this set ensures durability and resilience in high-pressure environments. The set's nylon top and bottom adaptors, along with the urethane and fabric vee rings, provide a secure fit for pressure ranges from 0 to 10,000 PSI, depending on the configuration of vees used.

Operating efficiently within a temperature range of -65°F to 220°F, this packing set is versatile for various industrial uses. Each component is engineered to withstand arduous conditions, making it an excellent choice for maintaining system integrity under fluctuating pressures and temperatures.

SKU: VS16205X103

Supplier Part Number (MPN): VS16205X103

Alternate Part Numbers: C1DR83

Specifications

Code TUFB
1041
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Height
0.03
I.D.
1.625 in
O.D.
2.25 in
Supplier Part Number
VS16205X103
Alternate Part Numbers
Alternate Part Number C1DR83
Product Weight
0.09 lbs

Similar Products

Model Number Code TUFB I.D. O.D. Height Price Action
Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.00 Inch Height

VS20004X100 Vee Packing Set

1231

2 in

2.5 in

1

Vee Packing Set, 1.13 Inch OD, 0.63 Inch ID, 1.00 Inch Height

VS06204X100 Vee Packing Set

1051

0.625 in

1.125 in

1

Vee Packing Set, 1.25 Inch OD, 0.75 Inch ID, 1.00 Inch Height

VS07504X100 Vee Packing Set

1051

0.75 in

1.25 in

1

Vee Packing Set, 1.31 Inch OD, 0.81 Inch ID, 0.88 Inch Height

VS08104X087 Vee Packing Set

1041

0.8125 in

1.313 in

0.875

Vee Packing Set, 1.38 Inch OD, 0.88 Inch ID, 1.00 Inch Height

VS08704X100 Vee Packing Set

1041

0.875 in

1.375 in

1

Vee Packing Set, 1.38 Inch OD, 1.00 Inch ID, 0.95 Inch Height

VS10003X095 Vee Packing Set

1231

1 in

1.375 in

0.953

Vee Packing Set, 1.50 Inch OD, 1.00 Inch ID, 1.00 Inch Height

VS10004X100 Vee Packing Set

1051

1 in

1.5 in

1

Vee Packing Set, 1.63 Inch OD, 1.00 Inch ID, 0.03 Inch Height

VS10005X103 Vee Packing Set

1041

1 in

1.625 in

0.031

Vee Packing Set, 1.63 Inch OD, 1.13 Inch ID, 0.88 Inch Height

VS11204X087 Vee Packing Set

1041

1.125 in

1.625 in

0.875

Vee Packing Set, 1.75 Inch OD, 1.25 Inch ID, 0.81 Inch Height

VS12504X082 Vee Packing Set

1221

1.25 in

1.75 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 0.81 Inch Height

VS15004X082 Vee Packing Set

1041

1.5 in

2 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.00 Inch Height

VS15004X100 Vee Packing Set

1231

1.5 in

2 in

1

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.13 Inch Height

VS15004X112 Vee Packing Set

1241

1.5 in

2 in

1.125

Vee Packing Set, 2.25 Inch OD, 1.63 Inch ID, 0.03 Inch Height

VS16205X103 Vee Packing Set

1041

1.625 in

2.25 in

0.031

Vee Packing Set, 2.25 Inch OD, 1.75 Inch ID, 1.00 Inch Height

VS17504X100 Vee Packing Set

1051

1.75 in

2.25 in

1

Vee Packing Set, 2.38 Inch OD, 1.75 Inch ID, 0.03 Inch Height

VS17505X103 Vee Packing Set

1221

1.75 in

2.375 in

0.031

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 0.88 Inch Height

VS20004X087 Vee Packing Set

1221

2 in

2.5 in

0.875

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.13 Inch Height

VS20004X112 Vee Packing Set

1331

2 in

2.5 in

1.125

Vee Packing Set, 2.63 Inch OD, 2.00 Inch ID, 0.03 Inch Height

VS20005X103 Vee Packing Set

1041

2 in

2.625 in

0.031

Vee Packing Set, 2.75 Inch OD, 2.00 Inch ID, 0.19 Inch Height

VS20006X118 Vee Packing Set

1221

2 in

2.75 in

0.188

Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 0.81 Inch Height

VS22504X082 Vee Packing Set

1131

2.25 in

2.75 in

0.8125

Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 1.00 Inch Height

VS22504X100 Vee Packing Set

1231

2.25 in

2.75 in

1

Vee Packing Set, 2.88 Inch OD, 2.25 Inch ID, 0.03 Inch Height

VS22505X103 Vee Packing Set

1041

2.25 in

2.875 in

0.031

Vee Packing Set, 3.00 Inch OD, 2.25 Inch ID, 1.00 Inch Height

VS22506X100 Vee Packing Set

1031

2.25 in

3 in

1

Vee Packing Set, 3.00 Inch OD, 2.50 Inch ID, 0.81 Inch Height

VS25004X082 Vee Packing Set

1041

2.5 in

3 in

0.8125

Vee Packing Set, 3.50 Inch OD, 2.75 Inch ID, 0.19 Inch Height

VS27506X118 Vee Packing Set

1221

2.75 in

3.5 in

0.188

Vee Packing Set, 3.50 Inch OD, 3.00 Inch ID, 0.88 Inch Height

VS30004X087 Vee Packing Set

1041

3 in

3.5 in

0.875

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 0.19 Inch Height

VS32506X118 Vee Packing Set

1041

3.25 in

4 in

0.188

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 1.38 Inch Height

VS32506X137 Vee Packing Set

1051

3.25 in

4 in

1.375

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 0.75 Inch Height

VS35004X075 Vee Packing Set

1121

3.5 in

4 in

0.75

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 1.00 Inch Height

VS35004X100 Vee Packing Set

1231

3.5 in

4 in

1

Vee Packing Set, 4.25 Inch OD, 3.75 Inch ID, 1.00 Inch Height

VS37504X100 Vee Packing Set

1231

3.75 in

4.25 in

1

Vee Packing Set, 4.50 Inch OD, 3.75 Inch ID, 0.19 Inch Height

VS37506X118 Vee Packing Set

1221

3.75 in

4.5 in

0.188

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.00 Inch Height

VS40004X100 Vee Packing Set

1231

4 in

4.5 in

1

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.13 Inch Height

VS40004X112 Vee Packing Set

1241

4 in

4.5 in

1.125

Vee Packing Set, 5.00 Inch OD, 4.50 Inch ID, 1.00 Inch Height

VS45004X100 Vee Packing Set

1051

4.5 in

5 in

1

Vee Packing Set, 5.50 Inch OD, 4.75 Inch ID, 0.19 Inch Height

VS47506X118 Vee Packing Set

1221

4.75 in

5.5 in

0.188

Vee Packing Set, 5.50 Inch OD, 5.00 Inch ID, 1.13 Inch Height

VS50004X112 Vee Packing Set

1241

5 in

5.5 in

1.125

Vee Packing Set, 6.50 Inch OD, 6.00 Inch ID, 1.00 Inch Height

VS60004X100 Vee Packing Set

1231

6 in

6.5 in

1

Vee Packing Set, 7.50 Inch OD, 7.00 Inch ID, 1.00 Inch Height

VS70004X100 Vee Packing Set

1231

7 in

7.5 in

1

Product Questions & Answers (3)

Question by: Cindy M on Apr 15, 2025, 9:27 AM
got a cylinder gland that takes a 2.25 OD and about a 1.63 ID, is this the right vee packing set size?
Answer by: Customer Support on Apr 16, 2025, 5:09 PM
The key dimensions on this set are 2.25 inch OD, 1.625 inch ID, and 0.031 inch height. If your hardware is built around those sizes, it matches the physical sizing of this packing set.
Question by: Wade T on May 26, 2025, 7:26 AM
Reckon this would hold up in a hydraulic system pushing close to 3000 PSI?
Answer by: Customer Support on May 27, 2025, 2:07 PM
these vee packings are rated to handle pressure from 0 to 3000 PSI when you're running four vees. You'll be good to go!
Question by: Larry R on Apr 3, 2026, 11:49 AM
what's the pressure rating on this packing set, and does the number of vee rings actually change that?
Answer by: Customer Support on Apr 5, 2026, 10:08 AM
the number of vees matters quite a bit here. Four vees gets you up to 3,000 PSI, five vees bumps that up to 5,000 PSI, and if you're running six vees you can push all the way to 10,000 PSI. The set uses urethane and fabric vee rings along with nylon top and bottom adaptors, so how you configure those rings determines what pressure range you're working in.
