Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 1.00 Inch Height

Ask A Question

Description & Features

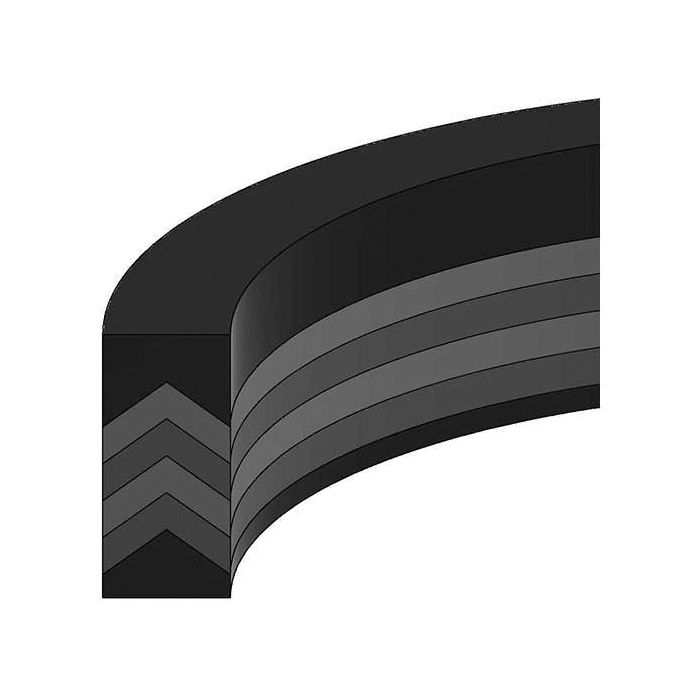

Designed for hydraulic cylinder and rod sealing applications, this Vee Packing Set from Hercules Sealing Products measures 2.75 inches OD, 2.25 inches ID, and 1.00 inch in height. The set is built from fabric-reinforced rubber and urethane vee rings, paired with nylon top and bottom adaptors, a combination that supports reliable sealing across a wide range of operating conditions.

The Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 1.00 Inch Height is rated for pressures from 0 to 3,000 PSI with four vees, up to 5,000 PSI with five vees, and up to 10,000 PSI with six vees, making it adaptable to varying system demands. The temperature range spans -65°F to 220°F. When ordering, the catalog code sequence indicates the quantity of top nylon adaptors, urethane vee rings, fabric vee rings, and bottom nylon adaptors respectively.

SKU: VS22504X100

Supplier Part Number (MPN): VS22504X100

Alternate Part Numbers: C1DR95

Specifications

Brand
HERCULES® SEALING PRODUCTS
Additional Information
0 to 10000 psi Pressure Rating
Code TUFB
1231
Dimensions
1 in H
Grp Pressure Range
0 to 3000 psi (4 Vees), 0 to 5000 psi (5 Vees), 0 to 10000 psi (6 Vees)
Material
Nylon/Urethane

Similar Products

Model Number Code TUFB I.D. O.D. Height Price Action
Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.00 Inch Height

VS20004X100 Vee Packing Set

1231

2 in

2.5 in

1

Vee Packing Set, 1.13 Inch OD, 0.63 Inch ID, 1.00 Inch Height

VS06204X100 Vee Packing Set

1051

0.625 in

1.125 in

1

Vee Packing Set, 1.25 Inch OD, 0.75 Inch ID, 1.00 Inch Height

VS07504X100 Vee Packing Set

1051

0.75 in

1.25 in

1

Vee Packing Set, 1.31 Inch OD, 0.81 Inch ID, 0.88 Inch Height

VS08104X087 Vee Packing Set

1041

0.8125 in

1.313 in

0.875

Vee Packing Set, 1.38 Inch OD, 0.88 Inch ID, 1.00 Inch Height

VS08704X100 Vee Packing Set

1041

0.875 in

1.375 in

1

Vee Packing Set, 1.38 Inch OD, 1.00 Inch ID, 0.95 Inch Height

VS10003X095 Vee Packing Set

1231

1 in

1.375 in

0.953

Vee Packing Set, 1.50 Inch OD, 1.00 Inch ID, 1.00 Inch Height

VS10004X100 Vee Packing Set

1051

1 in

1.5 in

1

Vee Packing Set, 1.63 Inch OD, 1.00 Inch ID, 0.03 Inch Height

VS10005X103 Vee Packing Set

1041

1 in

1.625 in

0.031

Vee Packing Set, 1.63 Inch OD, 1.13 Inch ID, 0.88 Inch Height

VS11204X087 Vee Packing Set

1041

1.125 in

1.625 in

0.875

Vee Packing Set, 1.75 Inch OD, 1.25 Inch ID, 0.81 Inch Height

VS12504X082 Vee Packing Set

1221

1.25 in

1.75 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 0.81 Inch Height

VS15004X082 Vee Packing Set

1041

1.5 in

2 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.00 Inch Height

VS15004X100 Vee Packing Set

1231

1.5 in

2 in

1

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.13 Inch Height

VS15004X112 Vee Packing Set

1241

1.5 in

2 in

1.125

Vee Packing Set, 2.25 Inch OD, 1.63 Inch ID, 0.03 Inch Height

VS16205X103 Vee Packing Set

1041

1.625 in

2.25 in

0.031

Vee Packing Set, 2.25 Inch OD, 1.75 Inch ID, 1.00 Inch Height

VS17504X100 Vee Packing Set

1051

1.75 in

2.25 in

1

Vee Packing Set, 2.38 Inch OD, 1.75 Inch ID, 0.03 Inch Height

VS17505X103 Vee Packing Set

1221

1.75 in

2.375 in

0.031

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 0.88 Inch Height

VS20004X087 Vee Packing Set

1221

2 in

2.5 in

0.875

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.13 Inch Height

VS20004X112 Vee Packing Set

1331

2 in

2.5 in

1.125

Vee Packing Set, 2.63 Inch OD, 2.00 Inch ID, 0.03 Inch Height

VS20005X103 Vee Packing Set

1041

2 in

2.625 in

0.031

Vee Packing Set, 2.75 Inch OD, 2.00 Inch ID, 0.19 Inch Height

VS20006X118 Vee Packing Set

1221

2 in

2.75 in

0.188

Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 0.81 Inch Height

VS22504X082 Vee Packing Set

1131

2.25 in

2.75 in

0.8125

Vee Packing Set, 2.88 Inch OD, 2.25 Inch ID, 0.03 Inch Height

VS22505X103 Vee Packing Set

1041

2.25 in

2.875 in

0.031

Vee Packing Set, 3.00 Inch OD, 2.25 Inch ID, 1.00 Inch Height

VS22506X100 Vee Packing Set

1031

2.25 in

3 in

1

Vee Packing Set, 3.00 Inch OD, 2.50 Inch ID, 0.81 Inch Height

VS25004X082 Vee Packing Set

1041

2.5 in

3 in

0.8125

Vee Packing Set, 3.50 Inch OD, 2.75 Inch ID, 0.19 Inch Height

VS27506X118 Vee Packing Set

1221

2.75 in

3.5 in

0.188

Vee Packing Set, 3.50 Inch OD, 3.00 Inch ID, 0.88 Inch Height

VS30004X087 Vee Packing Set

1041

3 in

3.5 in

0.875

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 0.19 Inch Height

VS32506X118 Vee Packing Set

1041

3.25 in

4 in

0.188

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 1.38 Inch Height

VS32506X137 Vee Packing Set

1051

3.25 in

4 in

1.375

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 0.75 Inch Height

VS35004X075 Vee Packing Set

1121

3.5 in

4 in

0.75

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 1.00 Inch Height

VS35004X100 Vee Packing Set

1231

3.5 in

4 in

1

Vee Packing Set, 4.25 Inch OD, 3.75 Inch ID, 1.00 Inch Height

VS37504X100 Vee Packing Set

1231

3.75 in

4.25 in

1

Vee Packing Set, 4.50 Inch OD, 3.75 Inch ID, 0.19 Inch Height

VS37506X118 Vee Packing Set

1221

3.75 in

4.5 in

0.188

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.00 Inch Height

VS40004X100 Vee Packing Set

1231

4 in

4.5 in

1

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.13 Inch Height

VS40004X112 Vee Packing Set

1241

4 in

4.5 in

1.125

Vee Packing Set, 5.00 Inch OD, 4.50 Inch ID, 1.00 Inch Height

VS45004X100 Vee Packing Set

1051

4.5 in

5 in

1

Vee Packing Set, 5.50 Inch OD, 4.75 Inch ID, 0.19 Inch Height

VS47506X118 Vee Packing Set

1221

4.75 in

5.5 in

0.188

Vee Packing Set, 5.50 Inch OD, 5.00 Inch ID, 1.13 Inch Height

VS50004X112 Vee Packing Set

1241

5 in

5.5 in

1.125

Vee Packing Set, 6.50 Inch OD, 6.00 Inch ID, 1.00 Inch Height

VS60004X100 Vee Packing Set

1231

6 in

6.5 in

1

Vee Packing Set, 7.50 Inch OD, 7.00 Inch ID, 1.00 Inch Height

VS70004X100 Vee Packing Set

1231

7 in

7.5 in

1

Product Questions & Answers (3)

Question by: Marvin C on Dec 20, 2025, 5:38 PM
What kind of pressure can this handle on a hydraulic cylinder?
Answer by: Customer Support on Dec 22, 2025, 9:36 AM
This Vee packing set is rated to handle pressures from 0 to 3,000 PSI with four vees. It can go up to 5,000 PSI with five vees, and even up to 10,000 PSI if you use six vees.
Question by: Donna E on May 10, 2025, 1:08 PM
trying to match up a vee packing set i pulled out, what sizes does this one come in?
Answer by: Customer Support on May 12, 2025, 6:16 AM
The set measures 2.75 inch OD, 2.25 inch ID, and 1.00 inch height.
Question by: Danny B on Jul 26, 2025, 5:51 PM
Got a 2-1/4 inch rod on a cylinder that needs new packing. This set got the right dimensions for that?
Answer by: Customer Support on Jul 28, 2025, 6:37 AM
For a 2.25 inch rod, the ID on this set matches up exactly. The OD runs 2.75 inches and the overall height stacks out at 1.00 inch, so as long as your gland or stuffing box is bored to accept those dimensions, you're in good shape. Just confirm your housing bore is 2.75 inches before ordering.
