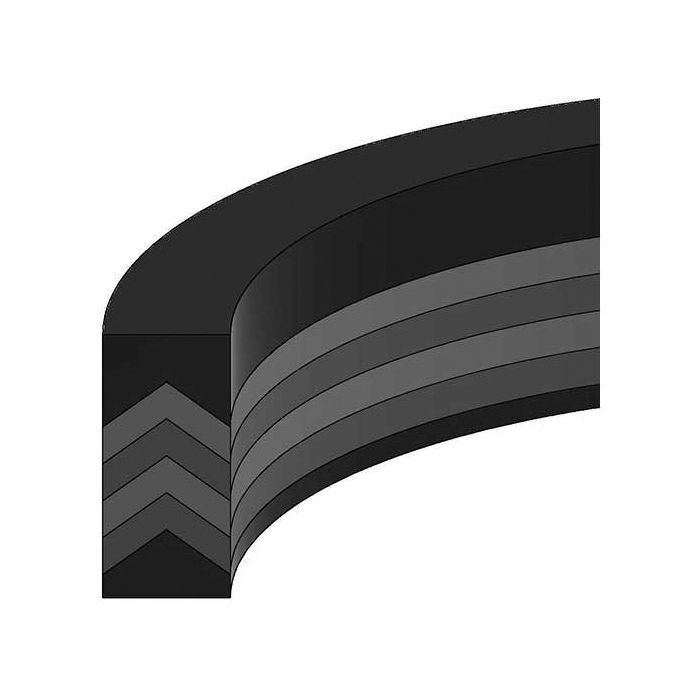

Vee Packing Set, 3.00 Inch OD, 2.25 Inch ID, 1.00 Inch Height

Ask A Question

Description & Features

This Hercules Vee Packing Set features fabric reinforced rubber and urethane vee rings, along with nylon top and bottom adaptors. It can withstand a pressure range of 0 to 3000 PSI with 4 vees, 0 to 5000 PSI with 5 vees, and 0 to 10,000 PSI with 6 vees. Suitable for applications within a temperature range of -65°F to 220°F, the Vee Packing Set has an OD of 3.00 inches, an ID of 2.25 inches, and a height of 1.00 inch.

This packing set is identified by catalog number C1DR97 and Code Tufb 1031.

SKU: VS22506X100

Supplier Part Number (MPN): VS22506X100

Alternate Part Numbers: C1DR97

Specifications

Brand
HERCULES® SEALING PRODUCTS
Additional Information
0 to 10000 psi Pressure Rating
Code TUFB
1031
Dimensions
1 in H
Grp Pressure Range
0 to 3000 psi (4 Vees), 0 to 5000 psi (5 Vees), 0 to 10000 psi (6 Vees)
Material
Nylon/Urethane

Similar Products

Model Number Code TUFB I.D. O.D. Height Price Action
Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.00 Inch Height

VS20004X100 Vee Packing Set

1231

2 in

2.5 in

1

Vee Packing Set, 1.13 Inch OD, 0.63 Inch ID, 1.00 Inch Height

VS06204X100 Vee Packing Set

1051

0.625 in

1.125 in

1

Vee Packing Set, 1.25 Inch OD, 0.75 Inch ID, 1.00 Inch Height

VS07504X100 Vee Packing Set

1051

0.75 in

1.25 in

1

Vee Packing Set, 1.31 Inch OD, 0.81 Inch ID, 0.88 Inch Height

VS08104X087 Vee Packing Set

1041

0.8125 in

1.313 in

0.875

Vee Packing Set, 1.38 Inch OD, 0.88 Inch ID, 1.00 Inch Height

VS08704X100 Vee Packing Set

1041

0.875 in

1.375 in

1

Vee Packing Set, 1.38 Inch OD, 1.00 Inch ID, 0.95 Inch Height

VS10003X095 Vee Packing Set

1231

1 in

1.375 in

0.953

Vee Packing Set, 1.50 Inch OD, 1.00 Inch ID, 1.00 Inch Height

VS10004X100 Vee Packing Set

1051

1 in

1.5 in

1

Vee Packing Set, 1.63 Inch OD, 1.00 Inch ID, 0.03 Inch Height

VS10005X103 Vee Packing Set

1041

1 in

1.625 in

0.031

Vee Packing Set, 1.63 Inch OD, 1.13 Inch ID, 0.88 Inch Height

VS11204X087 Vee Packing Set

1041

1.125 in

1.625 in

0.875

Vee Packing Set, 1.75 Inch OD, 1.25 Inch ID, 0.81 Inch Height

VS12504X082 Vee Packing Set

1221

1.25 in

1.75 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 0.81 Inch Height

VS15004X082 Vee Packing Set

1041

1.5 in

2 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.00 Inch Height

VS15004X100 Vee Packing Set

1231

1.5 in

2 in

1

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.13 Inch Height

VS15004X112 Vee Packing Set

1241

1.5 in

2 in

1.125

Vee Packing Set, 2.25 Inch OD, 1.63 Inch ID, 0.03 Inch Height

VS16205X103 Vee Packing Set

1041

1.625 in

2.25 in

0.031

Vee Packing Set, 2.25 Inch OD, 1.75 Inch ID, 1.00 Inch Height

VS17504X100 Vee Packing Set

1051

1.75 in

2.25 in

1

Vee Packing Set, 2.38 Inch OD, 1.75 Inch ID, 0.03 Inch Height

VS17505X103 Vee Packing Set

1221

1.75 in

2.375 in

0.031

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 0.88 Inch Height

VS20004X087 Vee Packing Set

1221

2 in

2.5 in

0.875

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.13 Inch Height

VS20004X112 Vee Packing Set

1331

2 in

2.5 in

1.125

Vee Packing Set, 2.63 Inch OD, 2.00 Inch ID, 0.03 Inch Height

VS20005X103 Vee Packing Set

1041

2 in

2.625 in

0.031

Vee Packing Set, 2.75 Inch OD, 2.00 Inch ID, 0.19 Inch Height

VS20006X118 Vee Packing Set

1221

2 in

2.75 in

0.188

Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 0.81 Inch Height

VS22504X082 Vee Packing Set

1131

2.25 in

2.75 in

0.8125

Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 1.00 Inch Height

VS22504X100 Vee Packing Set

1231

2.25 in

2.75 in

1

Vee Packing Set, 2.88 Inch OD, 2.25 Inch ID, 0.03 Inch Height

VS22505X103 Vee Packing Set

1041

2.25 in

2.875 in

0.031

Vee Packing Set, 3.00 Inch OD, 2.50 Inch ID, 0.81 Inch Height

VS25004X082 Vee Packing Set

1041

2.5 in

3 in

0.8125

Vee Packing Set, 3.50 Inch OD, 2.75 Inch ID, 0.19 Inch Height

VS27506X118 Vee Packing Set

1221

2.75 in

3.5 in

0.188

Vee Packing Set, 3.50 Inch OD, 3.00 Inch ID, 0.88 Inch Height

VS30004X087 Vee Packing Set

1041

3 in

3.5 in

0.875

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 0.19 Inch Height

VS32506X118 Vee Packing Set

1041

3.25 in

4 in

0.188

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 1.38 Inch Height

VS32506X137 Vee Packing Set

1051

3.25 in

4 in

1.375

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 0.75 Inch Height

VS35004X075 Vee Packing Set

1121

3.5 in

4 in

0.75

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 1.00 Inch Height

VS35004X100 Vee Packing Set

1231

3.5 in

4 in

1

Vee Packing Set, 4.25 Inch OD, 3.75 Inch ID, 1.00 Inch Height

VS37504X100 Vee Packing Set

1231

3.75 in

4.25 in

1

Vee Packing Set, 4.50 Inch OD, 3.75 Inch ID, 0.19 Inch Height

VS37506X118 Vee Packing Set

1221

3.75 in

4.5 in

0.188

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.00 Inch Height

VS40004X100 Vee Packing Set

1231

4 in

4.5 in

1

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.13 Inch Height

VS40004X112 Vee Packing Set

1241

4 in

4.5 in

1.125

Vee Packing Set, 5.00 Inch OD, 4.50 Inch ID, 1.00 Inch Height

VS45004X100 Vee Packing Set

1051

4.5 in

5 in

1

Vee Packing Set, 5.50 Inch OD, 4.75 Inch ID, 0.19 Inch Height

VS47506X118 Vee Packing Set

1221

4.75 in

5.5 in

0.188

Vee Packing Set, 5.50 Inch OD, 5.00 Inch ID, 1.13 Inch Height

VS50004X112 Vee Packing Set

1241

5 in

5.5 in

1.125

Vee Packing Set, 6.50 Inch OD, 6.00 Inch ID, 1.00 Inch Height

VS60004X100 Vee Packing Set

1231

6 in

6.5 in

1

Vee Packing Set, 7.50 Inch OD, 7.00 Inch ID, 1.00 Inch Height

VS70004X100 Vee Packing Set

1231

7 in

7.5 in

1
