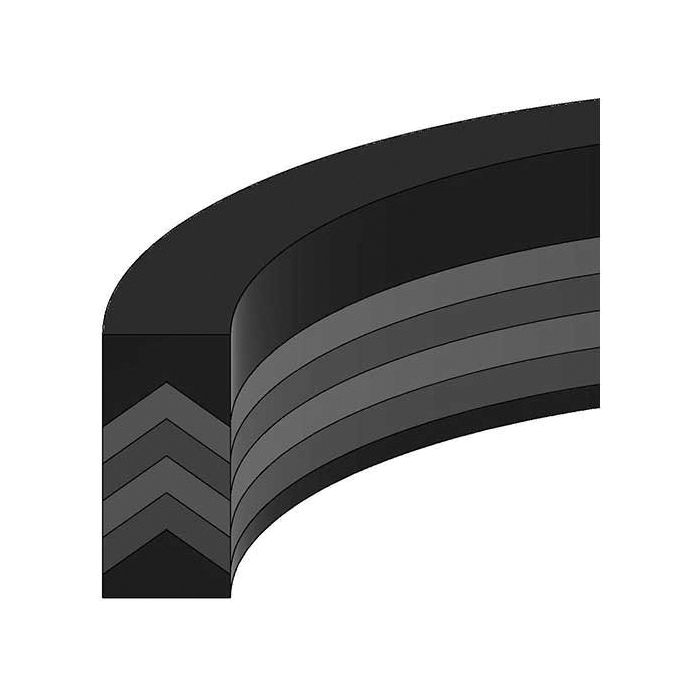

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 1.38 Inch Height

Ask A Question

Description & Features

Rated for use across a broad pressure range, from standard hydraulic duty up to 10,000 PSI depending on the number of vee rings specified, this Vee Packing Set from Hercules Sealing Products is built for demanding linear sealing applications in cylinders and actuators. The set measures 4.00 inches OD, 3.25 inches ID, and 1.38 inches in height.

Construction combines fabric-reinforced rubber and urethane vee rings with nylon top and bottom adaptors, providing a balanced mix of flexibility and structural integrity across a service temperature range of -65°F to 220°F. The Hercules catalog number C1DS20 identifies the specific ring configuration: the code sequence indicates the quantity of top nylon adaptors, urethane vee rings, fabric vee rings, and bottom nylon adaptors in that order.

This set is well suited for hydraulic cylinder rod and piston sealing where adjustable or stacked vee packing arrangements are required.

SKU: VS32506X137

Supplier Part Number (MPN): VS32506X137

Alternate Part Numbers: C1DS20

Specifications

Code TUFB
1051
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Height
1.38
I.D.
3.25 in
O.D.
4 in
Supplier Part Number
VS32506X137
Alternate Part Numbers
Alternate Part Number C1DS20
Product Weight
0.14 lbs

Similar Products

Model Number Code TUFB I.D. O.D. Height Price Action
Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.00 Inch Height

VS20004X100 Vee Packing Set

1231

2 in

2.5 in

1

Vee Packing Set, 1.13 Inch OD, 0.63 Inch ID, 1.00 Inch Height

VS06204X100 Vee Packing Set

1051

0.625 in

1.125 in

1

Vee Packing Set, 1.25 Inch OD, 0.75 Inch ID, 1.00 Inch Height

VS07504X100 Vee Packing Set

1051

0.75 in

1.25 in

1

Vee Packing Set, 1.31 Inch OD, 0.81 Inch ID, 0.88 Inch Height

VS08104X087 Vee Packing Set

1041

0.8125 in

1.313 in

0.875

Vee Packing Set, 1.38 Inch OD, 0.88 Inch ID, 1.00 Inch Height

VS08704X100 Vee Packing Set

1041

0.875 in

1.375 in

1

Vee Packing Set, 1.38 Inch OD, 1.00 Inch ID, 0.95 Inch Height

VS10003X095 Vee Packing Set

1231

1 in

1.375 in

0.953

Vee Packing Set, 1.50 Inch OD, 1.00 Inch ID, 1.00 Inch Height

VS10004X100 Vee Packing Set

1051

1 in

1.5 in

1

Vee Packing Set, 1.63 Inch OD, 1.00 Inch ID, 0.03 Inch Height

VS10005X103 Vee Packing Set

1041

1 in

1.625 in

0.031

Vee Packing Set, 1.63 Inch OD, 1.13 Inch ID, 0.88 Inch Height

VS11204X087 Vee Packing Set

1041

1.125 in

1.625 in

0.875

Vee Packing Set, 1.75 Inch OD, 1.25 Inch ID, 0.81 Inch Height

VS12504X082 Vee Packing Set

1221

1.25 in

1.75 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 0.81 Inch Height

VS15004X082 Vee Packing Set

1041

1.5 in

2 in

0.8125

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.00 Inch Height

VS15004X100 Vee Packing Set

1231

1.5 in

2 in

1

Vee Packing Set, 2.00 Inch OD, 1.50 Inch ID, 1.13 Inch Height

VS15004X112 Vee Packing Set

1241

1.5 in

2 in

1.125

Vee Packing Set, 2.25 Inch OD, 1.63 Inch ID, 0.03 Inch Height

VS16205X103 Vee Packing Set

1041

1.625 in

2.25 in

0.031

Vee Packing Set, 2.25 Inch OD, 1.75 Inch ID, 1.00 Inch Height

VS17504X100 Vee Packing Set

1051

1.75 in

2.25 in

1

Vee Packing Set, 2.38 Inch OD, 1.75 Inch ID, 0.03 Inch Height

VS17505X103 Vee Packing Set

1221

1.75 in

2.375 in

0.031

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 0.88 Inch Height

VS20004X087 Vee Packing Set

1221

2 in

2.5 in

0.875

Vee Packing Set, 2.50 Inch OD, 2.00 Inch ID, 1.13 Inch Height

VS20004X112 Vee Packing Set

1331

2 in

2.5 in

1.125

Vee Packing Set, 2.63 Inch OD, 2.00 Inch ID, 0.03 Inch Height

VS20005X103 Vee Packing Set

1041

2 in

2.625 in

0.031

Vee Packing Set, 2.75 Inch OD, 2.00 Inch ID, 0.19 Inch Height

VS20006X118 Vee Packing Set

1221

2 in

2.75 in

0.188

Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 0.81 Inch Height

VS22504X082 Vee Packing Set

1131

2.25 in

2.75 in

0.8125

Vee Packing Set, 2.75 Inch OD, 2.25 Inch ID, 1.00 Inch Height

VS22504X100 Vee Packing Set

1231

2.25 in

2.75 in

1

Vee Packing Set, 2.88 Inch OD, 2.25 Inch ID, 0.03 Inch Height

VS22505X103 Vee Packing Set

1041

2.25 in

2.875 in

0.031

Vee Packing Set, 3.00 Inch OD, 2.25 Inch ID, 1.00 Inch Height

VS22506X100 Vee Packing Set

1031

2.25 in

3 in

1

Vee Packing Set, 3.00 Inch OD, 2.50 Inch ID, 0.81 Inch Height

VS25004X082 Vee Packing Set

1041

2.5 in

3 in

0.8125

Vee Packing Set, 3.50 Inch OD, 2.75 Inch ID, 0.19 Inch Height

VS27506X118 Vee Packing Set

1221

2.75 in

3.5 in

0.188

Vee Packing Set, 3.50 Inch OD, 3.00 Inch ID, 0.88 Inch Height

VS30004X087 Vee Packing Set

1041

3 in

3.5 in

0.875

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 0.19 Inch Height

VS32506X118 Vee Packing Set

1041

3.25 in

4 in

0.188

Vee Packing Set, 4.00 Inch OD, 3.25 Inch ID, 1.38 Inch Height

VS32506X137 Vee Packing Set

1051

3.25 in

4 in

1.375

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 0.75 Inch Height

VS35004X075 Vee Packing Set

1121

3.5 in

4 in

0.75

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 1.00 Inch Height

VS35004X100 Vee Packing Set

1231

3.5 in

4 in

1

Vee Packing Set, 4.25 Inch OD, 3.75 Inch ID, 1.00 Inch Height

VS37504X100 Vee Packing Set

1231

3.75 in

4.25 in

1

Vee Packing Set, 4.50 Inch OD, 3.75 Inch ID, 0.19 Inch Height

VS37506X118 Vee Packing Set

1221

3.75 in

4.5 in

0.188

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.00 Inch Height

VS40004X100 Vee Packing Set

1231

4 in

4.5 in

1

Vee Packing Set, 4.50 Inch OD, 4.00 Inch ID, 1.13 Inch Height

VS40004X112 Vee Packing Set

1241

4 in

4.5 in

1.125

Vee Packing Set, 5.00 Inch OD, 4.50 Inch ID, 1.00 Inch Height

VS45004X100 Vee Packing Set

1051

4.5 in

5 in

1

Vee Packing Set, 5.50 Inch OD, 4.75 Inch ID, 0.19 Inch Height

VS47506X118 Vee Packing Set

1221

4.75 in

5.5 in

0.188

Vee Packing Set, 5.50 Inch OD, 5.00 Inch ID, 1.13 Inch Height

VS50004X112 Vee Packing Set

1241

5 in

5.5 in

1.125

Vee Packing Set, 6.50 Inch OD, 6.00 Inch ID, 1.00 Inch Height

VS60004X100 Vee Packing Set

1231

6 in

6.5 in

1

Vee Packing Set, 7.50 Inch OD, 7.00 Inch ID, 1.00 Inch Height

VS70004X100 Vee Packing Set

1231

7 in

7.5 in

1

Product Questions & Answers (3)

Question by: Dale T on Dec 2, 2025, 8:40 AM
trying to swap out an old packing set, are these dimensions the actual size or just “nominal”?
Answer by: Customer Support on Dec 3, 2025, 7:39 PM
Go by the stated measurements: 4.00 inch OD, 3.25 inch ID, and 1.38 inch height (listed as 1.375). Those are the physical dimensions of the set.
Question by: Merle B on Aug 1, 2025, 1:44 PM
how do i know how many vee rings to spec out for my pressure requirements on this set?
Answer by: Customer Support on Aug 3, 2025, 6:11 AM
Pressure capacity on these sets scales with the number of vee rings stacked in the assembly. Four vees handles up to 3,000 PSI, five vees gets you to 5,000 PSI, and six vees covers applications running up to 10,000 PSI. The catalog number C1DS20 tells you the exact ring count in a specific sequence: first digit is the quantity of top nylon adaptors, second is urethane vee rings, third is fabric vee rings, and fourth is bottom nylon adaptors. Match your operating pressure to the appropriate vee count before ordering so the set is built right for your application.
Question by: Daryl W on Jan 31, 2026, 7:04 AM
Reckon these'll hold up alright in a hydraulic cylinder that sees pretty steady use?
Answer by: Customer Support on Feb 2, 2026, 6:12 AM
Built for demanding linear sealing applications, this Vee Packing Set is rated up to 10,000 PSI depending on the number of vee rings you use, so it should handle steady use in a hydraulic cylinder.
