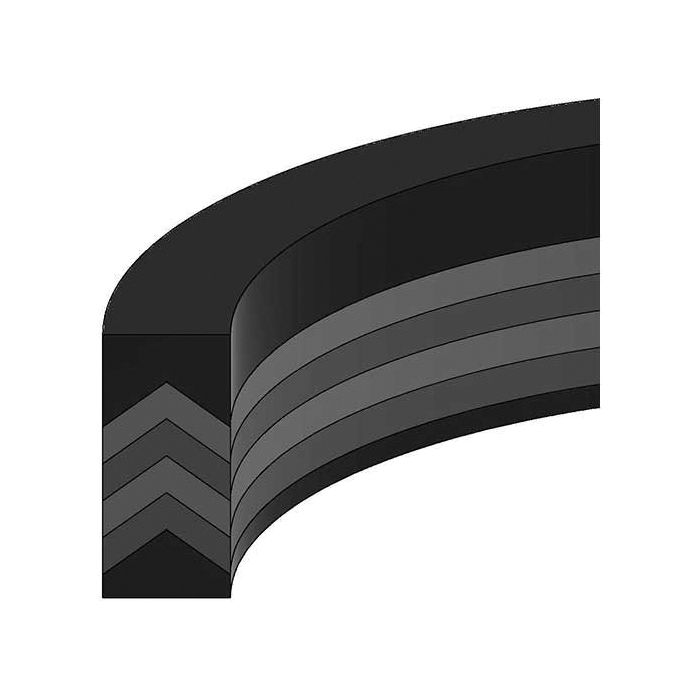

Vee Packing Set, 4.00 Inch OD, 3.50 Inch ID, 1.00 Inch Height

Ask A Question

Description & Features

Designed for demanding hydraulic cylinder and linear actuator applications, this Vee Packing Set from Hercules Sealing Products features a 4.00 inch OD, 3.50 inch ID, and 1.00 inch height. The set is constructed from fabric-reinforced rubber and urethane vee rings paired with nylon top and bottom adaptors, providing reliable sealing across a wide service range.

Rated from -65°F to 220°F, the set handles pressure from 0 to 3,000 PSI in a four-vee configuration, up to 5,000 PSI with five vees, and up to 10,000 PSI with six vees. The ordering code structure identifies the quantity of each component: top nylon adaptor, urethane vee rings, fabric vee rings, and bottom nylon adaptor, allowing the stack to be configured for the specific pressure requirements of the application.

SKU: VS35004X100

Supplier Part Number (MPN): VS35004X100

Alternate Part Numbers: C1DS22, MI-01233084, MINO-00407X70216

Specifications

Code TUFB
1231
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Height
1
I.D.
3.5 in
O.D.
4 in
Supplier Part Number
VS35004X100
Alternate Part Numbers
Alternate Part Number C1DS22, Alternate Part Number MI-01233084, Alternate Part Number MINO-00407X70216
Product Weight
0.11 lbs
