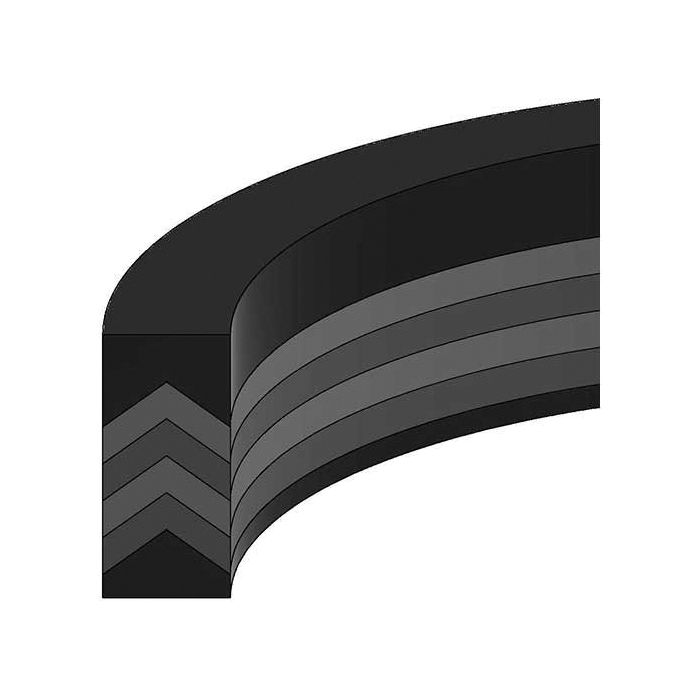

Vee Packing Set, 4.25 Inch OD, 3.75 Inch ID, 1.00 Inch Height

Ask A Question

Description & Features

Rated for pressures up to 10,000 PSI depending on configuration, this Vee Packing Set from Hercules Sealing Products is suited for hydraulic cylinder and rod sealing applications across a wide range of industrial equipment. The set measures 4.25 inches OD, 3.75 inches ID, and 1.00 inch in height, with construction consisting of fabric-reinforced rubber and urethane vee rings paired with nylon top and bottom adaptors.

The Vee Packing Set is designed to accommodate varying pressure requirements based on the number of vee rings used, four vees cover 0–3,000 PSI, five vees up to 5,000 PSI, and six vees up to 10,000 PSI. The temperature range spans -65°F to 220°F, making it suitable for both cold-start and elevated-temperature service conditions. Ordering codes indicate the quantity of each component type: top nylon adaptor, urethane vee rings, fabric vee rings, and bottom nylon adaptor, in that sequence.

SKU: VS37504X100

Supplier Part Number (MPN): VS37504X100

Alternate Part Numbers: C1DS24

Specifications

Brand
HERCULES® SEALING PRODUCTS
Additional Information
0 to 10000 psi Pressure Rating
Code TUFB
1231
Dimensions
1 in H
Grp Pressure Range
0 to 3000 psi (4 Vees), 0 to 5000 psi (5 Vees), 0 to 10000 psi (6 Vees)
Material
Nylon/Urethane
