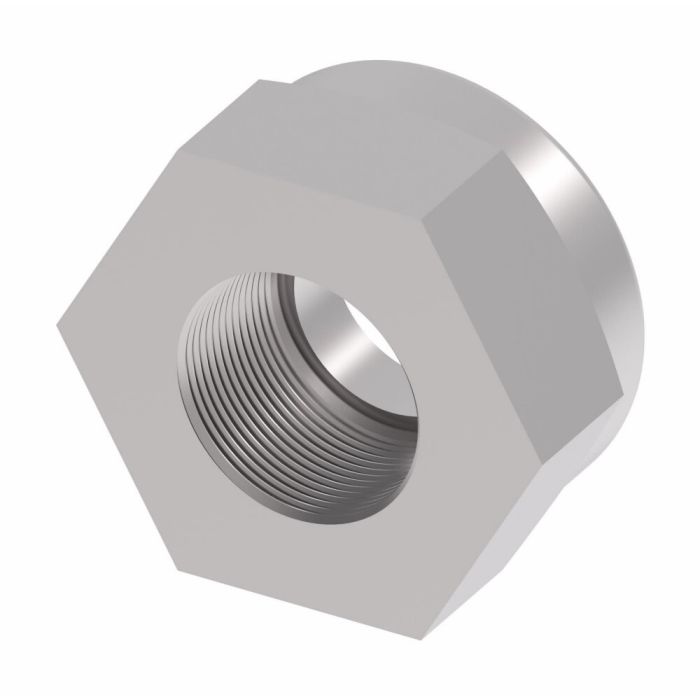

Versil Flare Flareless Tube Nut, 0.25 Inch Tube With 7/16-20 Female JIC 37 deg Flare

Ask A Question

Description & Features

The Danfoss / Eaton FC2875 Series Spare Part Flared Nut is engineered for high-performance and reliability in industrial applications. This versatile component fits a 0.25 inch tube with a 7/16-20 female JIC 37deg; flare connection. Ensure precise installation by carefully following assembly guidelines: Slide the nut and ferrule onto the tube lubricate all mating surfaces and tighten to specification. Tubing should be cut square and deburred to meet stringent industrial standards. This Versil-Flare fitting supports a minimum of 10 reassemblies making it an economical choice for repeat use. Adhere to specified hardness limits for optimal compatibility.

Product Model: Versil Flare Nuts & Ferrules

Supplier Part Number: FC2875-04S

Catalog Number: C1CR38

Specifications

A
0.82
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Series
FC2875
Supplier Part Number
FC2875-04S
Thread 2
7/16-20
Tube O.D.
0.25
Tube O.D.
0.25
Alternate Part Numbers
Alternate Part Number C1CR38, Alternate Part Number MINO-00925X15111
Product Weight
0.05 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 2 A Price Action
Versil Flare Flareless Tube Nut, 0.25 Inch Tube With 7/16-20 Female JIC 37 deg Flare

FC2875-04S Versil Flareless JIC Tube Nut

0.25

7/16-20

0.82

Versil Flare Flareless Tube Nut, 0.38 Inch Tube With 9/16-18 Female JIC 37 deg Flare

FC2875-06S Versil Flareless JIC Tube Nut

0.38

9/16-18

0.86

Versil Flare Flareless Tube Nut, 0.50 Inch Tube With 3/4-16 Female JIC 37 deg Flare

FC2875-08S Versil Flareless JIC Tube Nut

0.5

3/4-16

0.08

Versil Flare Flareless Tube Nut, 0.63 Inch Tube With 7/8-14 Female JIC 37 deg Flare

FC2875-10S Versil Flareless JIC Tube Nut

0.63

7/8-14

1.12

Product Questions & Answers (2)

Question by: Lynn S on Aug 22, 2025, 1:17 PM
Wondering if this nut will work with stainless steel tubing?
Answer by: Customer Support on Aug 23, 2025, 4:59 PM
The manufacturer recommends against using this fitting with stainless steel tubing because the tubing's hardness should not exceed Rockwell B65.
Question by: Merle G on Aug 17, 2025, 8:11 AM
got a 1/4 inch tube here, is FC2875-04S the nut that matches up to a 7/16-20 JIC 37 degree flare body?
Answer by: Customer Support on Aug 18, 2025, 6:40 PM
For a 0.25 inch tube, FC2875-04S is the correct Versil Flare nut with a 7/16-20 female JIC 37° flare connection, meant to seat against a standard JIC 37° flare body.
