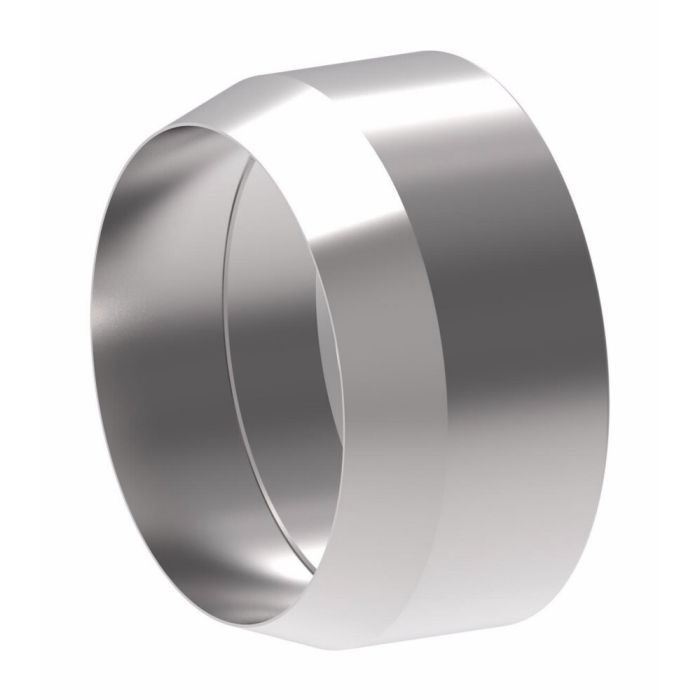

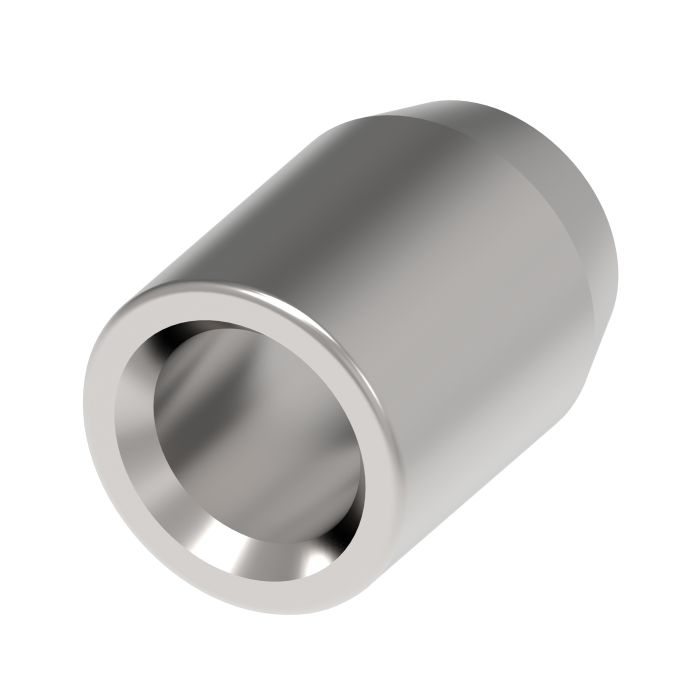

main product photo

Versil Flare Flareless Tube Ferrule For 0.38 Inch Tube

Ask A Question

Description & Features

Manufactured by Danfoss Power Solutions the Versil Flareless Tube Ferrule is designed specifically for 0.38-inch tubes. Constructed from high-quality FF9605-Series steel this adapter sleeve ensures reliable performance in various industrial applications.

To ensure optimal sealing the initial assembly requires precise tube preparation. Cut the tubing square with a maximum deviation of +/- 1deg; and deburr both internally and externally. Slide the nut and ferrule onto the tube lubricating all mating surfaces for easy installation.

Reassembly is simplified with the Versil Flaretrade; design allowing a minimum of 10 reassemblies. Tightening the nut hand tight and then marking its position before additional tightening ensures a secure fit. Only tubes with a maximum hardness of Rockwell B65 are compatible; stainless steel tubing is not approved.

Maintenance is streamlined with straightforward cleaning protocols to remove any dirt or grit. For consistent results follow the recommended procedures to achieve a strong leak-proof connection every time.

Supplier Part Number: FF9605-06S

MPN: FF9605-06S

Specifications

A
0.46
B
0.38
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Supplier Part Number
FF9605-06S
Tube O.D.
0.38
Tube O.D.
0.38
Alternate Part Numbers
Alternate Part Number C1CV65, Alternate Part Number MI-00352915, Alternate Part Number MINO-00015F87149
Product Weight
0.01 lbs

Related Documents

Similar Products

Model Number Tube O.D. A B Price Action
Versil Flare Flareless Tube Ferrule For 0.25 Inch Tube

FF9605-04S Versil Flareless Tube Ferrule

0.25

0.42

0.25

Versil Flare Flareless Tube Ferrule For 0.38 Inch Tube

FF9605-06S Versil Flareless Tube Ferrule

0.38

0.46

0.38

Versil Flare Flareless Tube Ferrule For 0.50 Inch Tube

FF9605-08S Versil Flareless Tube Ferrule

0.5

0.57

0.5

Versil Flare Flareless Tube Ferrule For 0.63 Inch Tube

FF9605-10S Versil Flareless Tube Ferrule

0.63

0.58

0.62

Versil Flare Flareless Tube Ferrule For 0.75 Inch Tube

FF9605-12S Versil Flareless Tube Ferrule

0.75

0.7

0.75

Product Questions & Answers (2)

Question by: Danny O on Jun 19, 2025, 9:20 AM
got a 3/8 inch tube i need to make a flareless connection on, this the right ferrule for that?
Answer by: Customer Support on Jun 21, 2025, 6:06 AM
For a 3/8-inch tube, yes, that's exactly what this ferrule is built around. The B dimension on this part is 0.38 inches, so it matches up with your tube size. Just make sure your tubing isn't harder than Rockwell B65, and note that stainless steel tubing isn't approved for use with this ferrule. Cut the tube square within plus or minus one degree, deburr inside and out, lube the mating surfaces, and you're good to go with assembly.
Question by: Neal R on Dec 14, 2025, 6:21 PM
got a stick of 3/8 tube im trying to hook up, is this ferrule the right size for it
Answer by: Customer Support on Dec 15, 2025, 6:27 PM
For 0.38 inch tubing, this ferrule is the intended match. It is a Versil Flareless Tube Ferrule made specifically for 0.38 inch tube size in the FF9605 series.
