Viton Bonded Seal

Description & Features

The Viton Bonded Seal provides a reliable sealing solution for various industrial applications. Constructed with a steel Adaptall material, this component ensures durability and long-lasting performance.

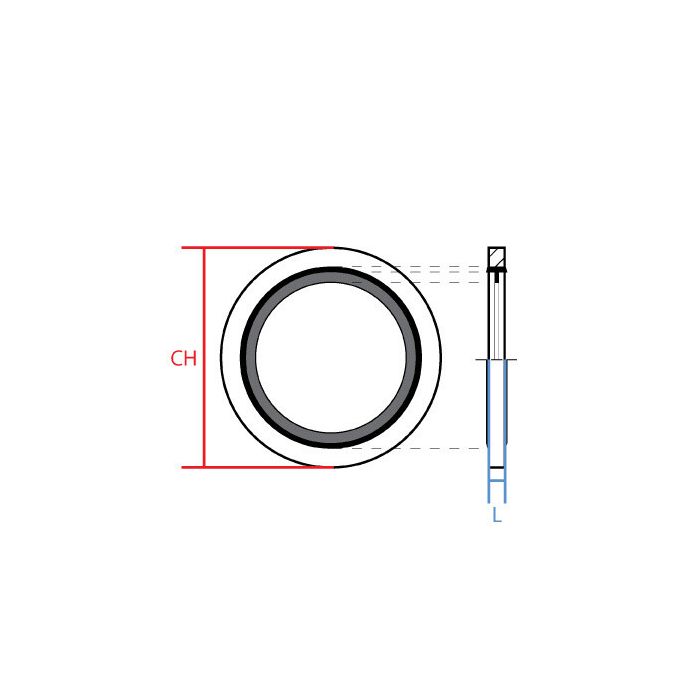

This bonded seal features a G 1/8 - 28 Adaptall Side 1 callout and a 1/8" Adaptall Side 1 size, conforming to Bspp standards. It measures 16mm in Adaptall Ch Width and 2mm in Adaptall L Length.

SKU: 9500-02V

Supplier Part Number (MPN): 9500-02V

Specifications

CH Width 16mm	L Length 2mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout G 1/8 - 28	Side 1 Gender -	Side 1 Size 1/8"	Side 1 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9500-02V	Product Weight 0.01 lbs

Product Questions & Answers (1)

Question by: Bonnie M on Aug 31, 2025, 6:10 AM

trying to match up a seal i’ve got, what thread and size is this one supposed to fit?

Answer by: Customer Support on Sep 1, 2025, 6:44 AM

It is called out for a G 1/8 - 28 connection with a 1/8 inch size, and the side 1 type is BSPP.
