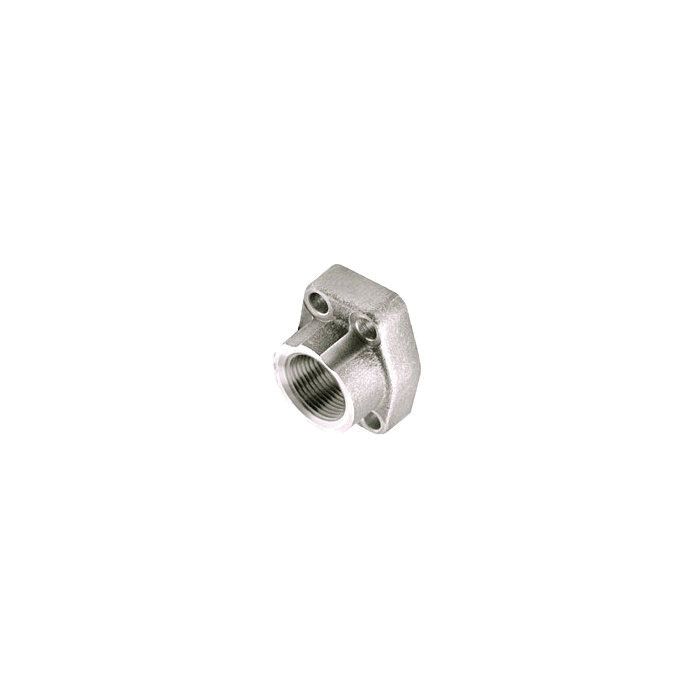

ANCHOR SAE 4-Bolt Flange

Description & Features

This Anchor Fluid Power SAE 4-Bolt Flange provides a secure and reliable connection for hydraulic systems.

This Anchor SAE 4-Bolt Flange is also known under alternate part numbers C1DS94 and C1KY81.

SKU: W43-48-48U

Supplier Part Number (MPN): W43-48-48U

Alternate Part Numbers: C1DS94, C1KY81, W43-48-48U-CB

Specifications

Brand
ANCHOR FLUID POWER
Connection Size 1
3 in
Connection Size 2
3 in
Connection Type
Flanged, NPT
Connection Type 1
SAE Code 61 O-ring Flange
Connection Type 2
NPTF
Dimensions
4.88 in L x 1.97 in W x 5.28 in H
Fitting Type
Flange
Material
Steel
Material Construction
Carbon Steel
Series
W Series
Thread Size
3-8

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel 4-Bolt Flange Adapter, 0.75 Inch Code 61 Flange, O-Ring Half To 0.75 Inch Female NPT, Straight with Counterbore

W43-12-12U Steel Code 61 To Female NPT Adapter

3/4 in

3/4 in

3/4-14

Steel 4-Bolt Flange Adapter, 1.25 Inch Code 61 Flange, O-Ring Half To 1.25 Inch Female NPT, Straight with Counterbore

W43-20-20U Steel Code 61 To Female NPT Adapter

1-1/4 in

1-1/4 in

1-1/4-11-1/2

Steel 4-Bolt Flange Adapter, 2.00 Inch Code 61 Flange, O-Ring Half To 2.00 Inch Female NPT, Straight with Counterbore

W43-32-32U Steel Code 61 To Female NPT Adapter

2 in

2 in

2-11-1/2

Steel 4-Bolt Flange Adapter, 1.00 Inch Code 61 Flange, O-Ring Half To 1.00 Inch Female NPT, Straight with Counterbore

W43-16-16U Steel Code 61 To Female NPT Adapter

1 in

1 in

1-11-1/2

Steel 4-Bolt Flange Adapter, 1.50 Inch Code 61 Flange, O-Ring Half To 1.50 Inch Female NPT, Straight with Counterbore

W43-24-24U Steel Code 61 To Female NPT Adapter

1-1/2 in

1-1/2 in

1-1/2-11-1/2

Anchor Flange 4-Bolt Flange Kit

W43-40-40U

2-1/2 in

2-1/2 in

2-1/2-8

Product Questions & Answers (3)

Question by: Steve H on Feb 27, 2026, 9:29 PM
what exactly is this flange used for, like what kind of setup would it go on?
Answer by: Customer Support on Mar 1, 2026, 6:39 AM
SAE 4-bolt flanges are used to connect hydraulic hoses or lines to pumps, motors, valves, and other hydraulic components. The 4-bolt pattern locks the connection down tight and handles the pressure that standard threaded fittings sometimes can't. It's a real common configuration on mobile equipment and industrial hydraulic systems where you need a solid, leak-resistant joint that won't back off under vibration.
Question by: Carl R on Sep 8, 2025, 10:25 AM
Will this flange work for a standard SAE 4-bolt connection?
Answer by: Customer Support on Sep 9, 2025, 9:53 PM
It's designed to fit any standard SAE 4-bolt pattern. Just make sure the size matches your requirements.
Question by: Earl P on Mar 26, 2025, 8:17 AM
got a quick one, what exactly is this Anchor SAE 4-bolt flange part used for
Answer by: Customer Support on Mar 28, 2025, 6:00 AM
In hydraulic hydraulic connections, an SAE 4-bolt flange is the style of flange connection used to bolt a line or component up to a matching 4-bolt port. This one is an Anchor Fluid Power SAE 4-bolt flange, sold under part number W43-48-48U.
