main product photo

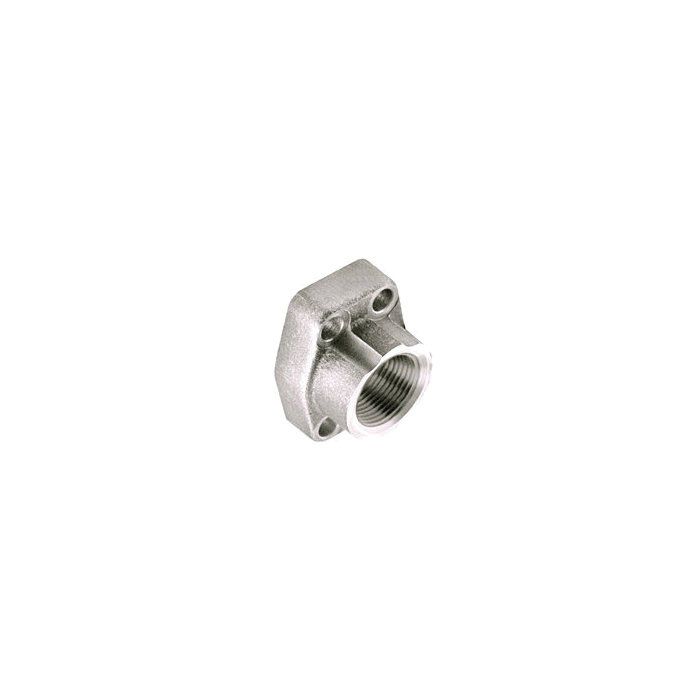

ANCHOR CD62 FLG X -16FSAE

Ask A Question

Description & Features

Designed for use in hydraulic tube and hose assemblies, the Anchor Fluid Power CD62 Flg x -16 FSAE is a Code 62 flange fitting configured with a -16 SAE O-ring face seal (FSAE) connection. Code 62 flange fittings are commonly used in high-pressure hydraulic systems where a secure, leak-resistant connection is required at larger port sizes.

Manufactured under the Anchor Fluid Power brand, this fitting suits applications where a flange-to-FSAE transition is needed. The -16 sizing indicates compatibility with 1-inch nominal hydraulic line sizes, making it appropriate for mid-to-large flow hydraulic circuits in industrial and mobile equipment.

SKU: W48-16-16U

Supplier Part Number (MPN): W48-16-16U

Specifications

Brand
ANCHOR FLUID POWER
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Flanged, SAE Threaded
Connection Type 1
SAE Code 62 O-ring Flange
Connection Type 2
SAE Threaded
Dimensions
2.56 in L x 1.65 in W x 1.002 in H
Fitting Type
Flange
Material
Steel
Material Construction
Steel
Series
W Series
Thread Size
1-5/16-12

Product Questions & Answers (1)

Question by: Chad H on Jan 29, 2026, 5:06 PM
Will this here fitting work with a regular one-inch hydraulic hose? I'm not seeing that specified plain as day.
Answer by: Customer Support on Jan 31, 2026, 6:56 AM
This fitting uses a -16 SAE O-ring face seal (FSAE) connection, which corresponds to a 1-inch nominal hydraulic line size.
