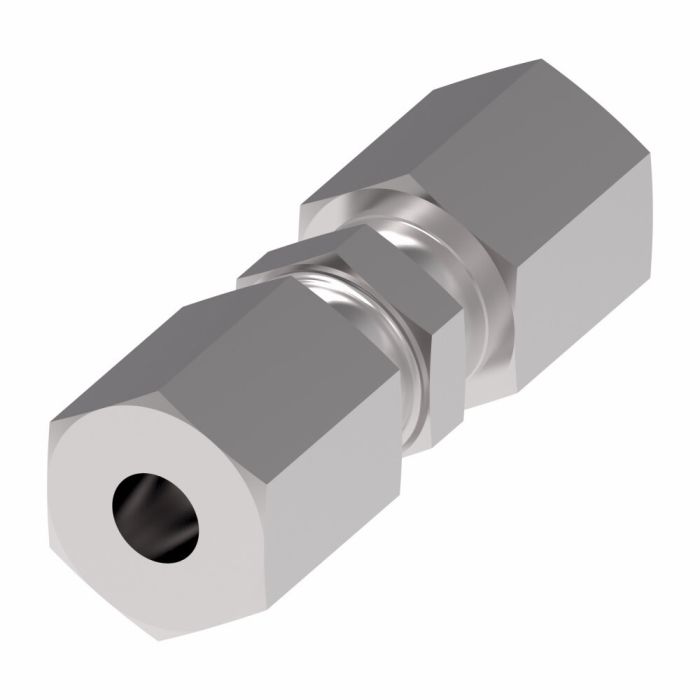

Danfoss / Eaton -Union 22L ASSY

Description & Features

Constructed from carbon steel, the Danfoss / Eaton -Union 22L ASSY is a tube-to-tube union fitting designed for line and hose connections in demanding industrial environments. As part of the Waltech product line under the Aeroquip brand, it delivers reliable performance across a wide range of hydraulic and fluid transfer applications where consistent, secure tube unions are required.

Available in both metric and imperial sizes, this union fitting is built to withstand varied environmental conditions while helping reduce maintenance demands through integrated corrosion protection. The 22L designation reflects its metric tube sizing, and the assembly format supports straightforward installation in space-constrained systems. With a product width of 1.42 inches and a hex size of approximately 0.71, it is suited for use where standardized, durable fittings are needed to maintain uptime in critical fluid circuits.

SKU: WAL373368

Supplier Part Number (MPN): WAL373368

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
L22
Connection Size 2
22 mm
Connection Type
Tube
Connection Type 1
24 deg Tube
Connection Type 2
24 deg Tube
Finish
Guardian Seal™ Plated
Fitting Type
Connector
Hex Size
32 mm, 36 mm
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
C
Series
L Series
Thread Size
M30x2

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Hex Size Maximum Operating Pressure Price Action
Steel Metric Flareless Fitting, 6.00 mm S Series Union

WAL037853 Steel Metric Flareless Union

6 mm

24 deg Tube

6 mm

M14x1.5

14 mm

Steel Metric Flareless Fitting, 20.00 mm S Series Union

WAL037859 Steel Metric Flareless Union

20 mm

24 deg Tube

20 mm

M30x2

32 mm

Steel Metric Flareless Fitting, 25.00 mm S Series Union

WAL037860 Steel Metric Flareless Union

S25

Tube

S25

Steel Metric Flareless Fitting, 10.00 mm L Series Union

WAL037850 Steel Metric Flareless Union

24 deg Tube

10 mm

M16x1.5

17 mm

500 psi

Steel Metric Flareless Fitting, 18.00 mm L Series Union

WAL373367 Steel Metric Flareless Union

18 mm

24 deg Tube

18 mm

M26x1.5

Steel Metric Flareless Fitting, 15.00 mm L Series Union

WAL373366 Steel Metric Flareless Union

L15

24 deg Tube

15 mm

M22x1.5

Steel Metric Flareless Fitting, 6.00 mm L Series Union

WAL037848 Steel Metric Flareless Union

6 mm

24 deg Tube

6 mm

M12x1.5

12 mm

500 psi

Steel Metric Flareless Fitting, 12.00 mm S Series Union

WAL037856 Steel Metric Flareless Union

L12

24 deg Tube

12 mm

M20x1.5

22 mm

Steel Metric Flareless Fitting, 8.00 mm S Series Union

WAL037854 Steel Metric Flareless Union

8 mm

Tube

8 mm

Steel Metric Flareless Fitting, 30.00 mm S Series Union

WAL037861 Steel Metric Flareless Union

30 mm

Tube

S30

Steel Metric Flareless Fitting, 16.00 mm S Series Union

WAL037858 Steel Metric Flareless Union

S16

Tube

S16

Steel Metric Flareless Fitting, 8.00 mm L Series Union

WAL037849 Steel Metric Flareless Union

8 mm

24 deg Tube

8 mm

M14x1.5

14 mm

500 psi

Steel Metric Flareless Fitting, 10.00 mm S Series Union

WAL037855 Steel Metric Flareless Union

Tube

10 mm

Danfoss / Eaton WALTERSCHEID Union 18L Body

WAL028736

18 mm

24 deg Tube

18 mm

M26x1.5

27 mm

400 bar

Danfoss / Eaton Union 22L Body

WAL028737

L22

24 deg Tube

22 mm

M30x2

32 mm

250 psi

Danfoss / Eaton Double Connector

WAL028738

L28

24 deg Tube

M36x2

41 mm

250 psi

Danfoss / Eaton Union 42L Body

WAL028740

L42

24 deg Tube

M52x2

55 mm

250 psi

Danfoss / Eaton Union 12L Body

WAL037851

L12

24 deg Tube

12 mm

M18x1.5

19 mm

400 bar

Danfoss / Eaton Union 15L Body

WAL037852

L15

24 deg Tube

15 mm

M22x1.5

24 mm

400 bar

Danfoss / Eaton Union 38S Body

WAL037862

38S

24 deg Tube

38S

M52x2

Danfoss / Eaton Union 38S ASSY

WAL373381

38S

24 deg Tube

38S

M52x2

55 mm, 60 mm

Product Questions & Answers (1)

Question by: Dwayne B on Apr 28, 2025, 10:06 AM
What kind of environment can this union fitting handle?
Answer by: Customer Support on Apr 30, 2025, 6:03 AM
This fitting is designed to be suitable for any environment, offering increased uptime in critical use.
