DANFOSS / EATON

Ask A Question

Description & Features

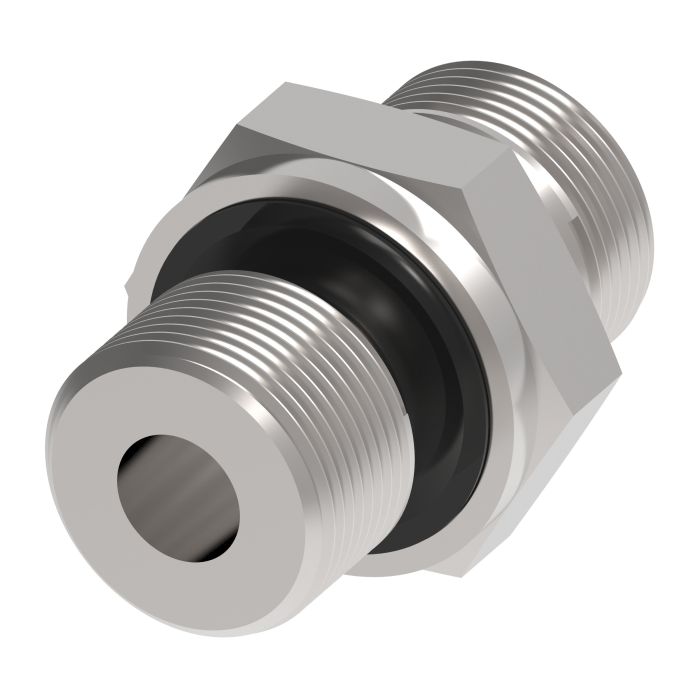

A UNF male to Metric 24 male straight adapter, this carbon steel fitting connects UNF-threaded lines to Metric 24 counterparts in a single inline configuration. The 7/16-inch (0.4375) end mates with standard UNF male threads, while the opposing end accommodates Metric 24 male connections, making it well suited for hydraulic assemblies that cross between imperial and metric thread standards.

Part of the Waltech line from Danfoss / Eaton, this adapter is built with corrosion protection to support extended service life in demanding industrial environments. The Waltech range spans both metric and imperial sizes, offering broad compatibility across a wide variety of hydraulic circuit configurations. Simplified product offerings within this line help reduce sourcing complexity without compromising application coverage.

SKU: WAL605691

Supplier Part Number (MPN): WAL605691

Specifications

Brand
Danfoss
Connection Size 1
8 mm
Connection Size 2
7/16 in
Connection Type
Male ORB, Male Tube
Connection Type 1
Male 24 deg Tube
Connection Type 2
Male ORB
Dimension Standards
DIN EN ISO 8434-1
End Gender 1
Male
End Gender 2
Male
Finish
Guardian Seal™ Plated
Fitting Type
Adapter
For Use With
Waltech Tube Connector
Hex Size
17 mm
Material
Carbon Steel
Material Construction
Carbon Steel
Series
GES UNF/UN Series
Thread Sealant
Without Thread Sealant
Thread Size
M14x1.5 x 7/16-20

Product Questions & Answers (1)

Question by: Ralph K on Jun 26, 2025, 10:17 AM
Hey, will this adapter work to hook up a metric line to something with UNF threads?
Answer by: Customer Support on Jun 28, 2025, 7:43 AM
Its purpose is to connect hydraulic lines that use different thread standards. The 7/16-inch UNF male end fits standard UNF male threads, and the other end is made for Metric 24 male connections.
