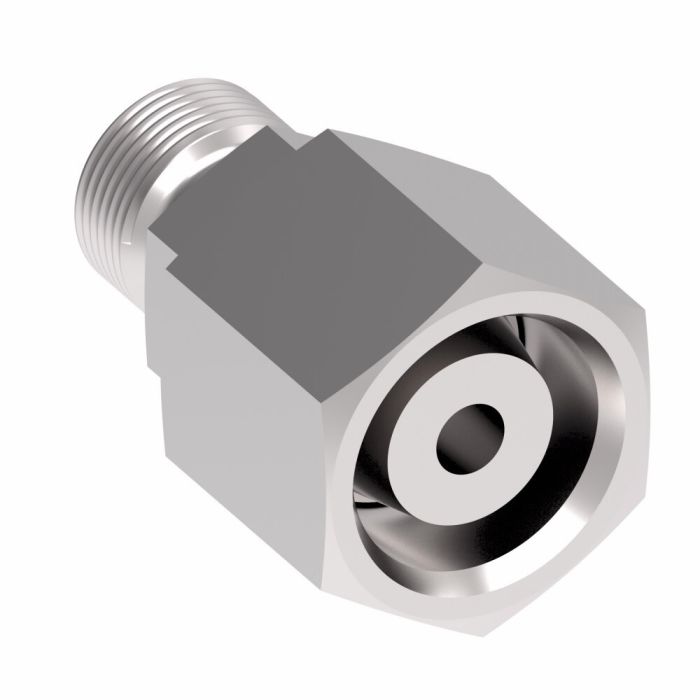

Danfoss / Eaton 30/12S Swivel RED BOD

Description & Features

This Danfoss / Eaton 30/12S Swivel RED BOD from the Waltech sub-brand is suitable for use in any environment and offers a wide range of styles to choose from. A simplified design provides increased uptime and reduces maintenance costs with corrosion protection.

This Aeroquip bushing adapter has a width of 1.97 inches and a tube ID of 2.1167 inches.

SKU: WAL619106

Supplier Part Number (MPN): WAL619106

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 30 mm	Connection Size 2 12 mm	Connection Type Tube, DKO Swivel	Connection Type 1 DKO 24 deg Swivel	Connection Type 2 24 deg Tube	Fitting Type Reducer	Hex Size 41 mm, 50 mm	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material NBR	Segment Code C	Series S Series	Thread Size M42x2, M20x1.5

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size	Maximum Operating Pressure
WAL619104	30 mm	8 mm	M42x2, M16x1.5	41 mm, 50 mm
WAL619108	30 mm	S16	M42x2, M24x1.5	41 mm, 50 mm
WAL619109	30 mm	20 mm	M42x2, M30x2	41 mm, 50 mm
WAL619110	30 mm	S25	M42x2, M36x2	41 mm, 50 mm
WAL619112	38S	8 mm	M52x2, M16x1.5	50 mm, 60 mm	400 bar
WAL619114	38S	12 mm	M52x2, M20x1.5	50 mm, 60 mm	400 bar
WAL619117	38S	20 mm	M52x2, M30x2	50 mm, 60 mm	400 bar
WAL619118	38S	S25	M52x2, M36x2	50 mm, 60 mm	400 bar
WAL619119	38S	S30	M52x2, M42x2	50 mm, 60 mm	400 bar

Product Questions & Answers (1)

Question by: Dean R on Feb 13, 2026, 6:04 AM

Reckon this swivel fitting would hold up okay in a hydraulic system that sees a fair bit of vibration?

Answer by: Customer Support on Feb 15, 2026, 6:47 AM

Suitable for any environment, this Waltech swivel is built to withstand typical operational stresses. The simplified design aims for increased uptime, so vibration shouldn't be a major concern.
