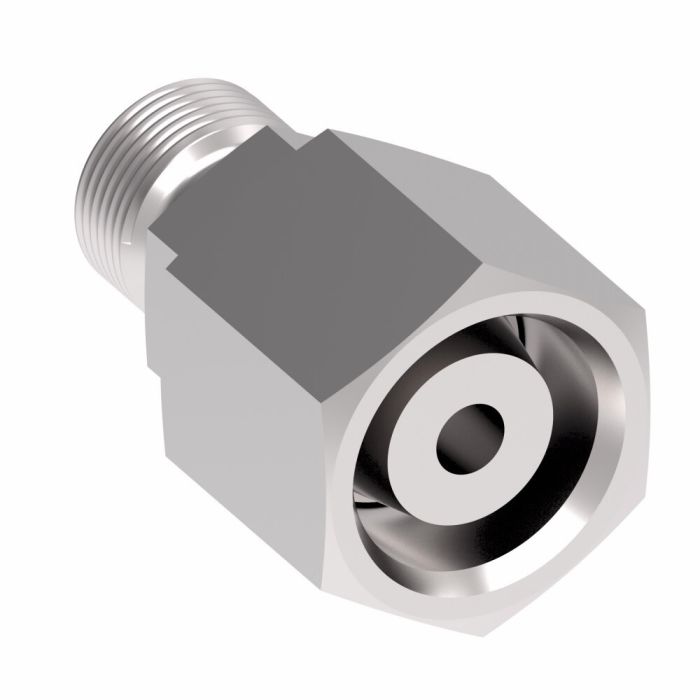

main product photo

Danfoss / Eaton 30/16S Swivel RED BOD

Ask A Question

Description & Features

A swivel-style tube fitting from the Waltech line under the Aeroquip brand, the Danfoss / Eaton 30/16S Swivel RED BOD is designed for use in demanding hydraulic systems where reliable, leak-resistant connections are required. The swivel configuration allows for rotational adjustment during installation, reducing stress on connected lines and accommodating directional variances in tube routing.

Built to suit a wide range of industrial environments, this fitting is available in both metric and imperial sizes, offering flexibility across different system configurations. Corrosion protection is incorporated into the construction, supporting extended service life and reduced maintenance intervals in critical hydraulic circuits. The 1.5875 mm tube ID is reflected in the fitting's sizing designation, and the overall product width measures 1.97 units as specified.

SKU: WAL619108

Supplier Part Number (MPN): WAL619108

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
30 mm
Connection Size 2
S16
Connection Type
Tube, DKO Swivel
Connection Type 1
DKO 24 deg Swivel
Connection Type 2
24 deg Tube
Fitting Type
Reducer
Hex Size
41 mm, 50 mm
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
NBR
Segment Code
C
Series
S Series
Thread Size
M42x2, M24x1.5

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Maximum Operating Pressure Price Action
Danfoss / Eaton 30/8S Swivel RED Body

WAL619104

30 mm

8 mm

M42x2, M16x1.5

41 mm, 50 mm

Danfoss / Eaton 30/12S Swivel RED BOD

WAL619106

30 mm

12 mm

M42x2, M20x1.5

41 mm, 50 mm

Danfoss / Eaton 30/20S Swivel RED BOD

WAL619109

30 mm

20 mm

M42x2, M30x2

41 mm, 50 mm

Danfoss / Eaton 30/25S Swivel RED BOD

WAL619110

30 mm

S25

M42x2, M36x2

41 mm, 50 mm

Danfoss / Eaton 38/8S Swivel RED Body

WAL619112

38S

8 mm

M52x2, M16x1.5

50 mm, 60 mm

400 bar

Danfoss / Eaton 38/12S Swivel RED BOD

WAL619114

38S

12 mm

M52x2, M20x1.5

50 mm, 60 mm

400 bar

Danfoss / Eaton 38/20S Swivel RED BOD

WAL619117

38S

20 mm

M52x2, M30x2

50 mm, 60 mm

400 bar

Danfoss / Eaton 38/25S Swivel RED BOD

WAL619118

38S

S25

M52x2, M36x2

50 mm, 60 mm

400 bar

Danfoss / Eaton 38/30S Swivel RED BOD

WAL619119

38S

S30

M52x2, M42x2

50 mm, 60 mm

400 bar

Product Questions & Answers (1)

Question by: Tammy B on Sep 28, 2025, 12:01 PM
So this fitting swivels, right? Does that make it easier to line things up when you're putting it together?
Answer by: Customer Support on Sep 30, 2025, 6:30 AM
Absolutely. The swivel design lets you rotate the fitting during installation. This can really cut down on stress on the lines and help you deal with any angle differences in your setup.
