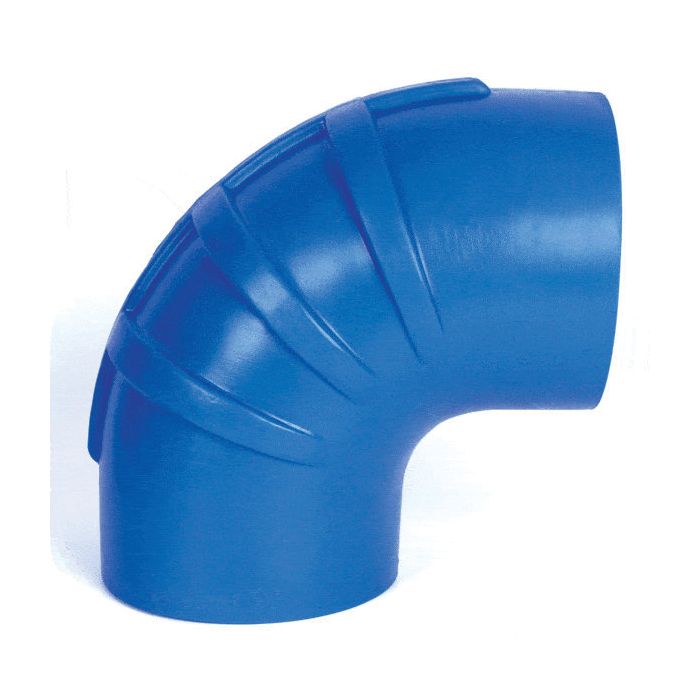

Wet Exhaust 90° Elbow, Molded VHT Blue Silicone 350°F, 3.00 Inch ID, Inch Clampable OD

Ask A Question

Description & Features

This Trident Marine Systems wet exhaust elbow provides a 90° connection in marine wet exhaust systems. Constructed from molded VHT blue silicone, it withstands temperatures up to 350°F.

Designed with a 3.00 inch inner diameter and a clampable outer diameter, this wet exhaust 90° elbow offers flexibility and reduces engine back pressure. Its heavy-wall construction ensures durability and compliance with ABYC, NMMA, and ISO exhaust standards. The smooth interior surface enhances engine performance, while the silicone material provides heat and aging resistance.

SKU: 290V3000SS

Supplier Part Number (MPN): 290V3000-S/S

Alternate Part Numbers: C1FT57

Specifications

Brand
TRIDENT MARINE SYSTEMS
Cover Material
EDPM/Silicone
Hose Color
Blue
Inside Diameter
3 in
Nominal Size
#03
Resistance Properties
Ozone, Salt Water, Diesel Fumes and Splash, Cold, Heat
Series
290V Series
Sg Installation
Do not Damage or Kink, Install Far Enough Downstream from the Point of Wet Exhaust System Water Injection So That the Maximum Continuous Operating Temperature at It's Location Does not Exceed That of the Component, Install over Rigid Tubing or Pipe with R
Sg Operation
In Case of Backfire, Visually Inspect the Entire Wet Exhaust System for Damage, Leaks or Separated Connections
Tube Material
EDPM/Silicone

Similar Products

Model Number Hose I.D. Angle Construction Clampable O.D. Minimum Clampable Length Includes Temp. Rating Price Action
Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 2.00 Inch ID, Inch Clampable OD

TRL290SS Wet Exhaust Elbow

2

90°

Molded HT EPDM 250°F

1.75

Clamps

250

Wet Exhaust 45° Elbow, Molded HT EPDM 250°F, 3.00 Inch ID, Inch Clampable OD

TRL345SS Wet Exhaust Elbow

3

45°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 3.50 Inch ID, Inch Clampable OD

TRL3590SS Wet Exhaust Elbow

3.5

90°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 3.00 Inch ID, Inch Clampable OD

TRL390SS Wet Exhaust Elbow

3

90°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 4.00 Inch ID, Inch Clampable OD

TRL490SS Wet Exhaust Elbow

4

90°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 45° Elbow, Molded HT EPDM 250°F, 5.00 Inch ID, Inch Clampable OD

TRL545SS Wet Exhaust Elbow

5

45°

Molded HT EPDM 250°F

1.62

Clamps

250

Product Questions & Answers (3)

Question by: Chad W on May 27, 2025, 11:04 AM
got a 3 inch wet exhaust run and need a 90 to make the turn, is this elbow the right size and does it come with clamps?
Answer by: Customer Support on May 29, 2025, 6:10 AM
It is a molded 90 degree elbow with a 3.00 inch hose ID. Clamps are included, and you will want at least 1.5 inches of straight length available at each end for clamping.
Question by: Carl R on Dec 31, 2025, 1:57 PM
clamps included with this or do I need to order them separate?
Answer by: Customer Support on Jan 1, 2026, 6:16 PM
Clamps come with it. Each end needs a minimum of two stainless steel clamps at least half an inch wide, and the hardware is already bundled in. For best results, Trident recommends 3/4 inch wide T-Bolt clamps or 5/8 inch wide Constant Torque clamps, so what's included should get you set up without a separate order.
Question by: Dale B on Jun 12, 2025, 7:08 PM
How hot can this elbow handle? I'm running a pretty high-temp setup.
Answer by: Customer Support on Jun 14, 2025, 6:13 AM
This molded silicone elbow is good for continuous use up to 350°F.
