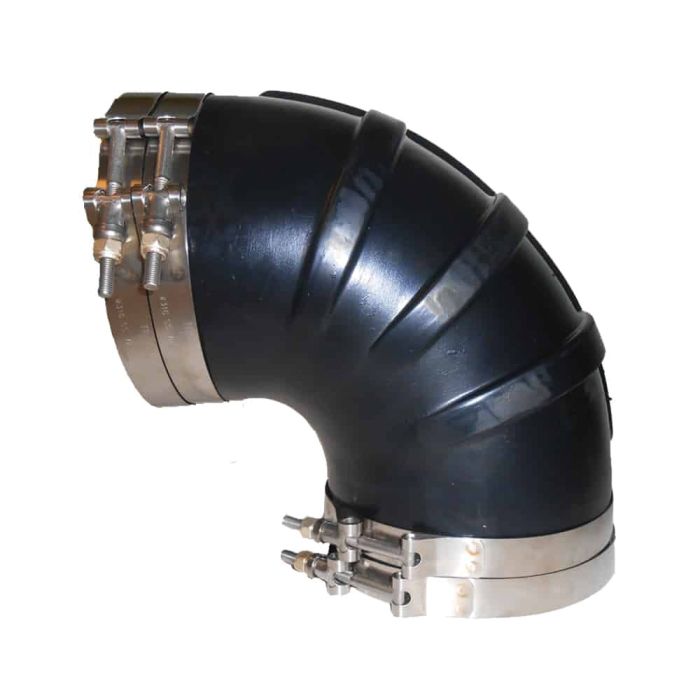

main product photo

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 2.00 Inch ID, Inch Clampable OD

Ask A Question

Description & Features

Engineered for marine wet exhaust systems this elbow provides optimal flexibility for misalignment and movement. The molded HT EPDM construction ensures maximum heat resistance up to 250F. With a 2.00 inch ID and a clampable exterior it effectively minimizes back pressure and noise levels.

Compliant with ABYC NMMA and ISO (draft) exhaust standards its heavy-wall EPDM construction guarantees enhanced tolerance to engine vibration and a long lifespan. The smooth interior surfaces are designed to reduce engine back pressure boosting performance.

This TRIDENT TRL90 2 ID EPDM BLACK HT WET EXH includes clamps and requires a minimum clampable length of 1.75 inches for secure installations. The EPDM rubber formulation offers a high tolerance for aging providing a sustainable solution for marine wet exhaust setups.

Proper installation involves ensuring the temperature does not exceed 250F at any point and utilizing stainless steel clamps for secure attachment. This elbow is part of the Trident Marine Systems Wet Exhaust Hose Bellows and Elbows category making it well-suited for marine environments.

MPN: C1FV18

Supplier Part Number: TRL-290-S/S

Specifications

Brand
TRIDENT MARINE SYSTEMS
Cover Material
EPDM
Hose Color
Black
Resistance Properties
Ozone, Salt Water, Diesel Fumes and Splash, Cold, Heat
Series
TRL Series
Sg Installation
Do not Damage or Kink, Install Far Enough Downstream from the Point of Wet Exhaust System Water Injection So That the Maximum Continuous Operating Temperature at It's Location Does not Exceed That of the Component, Install over Rigid Tubing or Pipe with R
Sg Operation
In Case of Backfire, Visually Inspect the Entire Wet Exhaust System for Damage, Leaks or Separated Connections
Tube Material
EDPM/Silicone

Similar Products

Model Number Hose I.D. Angle Construction Clampable O.D. Minimum Clampable Length Includes Temp. Rating Price Action
Wet Exhaust 90° Elbow, Molded VHT Blue Silicone 350°F, 3.00 Inch ID, Inch Clampable OD

290V3000SS Wet Exhaust Elbow

3

90°

Molded VHT Blue Silicone 350°F

1.5

Clamps

350

Wet Exhaust 45° Elbow, Molded HT EPDM 250°F, 3.00 Inch ID, Inch Clampable OD

TRL345SS Wet Exhaust Elbow

3

45°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 3.50 Inch ID, Inch Clampable OD

TRL3590SS Wet Exhaust Elbow

3.5

90°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 3.00 Inch ID, Inch Clampable OD

TRL390SS Wet Exhaust Elbow

3

90°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 4.00 Inch ID, Inch Clampable OD

TRL490SS Wet Exhaust Elbow

4

90°

Molded HT EPDM 250°F

1.5

Clamps

250

Wet Exhaust 45° Elbow, Molded HT EPDM 250°F, 5.00 Inch ID, Inch Clampable OD

TRL545SS Wet Exhaust Elbow

5

45°

Molded HT EPDM 250°F

1.62

Clamps

250

Product Questions & Answers (2)

Question by: Diane B on Jun 8, 2025, 10:01 AM
got a 2 inch wet exhaust run and need to make a tight 90 without fighting it, is this the right elbow?
Answer by: Customer Support on Jun 10, 2025, 6:05 AM
For a marine wet exhaust setup, it’s a molded 90 degree elbow with a 2.00 inch inside diameter and a smooth interior to help keep back pressure down. The heavy wall EPDM is made to handle misalignment, movement, and vibration that you get around an engine.
Question by: Howard C on Oct 15, 2025, 11:18 AM
What’s the heat tolerance on this elbow?
Answer by: Customer Support on Oct 16, 2025, 8:44 PM
It’s made from a high-temp EPDM rubber that can handle up to 250 degrees Fahrenheit.
