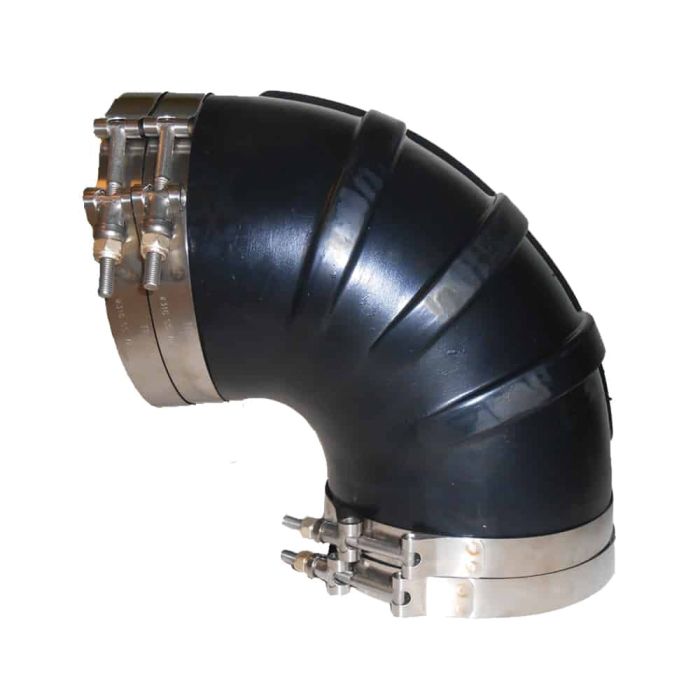

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 3.50 Inch ID, Inch Clampable OD

Description & Features

This molded 90° elbow is constructed from HT EPDM and is rated to 250°F. The TRIDENT RUBBER LLC product is suitable for marine wet exhaust applications. It provides flexibility, misalignment tolerance, and vibration dampening. The Wet Exhaust 90° Elbow features a 3.50 inch ID.

Features include heavy-wall construction, heat and aging resistance, flexibility for tight bends, and smooth interior surfaces to reduce back pressure. Installation requires a minimum clampable length of 1.5 inches and the use of stainless steel clamps. This elbow includes clamps for secure attachment.

SKU: TRL3590SS

Supplier Part Number (MPN): TRL-3590-S/S

Alternate Part Numbers: C1FV21

Specifications

Brand TRIDENT MARINE SYSTEMS	Cover Material EPDM	Hose Color Black	Resistance Properties Ozone, Salt Water, Diesel Fumes and Splash, Cold, Heat	Series TRL Series	Sg Installation Do not Damage or Kink, Install Far Enough Downstream from the Point of Wet Exhaust System Water Injection So That the Maximum Continuous Operating Temperature at It's Location Does not Exceed That of the Component, Install over Rigid Tubing or Pipe with R	Sg Operation In Case of Backfire, Visually Inspect the Entire Wet Exhaust System for Damage, Leaks or Separated Connections	Tube Material EDPM/Silicone

Similar Products

Model Number	Hose I.D.	Angle	Construction	Minimum Clampable Length	Includes	Temp. Rating
290V3000SS Wet Exhaust Elbow	3	90°	Molded VHT Blue Silicone 350°F	1.5	Clamps	350
TRL290SS Wet Exhaust Elbow	2	90°	Molded HT EPDM 250°F	1.75	Clamps	250
TRL345SS Wet Exhaust Elbow	3	45°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL390SS Wet Exhaust Elbow	3	90°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL490SS Wet Exhaust Elbow	4	90°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL545SS Wet Exhaust Elbow	5	45°	Molded HT EPDM 250°F	1.62	Clamps	250
