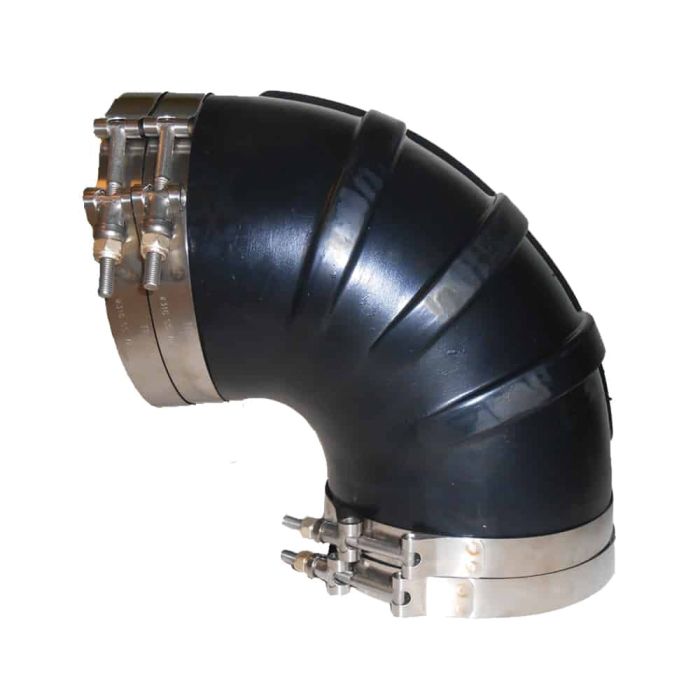

Wet Exhaust 90° Elbow, Molded HT EPDM 250°F, 4.00 Inch ID, Inch Clampable OD

Description & Features

This 90° elbow is designed for wet exhaust systems. Constructed from molded High-Temperature EPDM, this Wet Exhaust 90° Elbow offers a maximum continuous temperature rating of 250°F. It features a 4.00 inch inside diameter and a clampable outside diameter.

The marine design features heavy-wall construction for use in challenging marine exhaust applications, including compliance with ABYC, NMMA, and ISO standards. Excellent flexibility and a tight bend radius enable easier installations, solving misalignment and space issues. This elbow provides maximum absorption of engine movement, vibration, and noise for quieter performance.

SKU: TRL490SS

Supplier Part Number (MPN): TRL-490-S/S

Alternate Part Numbers: C1FV24

Specifications

Angle 90°	Construction Molded HT EPDM 250°F	Brand Trident Rubber LLC	Brand Trident Rubber	Pack Size 1.00	UOM EA	Hose I.D. 4	Includes Clamps	Minimum Clampable Length 1.50	Supplier Part Number TRL-490-S/S	Temp. Rating 250	Alternate Part Numbers Alternate Part Number C1FV24, Alternate Part Number TRL-490-S/S	Product Weight 4.00 lbs

Similar Products

Model Number	Hose I.D.	Angle	Construction	Minimum Clampable Length	Includes	Temp. Rating
290V3000SS Wet Exhaust Elbow	3	90°	Molded VHT Blue Silicone 350°F	1.5	Clamps	350
TRL290SS Wet Exhaust Elbow	2	90°	Molded HT EPDM 250°F	1.75	Clamps	250
TRL345SS Wet Exhaust Elbow	3	45°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL3590SS Wet Exhaust Elbow	3.5	90°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL390SS Wet Exhaust Elbow	3	90°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL490SS Wet Exhaust Elbow	4	90°	Molded HT EPDM 250°F	1.5	Clamps	250
TRL545SS Wet Exhaust Elbow	5	45°	Molded HT EPDM 250°F	1.62	Clamps	250

Product Questions & Answers (2)

Question by: Frank H on Apr 1, 2026, 6:38 AM

So this is just for wet exhaust, right? Can't use it for coolant?

Answer by: Customer Support on Apr 2, 2026, 4:50 PM

Correct, this elbow is molded for wet exhaust systems only. Reinforced models are available for both wet exhaust and engine coolant systems, but this particular one is specifically for exhaust.

Question by: Todd W on Jun 11, 2025, 7:22 AM

Got a 4-inch wet exhaust system on my inboard and need a 90-degree turn, will this elbow hold up to the heat comin off the engine?

Answer by: Customer Support on Jun 12, 2025, 6:20 PM

For a 4-inch wet exhaust setup, this is a solid fit. The molded HT EPDM construction carries a 250°F maximum continuous temperature rating, which covers typical wet exhaust conditions when the elbow is installed far enough downstream from the water injection point. Just make sure the actual operating temp at the install location stays within that 250°F ceiling and you're good to go.
